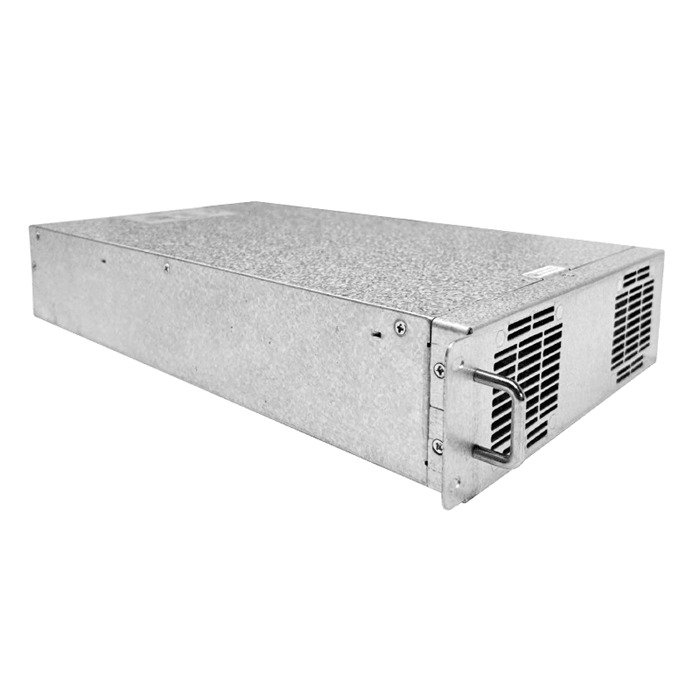

10kW 30-120Vdc Output AC/DC Power Module for E2W/E3W LEV Charging Module
Input voltage range: 260 ~ 520 VAC
Output voltage range: 30 ~ 120 VDC
Maximum input current: 20 A
Maximum output power: 10 kW
Protection rating: IP20
Product Overview
The 10kW AC/DC Power Module is a high-efficiency EV charging module specifically engineered for E2W (Electric Two-Wheeler) and E3W (Electric Three-Wheeler) LEV charging infrastructure. Featuring a wide 30-120VDC output range and 260-520VAC input, this AC DC converter delivers reliable DC power for diverse battery platforms across global grid environments. With 95% conversion efficiency, ≥0.97 power factor, and compact forced-air cooling design, it serves as the ideal core power supply for modern E2W charging solutions and E3W charging stations.
Key Features
Wide input voltage range: 260–520 VAC, compatible with diverse global grid standards.
Wide-range DC output: 30–120 VDC, covering mainstream E2W/E3W battery platforms (48V/60V/72V/96V).

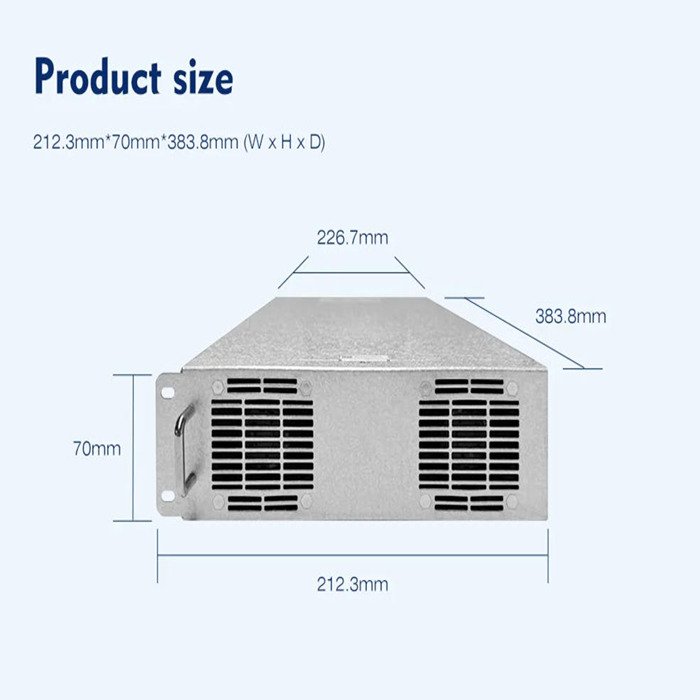

High power density: 10 kW output power, with dimensions of only 212.3 × 383.8 × 70 mm.
High efficiency and energy saving: conversion efficiency of 95%, power factor ≥0.97, THD ≤5%
Forced-air cooling design: Ensures stable, long-term operation at full load.
Lightweight: Weight <6.5 kg, easy to integrate and install.
Technical Specifications

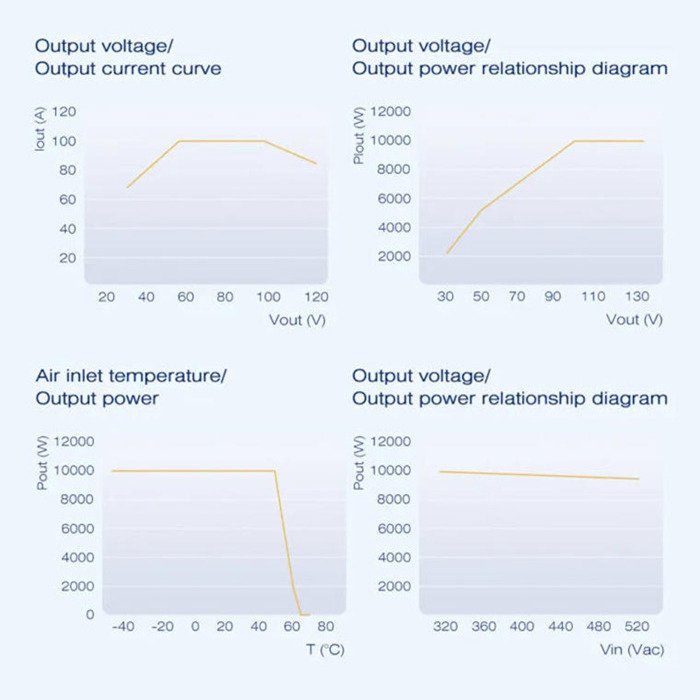

Module characteristic diagram
Applications
E2W Charging/Battery Swapping Stations
E3W Fast-Charging Units
Centralized Charging Facilities for LEVs
Core Power Modules for Residential/Commercial Charging Networks
FAQ
Q: What battery voltages does this 30-120VDC power module support?
A: The 30-120VDC output range covers all mainstream E2W/E3W battery platforms including 48V, 60V, 72V, and 96V systems.
Q: Is this AC DC converter compatible with my local grid?
A: Yes. The 260-520VAC input range accommodates 220V, 380V, and similar global grid standards.
Q: Can this EV charging module be used outdoors?
A: The IP20 rating is designed for indoor installation or enclosed charging cabinets. For direct outdoor exposure, an additional protective enclosure is recommended.
Q: What cooling requirements does this LEV charging module have?
A: The module uses forced air cooling. Ensure adequate ventilation and clearance around air intake/exhaust vents during installation.
Q: How does this module compare to other 10kW charging solutions?
A: With 95% efficiency, ≤5% THD, and <6.5kg weight, this module offers superior power density and grid compatibility compared to standard industrial power supplies.
Q: Can multiple modules be paralleled for higher power output?
A: Please contact our technical team for parallel operation configurations and system integration guidance.
