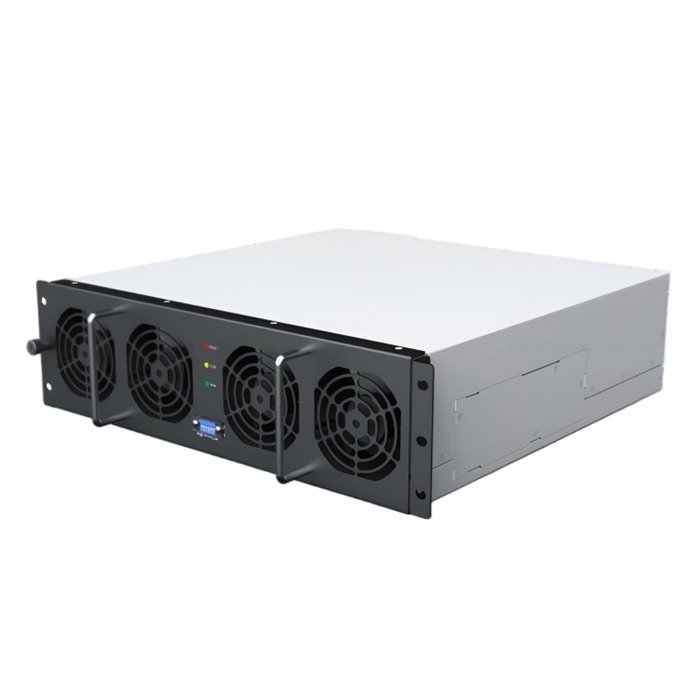

CEG1K0100G 30kW1000V DC2DC Charger Power Module

CEG1K0100G 30kW1000V DC2DC Charger Power Module

Type: CEG1K0100G
Input voltage range：300Vdc~825Vdc
Output power：30kW
Maximum output current：100A
Dimensions/weight: 110mm (height) × 385mm (width) × 390mm (depth), ≤22.5kg

Send Inquiry

Product Overview

CEG1K0100G support MPPT function to introduce solar panel DC input and the module is perfectly compatible with ACDC Rectifier Module in the size, interface and protocol.

Key Features

Full hot plug design
A Maximum of 32 modules work simultaneously Inside high frequency isolation transformer
Cover a wide range of voltage input and suits for multiple battery racks
Offer smooth and flexible energy flow among Grid, battery, vehicle, and other loads

Technical Specifications

Basic
Input Voltage Range300Vdc ~ 825Vdc
Output Voltage Range50Vdc ~ 1000Vdc, voltage adjustment step is 0.1Vdc
Constant Power Output Voltage Range300Vdc ~ 1000Vdc
Output Power30kW
Maximum Output Current100A
Dimensions110mm(H) × 385mm(W) × 390mm(D) (excluding handle and protruding parts of terminal)
DC Input
Rated Input Voltage700Vdc
Input Voltage Range300Vdc ~ 825Vdc
Maximum Input Current50A
Efficiency (Full Load)>95.5%
DC Output
Voltage Regulation Accuracy<±0.5%
Current Regulation Accuracy≤±1% (Output load 20%~100% rated range)
Current SharingUnbalance <±5%
Output Current Limit0.2~100A continuously adjustable
Output Current0~100A
Constant Power Output Voltage Range300Vdc ~ 1000Vdc
Voltage Range50Vdc ~ 1000Vdc, voltage regulation step is 0.1Vdc
Output Power30kW
Working Environment
Relative Humidity≤95%RH, non-condensing
Altitude2000m, derating required above 2000m
Cooling MethodForced air cooling
Operating Temperature-40℃ ~ +75℃, derating required above +55℃
Other Parameters
Dimensions110mm(H) × 385mm(W) × 390mm(D) (excluding handles and protruding parts of terminals)
Weight≤22.5kg
Communication MethodCAN Bus
MTBF>500,000 hours
Meeting StandardsGB/T18487, NB/T33001, NB/T33008
