Amps: 100~400A
Volts: 1250Vac/1000Vdc
Interrupting Rating: 100kA@1250Vac; 50kA@1000Vdc
Cross-section: 43x43mm(size 1*)

Send Inquiry

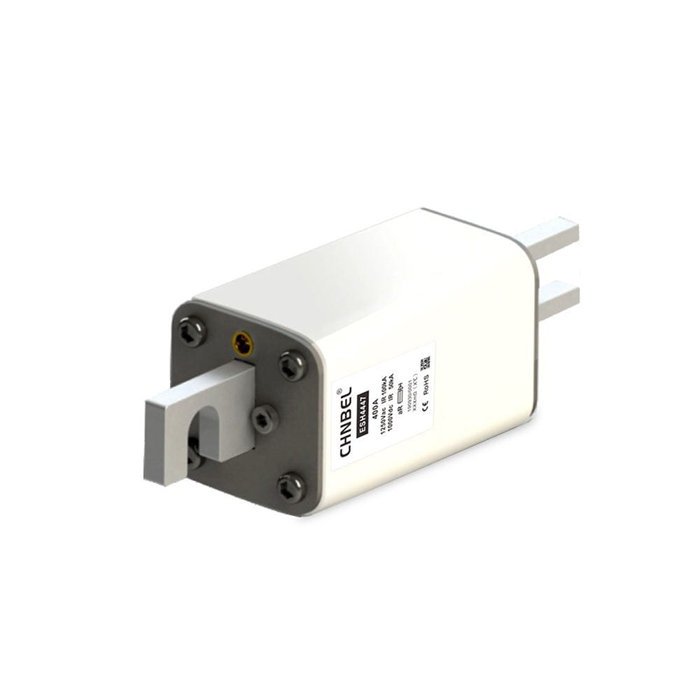

Product Overview

The ESH3068 160A square body fuse belongs to a range of semiconductor protection fuses with a cross-section dimension of 43*43mm (size 1*). Rated for 160A, this series covers a current range of 100A to 400A at operating voltages of 1250Vac and 1000Vdc. It delivers an interrupting rating of 100kA at 1250Vac and 50kA at 1000Vdc. The fuse is designed in accordance with GB13539 and IEC60269 standards. It holds CE approval, complies with RoHS regulations, and can be supplied with a REACH declaration upon request.

Catalogue Numbers

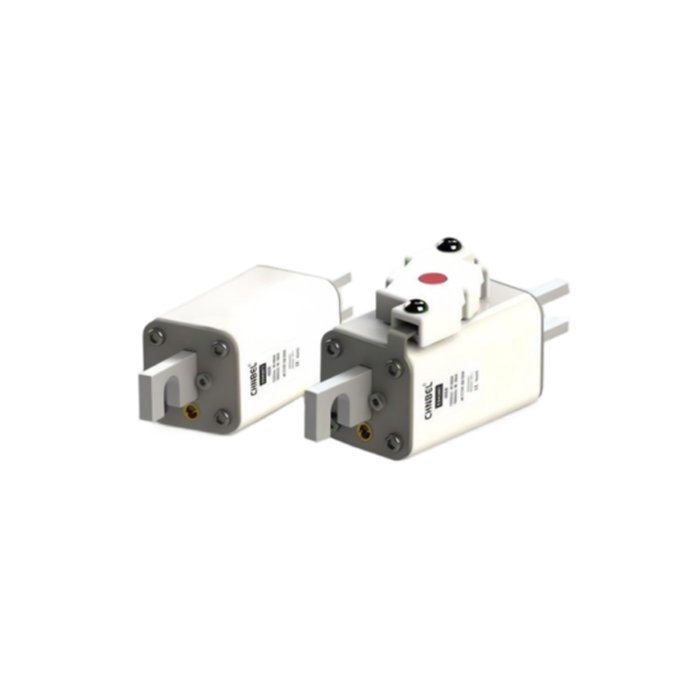

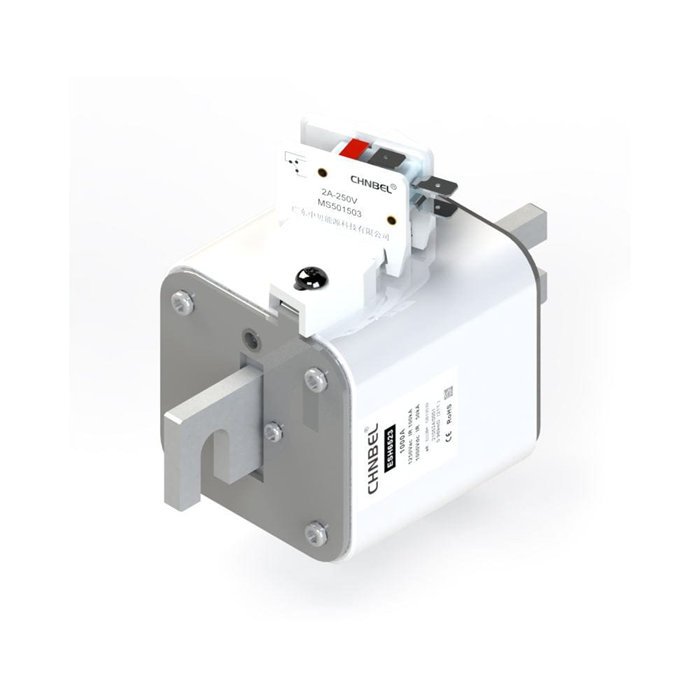

Items Catalogue Numbers Electrical Characteristics Bolt Size Installation Torque (N.m)
Without Indicator Holder With Indicator Holder Rated Current RMS-Amps (A) I²t (A²Sec) Watts Loss
Pre-arc Clearing at 1000V
1 *ESH3066 ESH3055 100 1311 6160 33 M10 24±3.0
2 *ESH3067 ESH3056 125 2048 9830 37 M10 24±3.0
3 *ESH3068 ESH3057 160 3872 18973 42 M10 24±3.0
4 *ESH3069 ESH3058 200 6272 31360 46 M10 24±3.0
5 *ESH3070 ESH3059 250 10368 52877 53 M10 24±3.0
6 *ESH3071 ESH3060 315 18432 95846 60 M10 24±3.0
7 *ESH3072 ESH3062 350 23328 123638 65 M10 24±3.0
8 ESH3073 ESH3061 400 32768 176947 71 M10 24±3.0

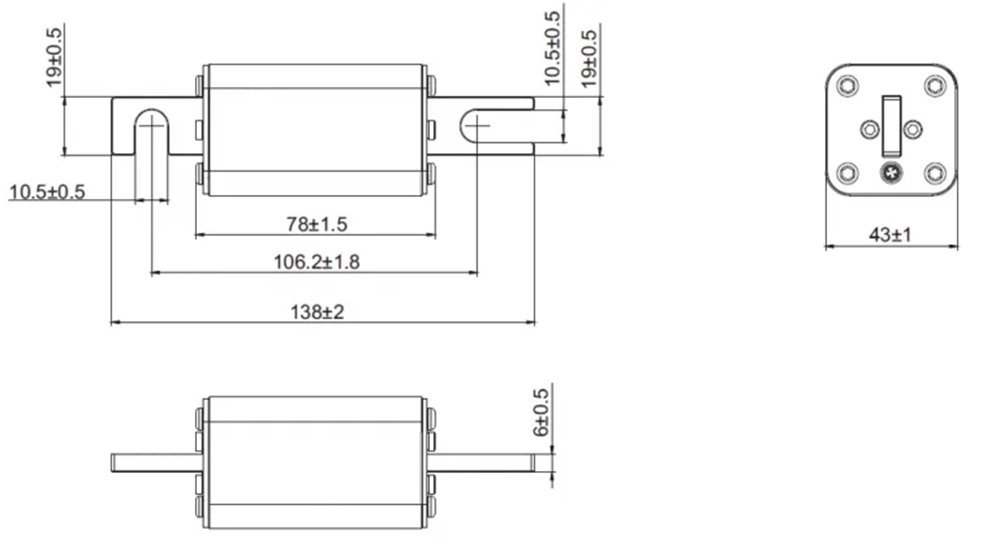

Dimensional Drawings
