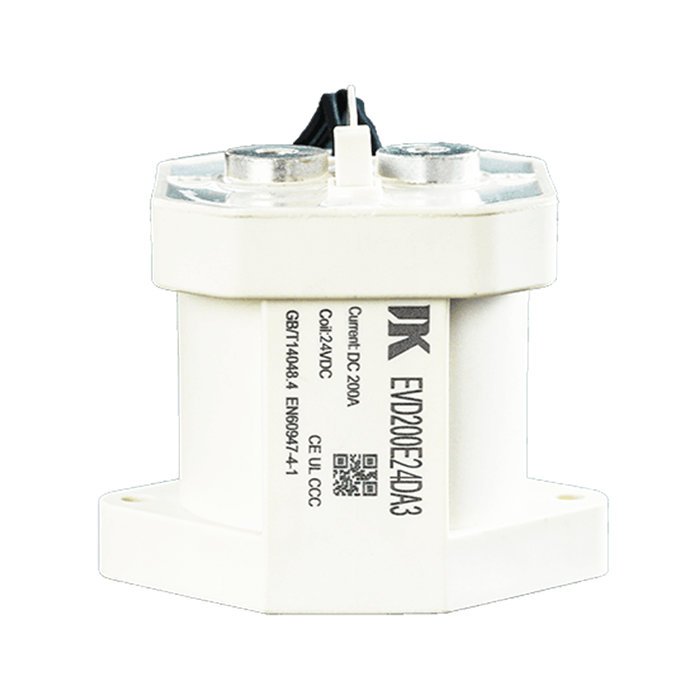

DongKe-EVD200-DC Contactor-EV/ESS

Voltage Rating: 12-1500Vdc
Current Rating: 200A
Main Contact Mounting: M8 External thread
Dimensions: 80.5×66.6×73.8mm
Operating Temperature: -40～+85℃

Send Inquiry

Technical Specifications

Contact Arrangement	SPST-NO
Auxiliary Contact	SPST-NO（optional）,≤100mΩ
Voltage Rating	12-1500Vdc
Current Rating	150A
Coil Voltage	12V dc	24V dc	48V dc
Coil Power	≈5.76W	≈5.76W	≈5.76W
Main Contact Mounting	M8 External thread
Dimensions	80.5×66.6×73.8mm
Weight	≈430g
Operating Temperature	-40～+85℃
Altitude	≤4000m
