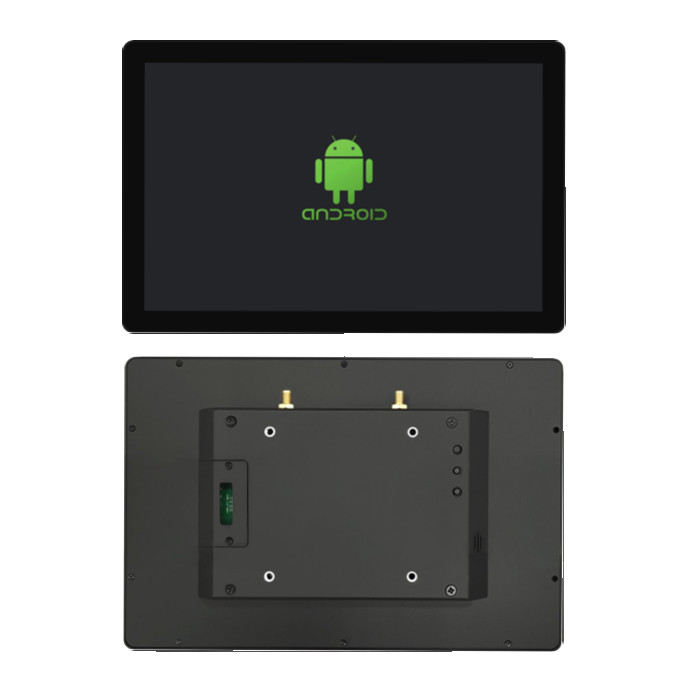

10.1inch 1280×800 300nit Touch LCD Display Module DMG12800C101_A1WTC

作者：/
10.1inch 1280×800 300nit Touch LCD Display Module DMG12800C101_A1WTC

10.1inch 1280×800 300nit Touch LCD Display Module DMG12800C101_A1WTC

Model: DMG12800C101_A1WTC
Size: 10.1 inch
Resolution: 1280×800
Brightness: 300nit
Touch Type: Capacitivetouch panel

Send Inquiry

Key Features

10.1 Inch, IPS screen, capacitive touch screen, high brightness.
With HD/VGA interface on board.
Anti-UV & Anti-glare, explosion-proof(cover)-IK08.
Transiting high-resolution video and multi-channel audio data in digital form while maintaining high-quality.

System Hardware

Motherboard LevelCommercial-grade
CPURK3566, Quad-core ARM Cortex-A55 1.8GHz Processor
OSAndroid 11
RAM2Gbytes LPDDR4
Storage8Gbytes eMMC

Display Parameters

Size10.1 inch
LCD TypeIPS, TFT LCD
Viewing Angle85°/85°/85°/85°
Viewing Area (VA)216.58mm(W)×135.36mm (H)
Resolution1280×800
Backlight Service Life>20000Hrs
Brightness300nit

Touch Parameter

Touch TypeCapacitive touch panel
TP StructureG+G structure with tempered glass surface, the bonding of the TFT LCD to the touch panel with OCA process.

Power Voltage

Min12.0V
Type12.0V
Max36.0V
Recommended power supply12V 1A DC

Peripheral and Interfaces

User Interface8Pin_2.0mm socket*1
Power Interface2Pin_2.0mm interface*1
COMRS232*1(COM5), TTL*1 (COM0)
Ethernet Interface6Pin_1.25mm interface*1, 10/100Mbps
USBUSB *2 (HOST), Type C*1(OTG)
SD CardMax 64G
Wi-FiIEEE 802.11a/b/g/n/ac/ax, 2.4GHz /5GHz,Wi-Fi 6 and backward compatibility
Bluetooth VersionBT5.2
RTCAccuracy: ±20ppm @25℃
Speaker2Pin_1.25mm interface*1
KeysRecovery, Power, Mute

Structural Diagram
