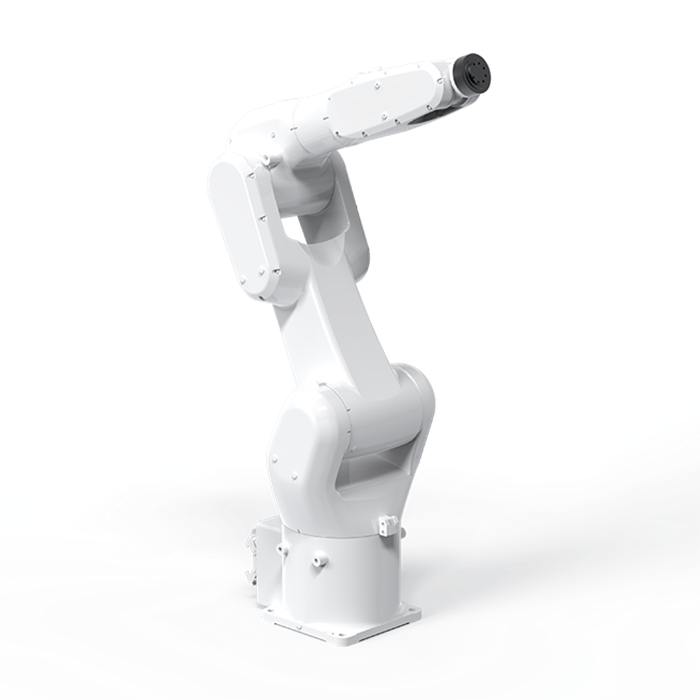

10kg Payload 1100mm Reach 6 Axis Industrial Robot Arm
Model: ER10-1100
Controlled axes: 6Axes
Max. payload on wrist: 10kg
Repeatability: ±0.025mm
Robot weight: 78kg
Reach: 1142mm
Product Introduction
The ER10-1100 combines a 10kg payload capacity with an 1100mm working reach, providing a versatile solution for general industrial automation applications.
Compared with shorter-reach models, the 1142mm arm length offers greater workspace coverage while maintaining strong handling performance.
This model is suitable for factories that need a flexible robot arm capable of handling medium-weight components across a larger working area.
Key Features
10kg Payload with Extended Reach: The combination of 10kg load capacity and 1142mm reach provides a strong balance between handling ability and operational range.
Versatile Industrial Application: The configuration fits a wide range of automation scenarios, making it suitable for different production processes.
Wider Working Area: The extended reach improves accessibility when handling parts positioned at different locations within a workstation.
Stable Automation Performance: Designed for repetitive industrial operations requiring consistent movement and reliable performance.
Technical Specifications

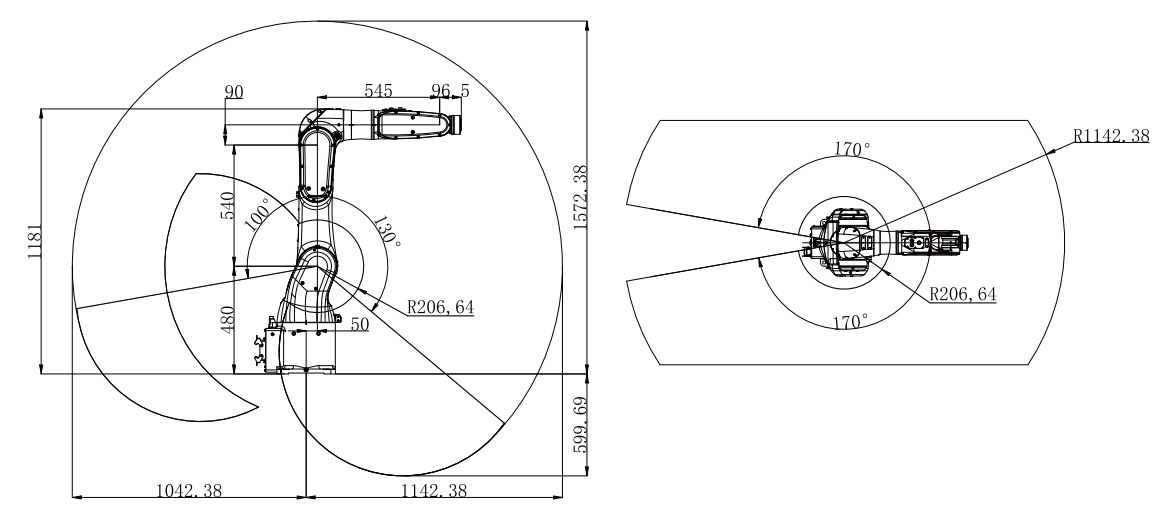

Operating Space

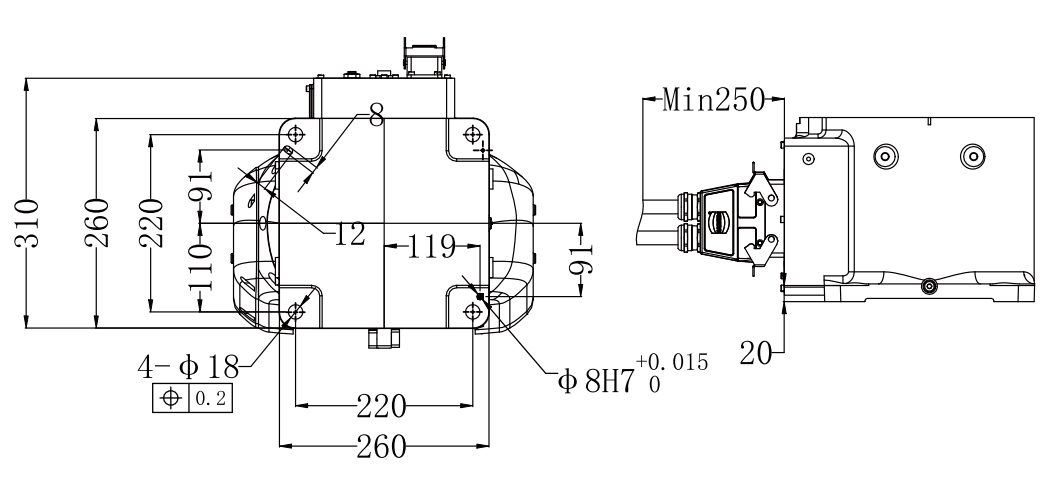

Base Mounting Size

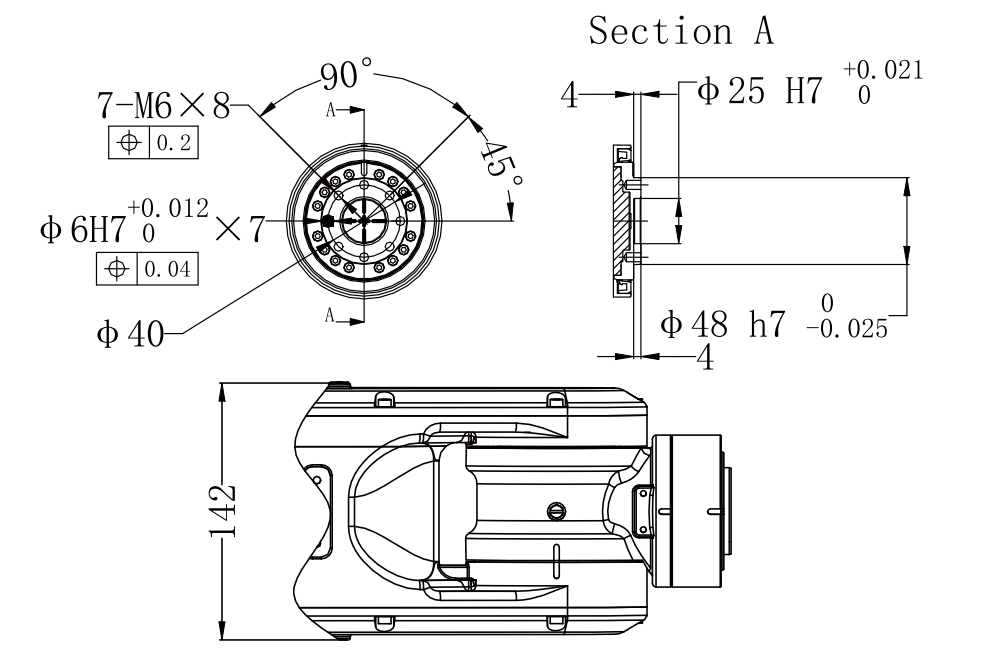

End Flange Mounting Size
Application Scenarios
It can be applied to various scenarios such as material handling (machine tool loading/unloading), sorting, assembly, grinding, polishing, and arc welding. It is suitable for industries including PCB, electronics manufacturing, rubber and plastics, and metal products.
