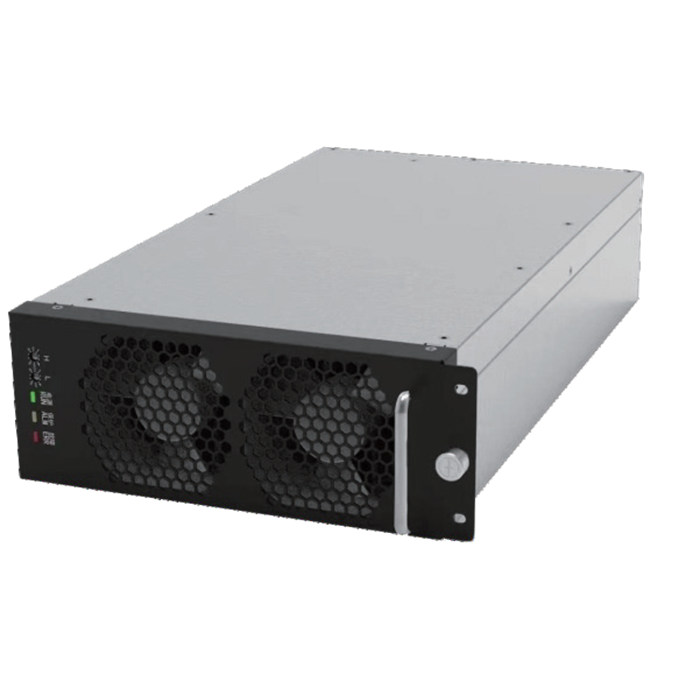

14 kW New Energy Charging Module LM-60-14000

Model: LM-60-14000
Output Voltage: 20-60Vdc
Input Voltage: 380/480Vac
Constant Output Power: 14kW
Dimension (W*D*H): 214mm × 84mm × 396mm
Weight: 7kg

Send Inquiry

Key Features

High efficiency, high power density
DSP digital control
Low input harmonics
Wide operating temperature range
Supports hot-swapping and parallel operation
Comprehensive fault detection and alerts
Tri-proof protection

Technical Specifications

Technical Specifications
Category	Item	Specification
DC Output	Model	LM60-14000
	Rated Output Power	14 kW
	Rated Output Current	220 A
	Output Voltage Range	20–60 VDC
	Efficiency	≥95%
AC Input	Nominal Input Voltage	Three-phase 380 VAC / 480 VAC
	Input Voltage Range	323–520 VAC (Full Load) 323–260 VAC (Derated Output)
	Input Current	<＜40A
	Frequency	45–65 Hz
	Power Factor (PF)	≥0.99
Environmental Conditions	Operating Temperature	−40°C to +50°C (Full Output) +50°C to +70°C (Derated Output)
	Storage Temperature	−40°C to +75°C
	Relative Humidity	0–95% RH
	Altitude	2000m full load output
Reliability	MTBF	>120,000 Hours
Dimensions & Weight	Dimensions (W × H × D)	214 × 84 × 396 mm (excluding handle and terminals)
Dimensions & Weight	Weight	7 kg
Communication	Communication Interface	CAN
Cooling	Cooling Method	Forced Air Cooling

Application Scenarios

Logistics forklift charging
Automation devices
Aging equipment
Industrial control
Instrumentation
