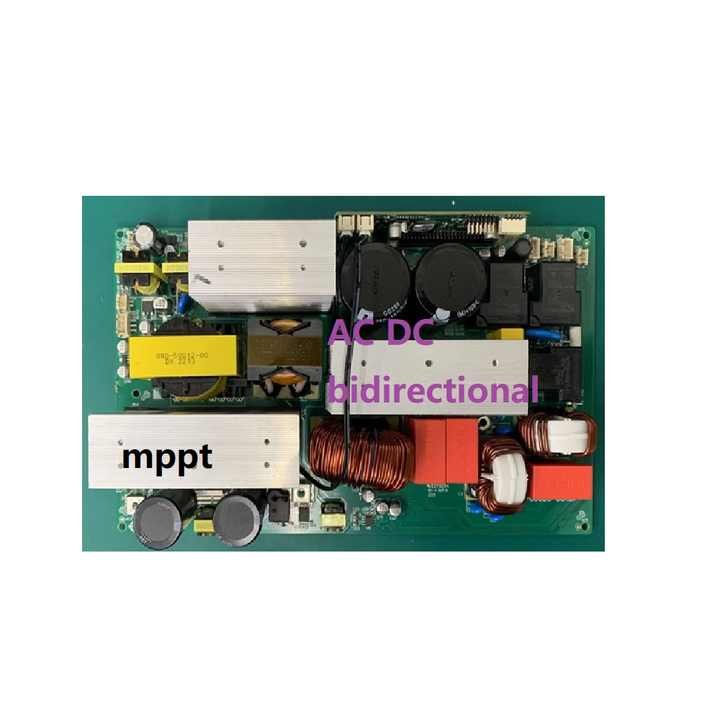

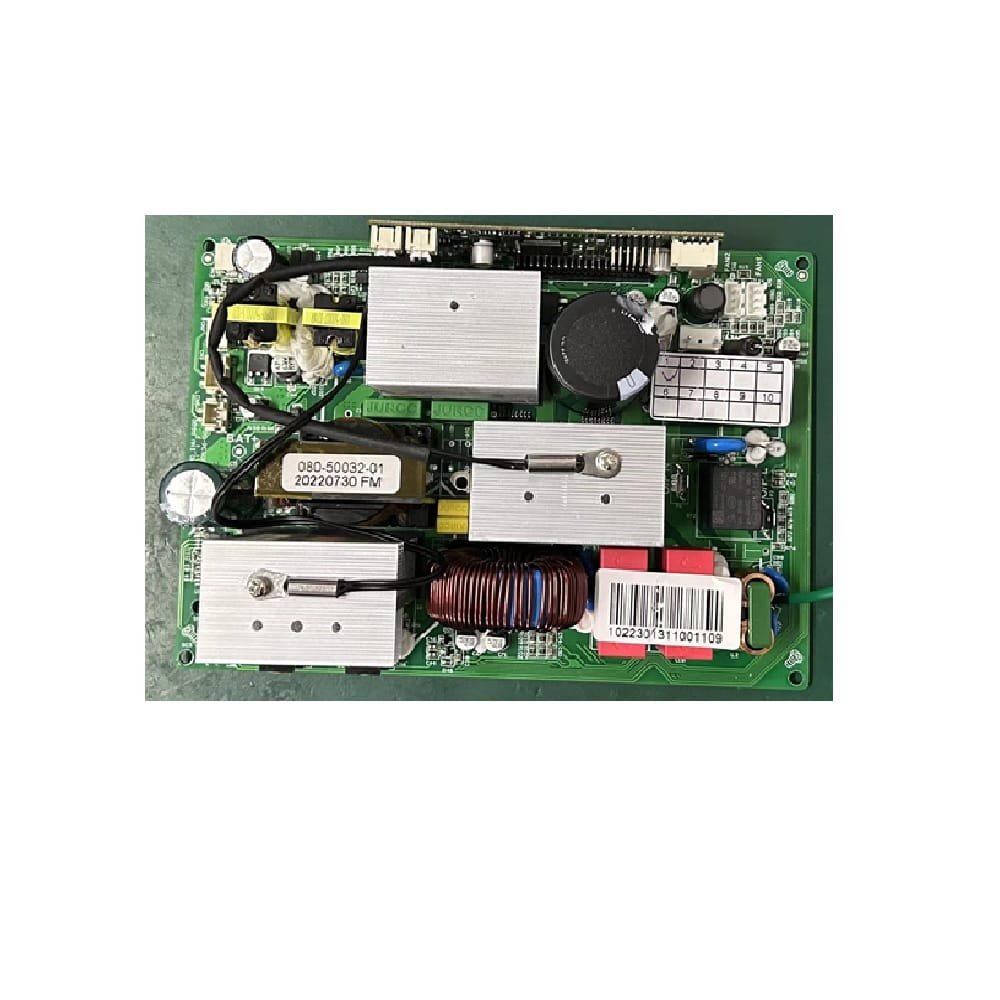

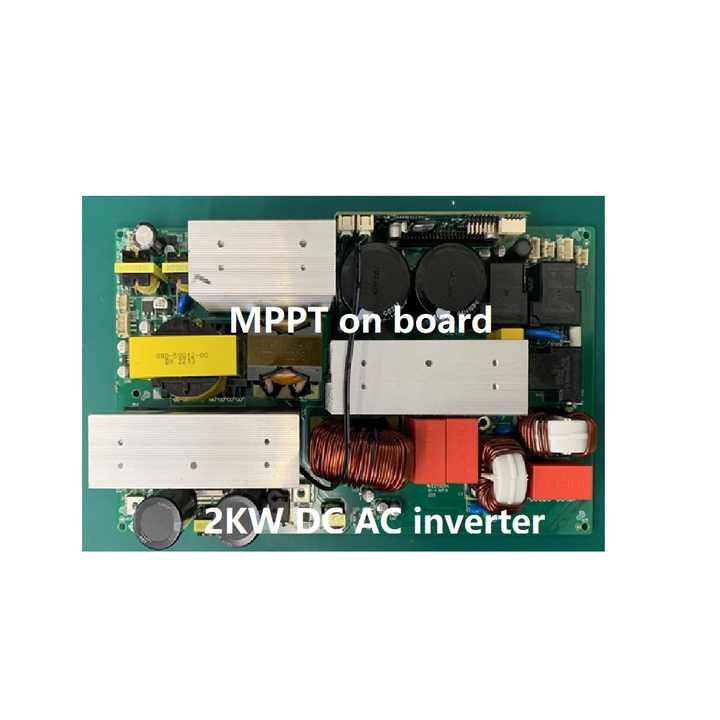

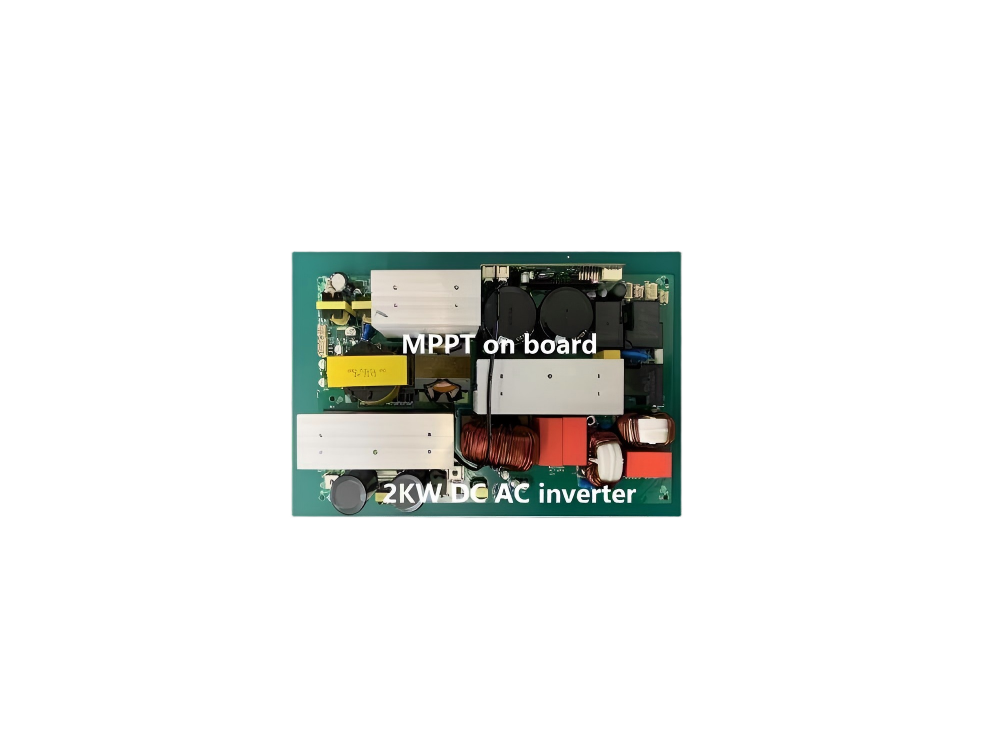

2KW Bidirectional Inverter Board Solar MPPT AC DC Power Station Pure Sine Wave Inverter Charging PCBA Module
Product introduction
mppt Solar energy multifunction 230V AC to 36V DC and 36V DC to 230v AC bidirectional converter
| DC | 36V |
| AC | 230V |
| UPS | <20ms |
| MPPT | 900w |
| MPPT input | 36-60V |
Converter part:
power rate: 2000w (peak 4000w)
Output: Ac voltage220Vac
Output frequency: 50Hz or 60Hz Pure sine waveoutput Waveform distortion (THD):waveform<5%
Fuse: 50A*2
Battery voltage (voltage range) : 48Vdc(39Vdc-60Vdc)
Maximum efficiency:≥93%
Fan operating mode :PWM control
No-load loss :≤2W
Batery Type:13 or14 pieces ternary ithium battery pack,15 or 16 pieces ithium iron phosphate battery
battery low voltage protection: 39Vdc turn off inverter output
battery high voltage protection: 50Vdc
battery high voltage protection: 60Vdc off inverter output
battery high voltage protection recover : 58V DC
hight temperature protection: turn off DC output
High temperature protection recovery:Automatic Recovery of inverter output after temperature reduction
shor circui :Turn off the inverter output and lock it. Restart and recover afer elminating the short circuit
Overload protection: turn off the inverter and lock it, reduce the load and restart to recover
Charging part
Rated Power : 2000W
Maximum eficiency:≥93%
DC power to Ac inverter time:20ms
Ac power to Dc time: 20ms
Lightning protection:Varistor
Operating temperature: -20℃~40℃
working humidity:10%~90%RH,No condensation
Structural Characteristics
Ac output interface : XT90
Dc input interface: +- 2 connector
size: 270*190*48(MM)
weight:1.7KG
