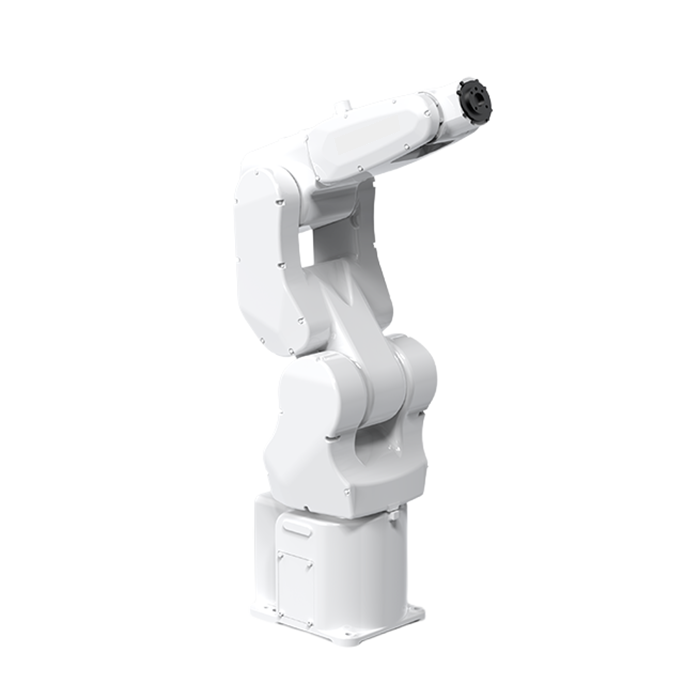

3kg Payload 600mm Reach 6 Axis Industrial Robot Arm
Model: ER3-600
Controlled axes: 6Axes
Max. payload on wrist: 3kg
Repeatability: ±0.02mm
Robot weight: 27kg

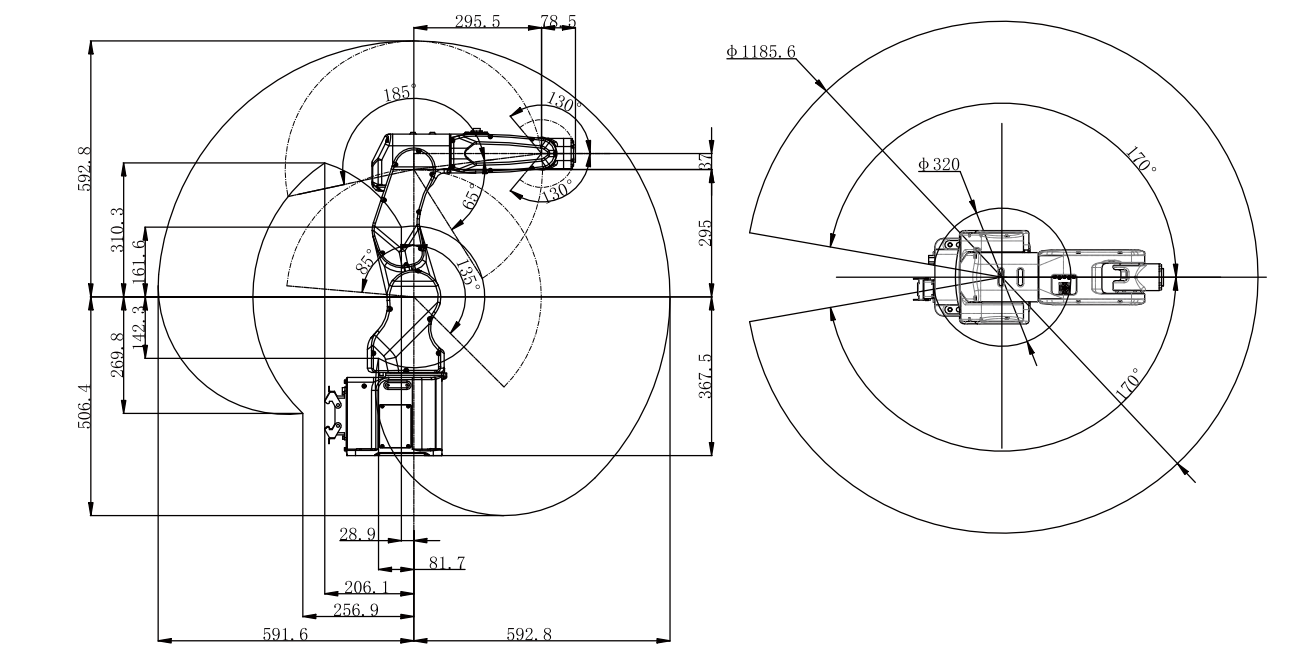

Reach: 593 mm
Product Introduction
The ER3-600 is a compact 6-axis industrial robot arm designed for lightweight automation tasks where installation space and movement flexibility are important.
With a 3kg payload capacity and 600mm working reach, this model is suitable for handling small components, precision assembly, and pick-and-place operations in compact production environments.
Its shorter arm length allows easier integration into workstations with limited space while maintaining the flexibility required for repetitive industrial operations.
Key Features
Compact 600mm Reach Design: The 600mm working radius makes the ER3-600 suitable for small production cells and automated workstations where a larger robot arm may not be practical.
Optimized for 3kg Payload Applications: The 3kg payload configuration is ideal for lightweight parts handling, electronic components, and small assembly processes.
Space-Efficient Automation Solution: The compact structure helps manufacturers introduce automation into existing production lines without requiring major layout changes.
Flexible 6-Axis Movement: The six-axis configuration provides multi-directional movement for accurate positioning and smooth operation in various tasks.
Technical Specifications
Application Scenarios
Small Component Assembly
Electronics Manufacturing
Pick and Place Operations
Precision Handling
Compact Automation Workstations
