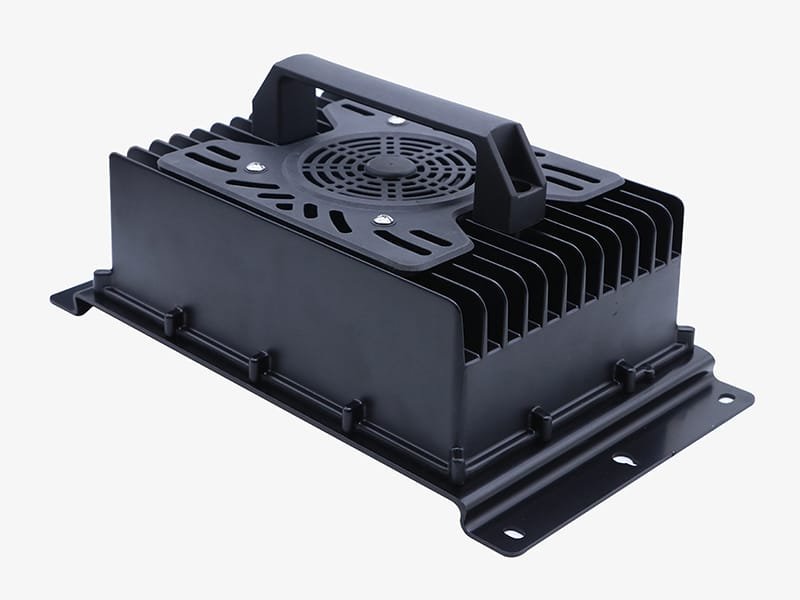

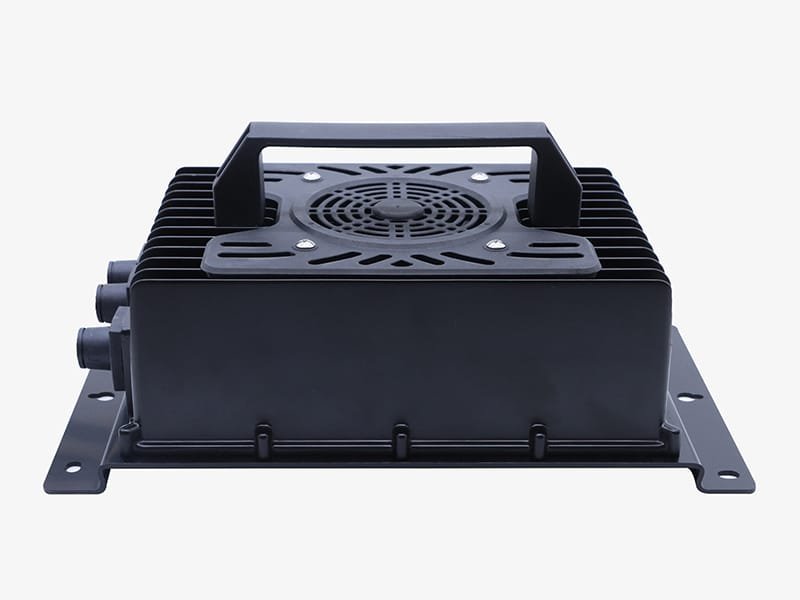

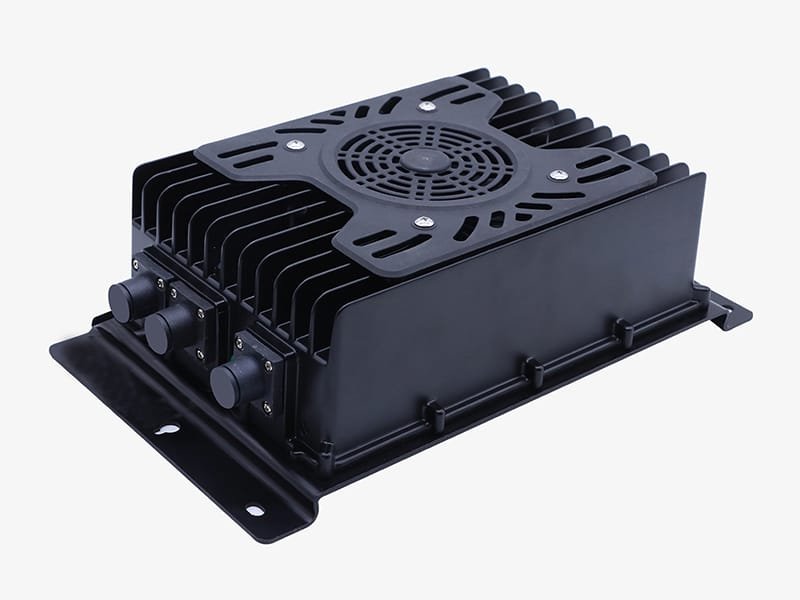

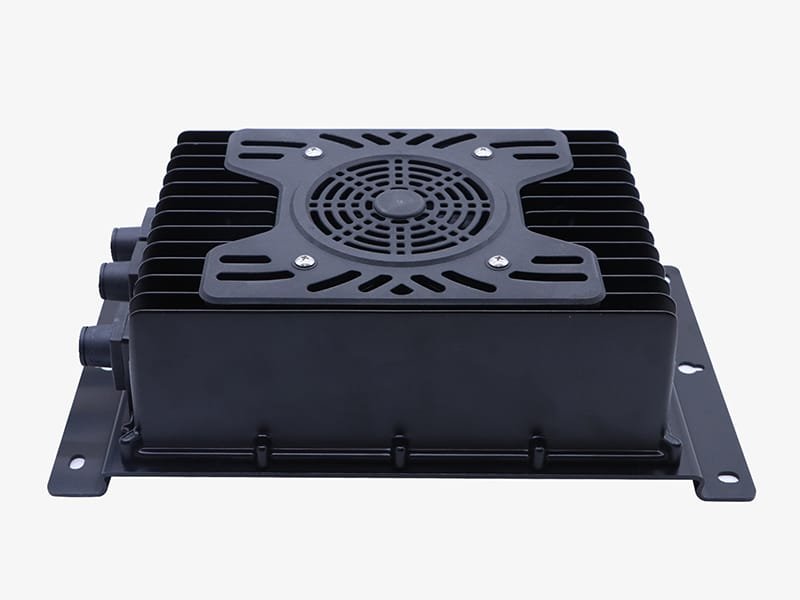

ABU20 Series 1200W Fully Sealed Charger
Product introduction
Technical Parameters
Ac Input Wide Voltage，Range: AC90V~264V;
AC Input Frequency Range: 40~70Hz
With APFC function，Power Factor:≥ 0.98
Soft Switching Technology，Efficiency:≥ 93.0%
Protection Level: IP67
Operating Temperature: – 40 ℃ ~ + 60 ℃
Storage Temperature:- 55 ℃ ~ + 100 ℃
CAN Communication Function (optional)
12V5A Auxiliary Power Supply (optional)
LED Light Indicator for Charging Process
Noise: ≤45 db
Overall Size: 335 ×192×106 (mm)
Net Weight: 4.5kg
| Specifications and models | Input Voltage Range | Rated Output Voltage | Max Output voltage | Max Output Current |
| ABU20-2425A | AC 90~264V | 24V | 33.0V | 25A |
| ABU20-3625A | AC 90~264V | 36V | 49.5V | 25A |
| ABU20-4820A | AC 90~264V | 48V | 66.0V | 20A |
| ABU20-6020A | AC 90~264V | 60V | 82.5V | 20A |
| ABU20-7215A | AC 90~264V | 72V | 99.0V | 15A |
| ABU20-8412A | AC 90~264V | 84V | 115.5V | 12A |
| Product pictures | Technical parameters | Protection function | Dimension chart | |
 | Ac Input Wide Voltage，Range: AC90V~264V; AC Input Frequency Range: 40~70Hz With APFC function，Power Factor:≥ 0.98 Soft Switching Technology，Efficiency:≥ 93.0% Protection Level: IP67 Operating Temperature: – 40 ℃ ~ + 60 ℃ Storage Temperature:- 55 ℃ ~ + 100 ℃ CAN Communication Function (optional) 12V5A Auxiliary Power Supply (optional) LED Light Indicator for Charging Process Noise: ≤45 db Overall Size: 335 ×192×106 (mm) Net Weight: 4.5kg | 1、Overheat Protection: when the internal temperature of the charger exceeds 80 ℃, the charging current will reduce automatically. When it exceeds 85 ℃, the charger shutdown for protection. When the temperature drop, the charger automatically resumes to charge. 2、Short Circuit Protection: when the output short circuit, the charger will automatically shut down the output. After troubleshooting, the battery can be reconnected to resume charging. 3、Battery Reverse Connection Protection: when the battery is reverse connected, the internal circuit of the charger will automatically disconnect from the battery, without charging, without damaging the charger. 4、Input low-voltage ＆Over–voltage Protection: If the input voltage is lower than 90V or higher than 264V, the charger will shut down protectively and automatically resume working with the voltage is normal again. 5、Full Automatic Shutdown: Automatically shut down after full charge. |  | |
