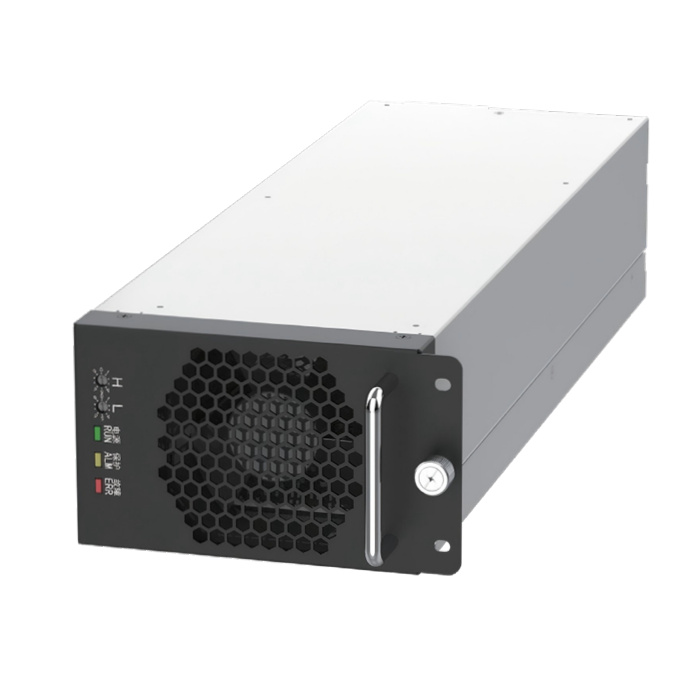

AC-DC 10kW Power Supply Three-in-One- LMXX-10000 Series

Model: LMXX-10000 Series
Output Voltage: 30-120Vdc
Input Voltage: 323Vac~520Vac (full load), 323Vac~260Vac (derating)
Constant Output Power: 10kW
Dimension (W*D*H): 130(W) x427(D) x84(H) mm
Weight: 7kg

Send Inquiry

Key Features

Built-in output relay
Independent 12V auxiliary source
Low input harmonics, wide operating temperature
High efficiency, high power density, DSP digital control
Support hot swap, parallel function,multi-function protection
Perfect fault detection tips
With three-proof protection function

Technical Specifications

SPECIFICATIONS
Items	Parameters	LM100-6000X	LM60-9000X	LM100-10000X	LM120-10000X	LM120-10000U
DC output	Module type	LM100-6000X	LM60-9000X	LM100-10000X	LM120-10000X	LM120-10000U
	Rated output power	6kW	9kW	10kW	10kW	10kW
	Rated output current	60A	150A	100A	100A	100A
	Output voltage range	30~100Vdc	30~60Vdc	30~100Vdc	30~120Vdc	2~120Vdc
	Efficiency	≥94%
AC input	Rated input voltage	Three-phase 380/480Vac
	Input voltage range	323Vac~520Vac (full load), 323Vac~260Vac (derating)
	Input current	<16A	<20A
	Frequency	45~65Hz
	Power factor (PF)	≥0.99
Working environment conditions	Working temperature	-40℃~50℃ work normally, 50℃~75℃ derating output
	Storage temperature	-40℃~75℃
	Relative humidity	0~95%, no condensation
	Altitude	2000m full load output
Reliability	MTBF	>120000 hours
Dimension & weight	Dimension	130(W) × 427(D) × 84(H) mm
Dimension & weight	Module net weight	7kg
Communication & alerting	Communication interface	CAN
Heat dissipation	Heat-dissipating method	Fan forced air cooling

Application Scenarios

Logistics forklift charging
Industrial control
Aging equipment
Automation device
Instrument &meter
