7kW EV Charging Module Car Charger Circuit Board PCBA Controller

Interested

Products

ONE-STOP CUSTOMIZATION

We offer customized AC EV charging stations suitable for both wall-mounted and portable. For home and commercial use. Suitable for all electric vehicles.

We provide customization options for GB/T and Type 2 models with power ratings of 3.5kW, 7kW, 11kW, and 22kW, with adjustable current options of 8A, 10A, 13A, 16A, and 32A.
For Type 1 models, we offer customization options for 3.84kW/7.68kW, 4.8kW/9.6kW, and 7.2kW/14.4kW, with adjustable current settings of 8A, 10A, 13A, 16A, 32A, 40A, 48A, and 60A.
Additional customizable features include RFID, NFC card charging, Bluetooth, Wi-Fi, and Tuya app functionality. We also offer full support for customizing the OCPP protocol.
1. Wall-mounted EV charger PCB series
                                                                       Single phase 7kW (Type 2)
                                                                         Three phase 11kW (Type 2)
                                                                                  Three phase 22kW (Type 2)
                                                                                       32A current (Type 1)
                                                                                        40A current (Type 1)
                                                                                       60A current (Type 1)
2. Portable EV charger PCB series
                                                                            Single phase 7kW (Type 2)
                                                                         Single phase 11kW (Type 2)
                                                                       Three phase 22kW (Type 2)
                                                                              16A current (Type 1)
                                                                             32A current (Type 1)
                                                                                 40A current (Type 1)
3. Bidirectional Portable EV charger PCB series

Electric car bidirectional portable EV charger controller module.

V2L (Vehicle-to-Load) Output – Easily powers home appliances, camping gear, tools, etc.
Fast Charging Support – Compatible with Type 1 / Type 2 / GB/T standards.
Portable & Lightweight Design – Ideal for outdoor use, road trips, and emergencies.

4. Display and UI customization

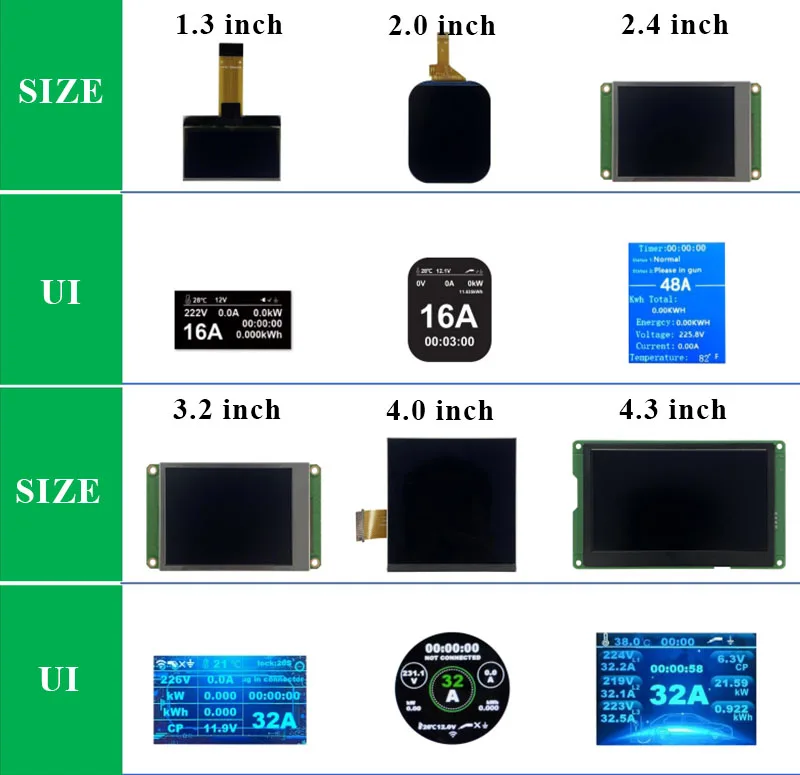

Multiple sizes of LED and LCD screens are available. You can customize page layout, color scheme, boot logo, and use synchronous communication. It’s powered by 5V, supports page – turning display, features a single touch – button, and allows for waterproof design.
5. Matching modules

                    Card-swiping module

                    1. RF1522 IC card reader.
                    2. Induction distance within 0- 60 mm.

                                           4G communication module

                                             1. 5V power supply.

                                             2. Supports full-network 4G.

                                                                    Button module

                                                                    1. Supports page-turning display.
                                                                    2. Comes with a single touch button.

                                                                       Button module

                                                                       1. 5V power supply.
                                                                       2. Supports full-network 4G.

                                                               Communication module

                                                               1. Powered by 5V.

                                                               2. Supports RS485 interface.

                                                                   Communication module

                                                                   1. 5V power supply.
                                                                   2. Supports full-network 4G.
Products Description
Product name
EV Charger controller board / PCBA / PCB / module
Output Power(GBT/Type2)
3.5kW / 7kW / 11kW / 22kW
Output Power(Type1)
3.84KW/7.68KW/ 4.8KW/9.6KW/5.76KW/11.52KW
Input/output voltage
120VAC/240VAC ( US standard)
Input/output voltage
230VAC ± 10%, 400VAC ± 10% ( EU standard)
Input/output current
8A-32A adjustable ( EU standard)
Input/output current
8A-60A adjustable ( US standard)
EMC Compliance
EN IEC 61851-21-2: 2021
Electrical Protection
Leakage protection, Over-current protection, over-voltage protection, lightning protection, overheat protection, CP fault protection, Short-circuit protection, under-voltage protection.
LCD screen size
Customizable 4.3/4.0/3.2/2.4/2.0/1.3″ LCD/LED
Operating Temperature
-30℃ ~+55℃
Operating Humidity
0-95% non-condensing
Certifications
CE/FCC/CSA/RoHS/ETL
Charging method
Plug-and-charge, RFID, NFC, Scheduled charging
LCD Display
Yes
Mounting Method
Wall-Mounted / Floor-Mounted / Portable
Button On/OFF
Yes
APP
APP, RFID, OCPP, Load Balance
External Package
Carton
