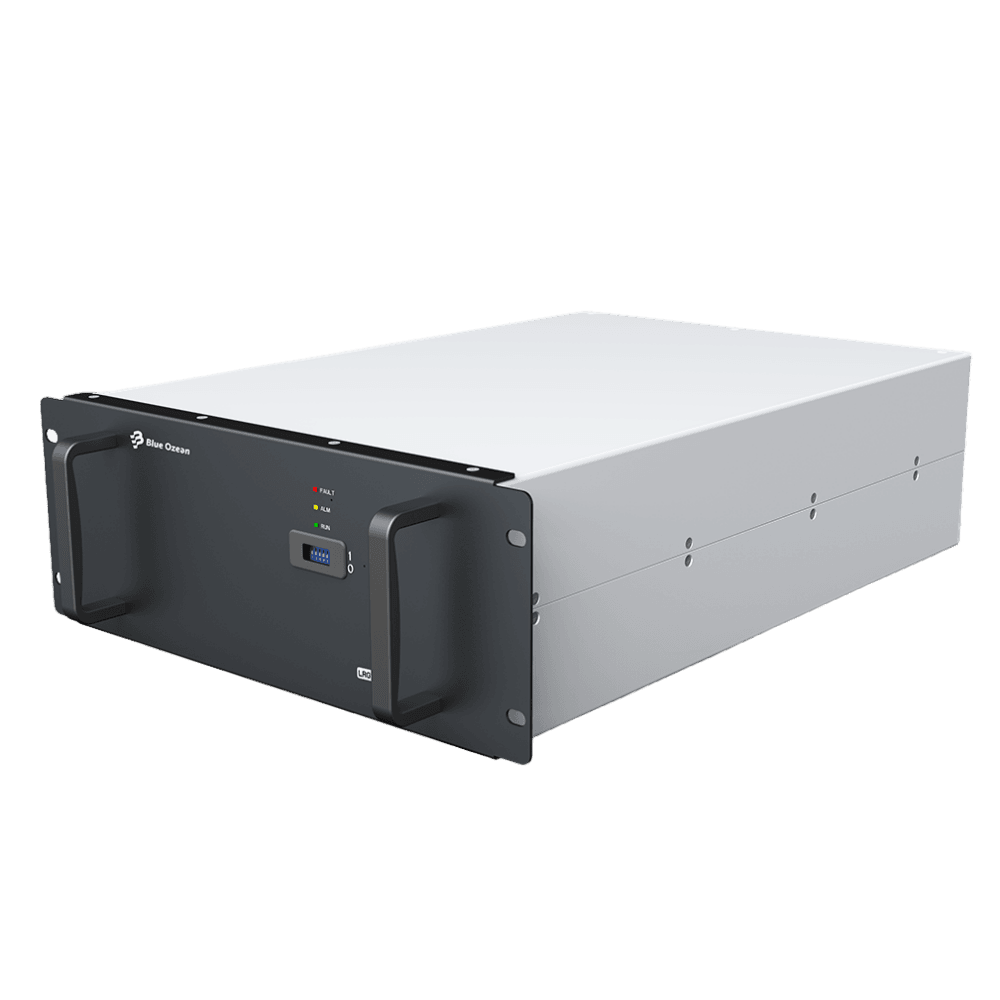

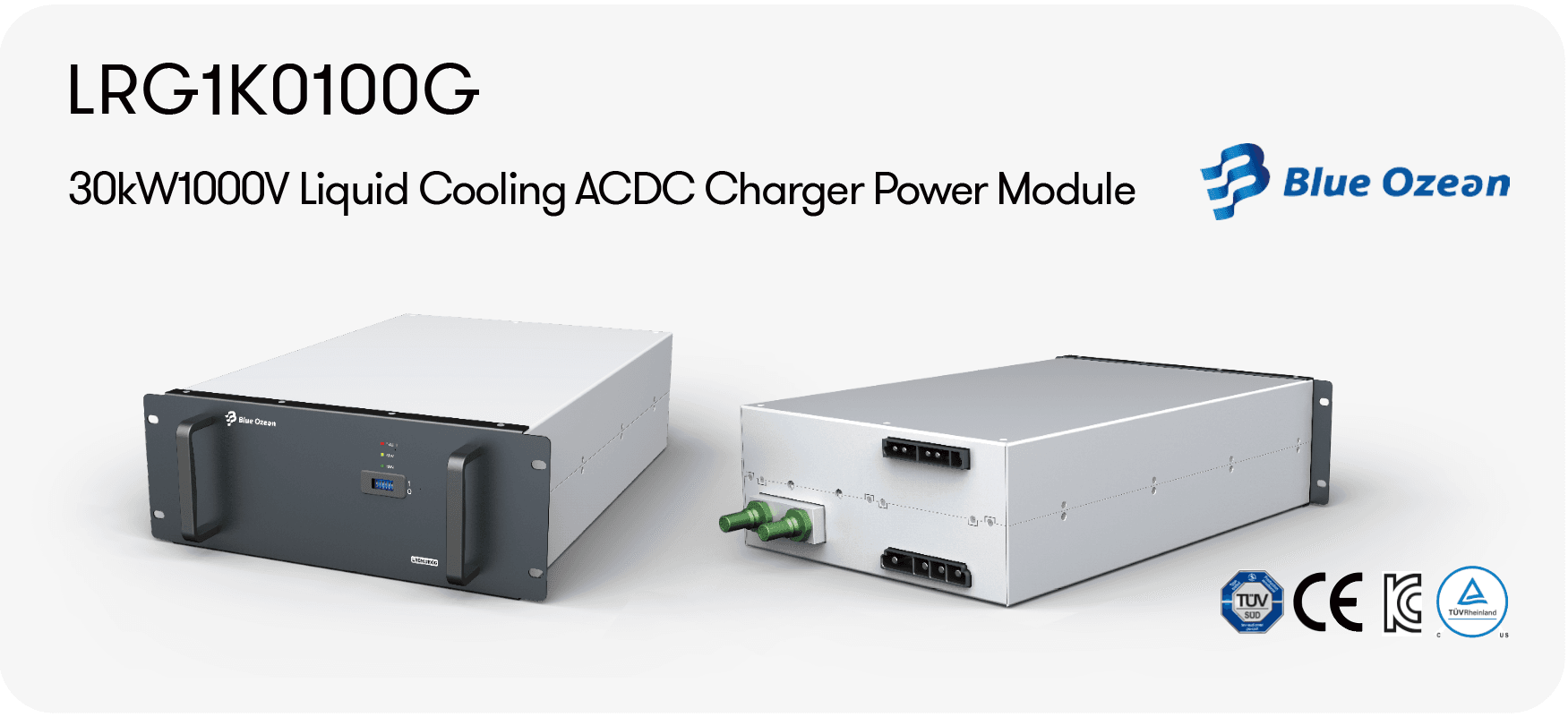

LRG1k0100G 30kW 1000V Liquid Cooling ACDC Charge Power Module

Features

Zero audio noise
Anti-condensation water design
Liquid cooling for high protection and high reliability
Both electric interface and liquid interface support full hot plug
Wide output voltage range, 150-1000vDc, suitable for a wide range of Evs Constant current for higher output power at low output voltage
3-phase without neutral eliminates the risk of high neutral currents Inside high freguency transformer isolation
3-phase active power factor correction technology, reduces the harmonic interference to the grid
An internal patented intelligent discharge circuit automatically discharges residual charge, simplify the system design
Low standby power consumption with 12W. Super standby power consumption with 2W
Dual DSP design, provides the full digital control, less components means higher reliability

AC Input voltage and current 260Vac ~530Vac,58A

DC output voltage and current 150Vdc~1000Vdc, 0~100A

Rated power 30kW

Dimensions and weight 123mm(H)x300mm(W)x453mm(D), ≤28kg
