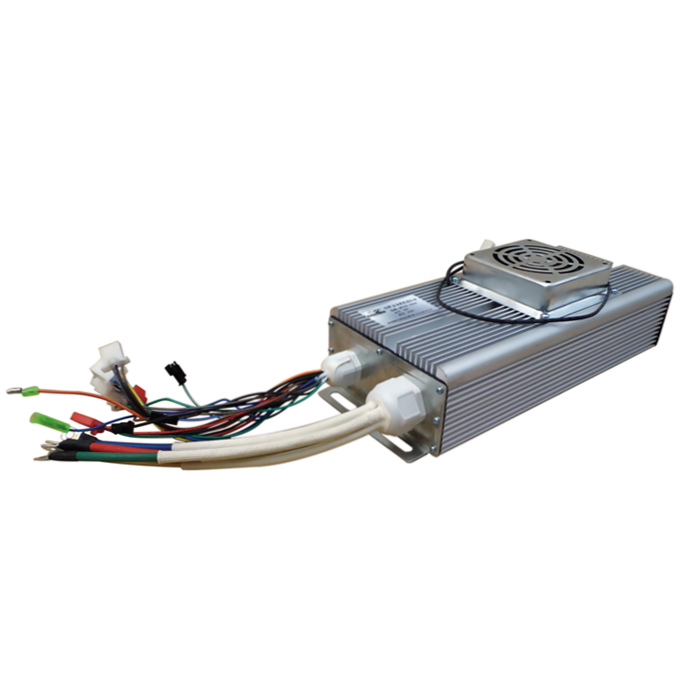

Waterproof EV Controller with PG Gland (12-36 MOSFET)
MOSFET Count: 12-36
MOSFET Layout Single Row: Dual Row (Balanced Thermal)
Rated Voltage: 48V / 60V / 72V
Power: 500W-2200W
Product Overview
Built for extreme loads and harsh environments, the Pro Heavy-Duty Series combines IP67 PG Gland Waterproof Covers with optional Aluminum PCB Substrates. Engineered to handle up to 36 MOSFETs, this series delivers heavy torque, optimal thermal management, and 100% continuous full-power operation under high-temperature or heavy-cargo conditions.
Key Features
IP67 Industrial Waterproofing: Industrial PG Gland locking structure seals cable entries completely against heavy rain and mud immersion.
Ultra-Fast Heat Dissipation (Aluminum PCB): Thermal conductivity is 10× higher than that of standard FR-4 PCBs, keeping internal temperature below 75℃ even under 100% load.
Heavy Cargo Torque Output: Optimized for hill-climbing with zero power attenuation under prolonged heavy loading.
Rugged Heavy-Duty Housing: Reinforced aluminum alloy casing resists severe impacts and outdoor corrosion.
Technical Specifications
Application Scenarios
Heavy-Duty Cargo Tricycles (1,000kg+ Payload Capacity)
Mining & Construction Site Utility Vehicles
Tropical & Rainy Region Fleets (Southeast Asia, South America, Africa)
High-Gradient Mountain / Slope Transport Vehicles
