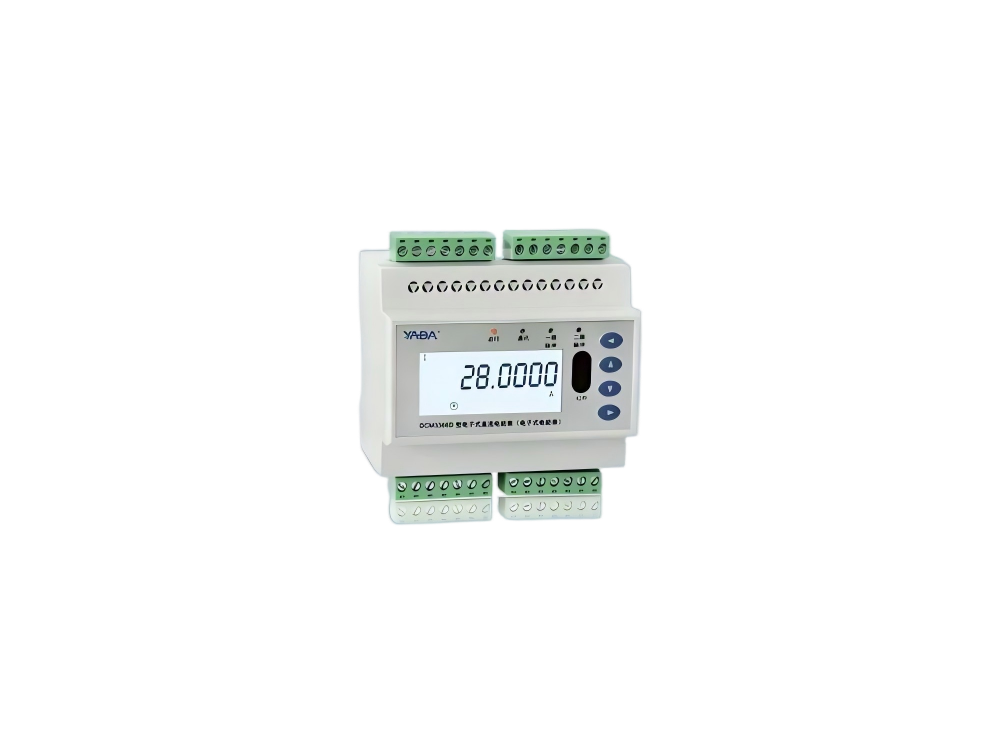

Yada-DCM3366D-J2-Energy Meter-EV/Solar/ESS

Yada-DCM3366D-J2-Energy Meter-EV/Solar/ESS

Number of phases: DC meter
Accuracy class: Class 0.5
Maximum current: 500 amps
Rated current: 50A~500A
Measured energy range: 0-999999.99 kWh

Send Inquiry

Product Overview

The YADA DCM3366D-J2 is an electronic DC energy meter developed for accurate measurement and monitoring of DC power systems. It integrates measurement, data processing, communication, and LCD display functions into one compact device.

The meter measures DC voltage, current, power, and energy, with support for forward and reverse energy measurement. Its dual-channel measurement capability makes it suitable for applications requiring independent monitoring of two DC circuits.

With an RS485 communication interface and infrared communication, the DCM3366D-J2 supports data exchange with computers and energy management systems. It also features automatic data saving during power interruptions, high overload capacity, low power consumption, and long-term operating stability.

Designed for applications such as EV charging stations, battery systems, solar panels, and industrial DC power distribution, the DCM3366D-J2 provides a practical solution for DC energy measurement and management.

Key Features

Dual-Channel DC Energy Measurement: Supports independent measurement of two DC circuits, providing more flexible energy monitoring for multi-circuit applications.

High Measurement Accuracy: Class 0.5 measurement accuracy provides reliable readings of DC electrical parameters and energy consumption.

Bidirectional Energy Measurement: Measures forward and reverse energy and calculates combined energy to support different DC power-flow conditions.

Multiple Electrical Parameter Monitoring: Measures DC voltage, current, power, and energy, allowing users to monitor important electrical data in real time.

RS485 & Infrared Communication: Supports RS485 and infrared communication interfaces, with Modbus RTU and DL/T 645-2007 protocols for data exchange and system integration.

Data Retention & Multi-Rate Functions: Automatically saves data during power interruptions and supports multi-rate billing and programmable time periods.

Technical Specifications

Technical Specifications
BrandYADA
ModelDCM3366D-J2
Meter TypeDual-Channel DC Energy Meter
Accuracy ClassClass 0.5
Rated VoltageDC 100V / 300V / 500V / 700V / 750V / 1000V
Rated Current50A / 100A / 200A / 300A / 500A
Current InputExternal Shunt Input
Energy Measurement Range0–99999.99 kWh
Measurement ParametersDC Voltage, Current, Power and Energy
CommunicationRS485, Infrared
Communication ProtocolModbus RTU, DL/T 645-2007
DisplayLCD
Installation35mm DIN Rail
Operating Temperature-25°C to +60°C
Dimensions90 × 95.5 × 63.5 mm
WeightApprox. 0.28 kg
Warranty2 Years

Product Photos & Certificates

The YADA DCM3366D-J2 is supplied with relevant product documentation and certification materials. Please refer to the available certificates for detailed compliance information.
Product specifications, certificates, and technical documents can be provided upon request.

Applications

The YADA DCM3366D-J2 DC energy meter is suitable for various DC power measurement and monitoring applications.

EV Charging Stations

Measures DC electrical parameters and energy consumption in EV charging equipment, supporting energy monitoring and charging system management.

Solar PV Systems

Monitors DC voltage, current, power, and energy generated by solar panels and photovoltaic systems.

Battery & Energy Storage Systems

Measures charging and discharging energy in battery systems, providing useful data for energy monitoring and management.

Industrial DC Power Systems

Suitable for DC power distribution, industrial facilities, telecommunications equipment, and other applications requiring DC energy measurement.

Dimension & Installation

Frequently Asked Questions

Q1: What parameters can the DCM3366D-J2 measure?

It measures DC voltage, current, power, and energy, supporting real-time electrical monitoring and energy measurement.

Q2: Does the DCM3366D-J2 support bidirectional energy measurement?

Yes. It supports forward and reverse energy measurement, as well as combined energy calculation.

Q3: Which communication protocols does the meter support?

It supports RS485 and infrared communication, with Modbus RTU and DL/T 645-2007 protocols.

Q4: How is the DCM3366D-J2 installed?

The meter supports 35mm DIN rail installation for convenient integration into electrical cabinets and control panels.

Q5: Can ALLBLUE supply the YADA DCM3366D-J2?

Yes. ALLBLUE provides sourcing support for genuine YADA energy meters and other electrical components for EV charging, solar PV, and energy storage projects. Contact us for product availability and quotations.

Looking for YADA DCM3366D-J2 DC Energy Meter?

ALLBLUE provides sourcing services for genuine YADA energy meters and electrical components for EV charging, solar power, and energy storage applications.

Whether you need the DCM3366D-J2 for a single project or bulk procurement, our team can help you confirm product specifications, documentation, and availability.

Contact ALLBLUE for pricing and technical information.
