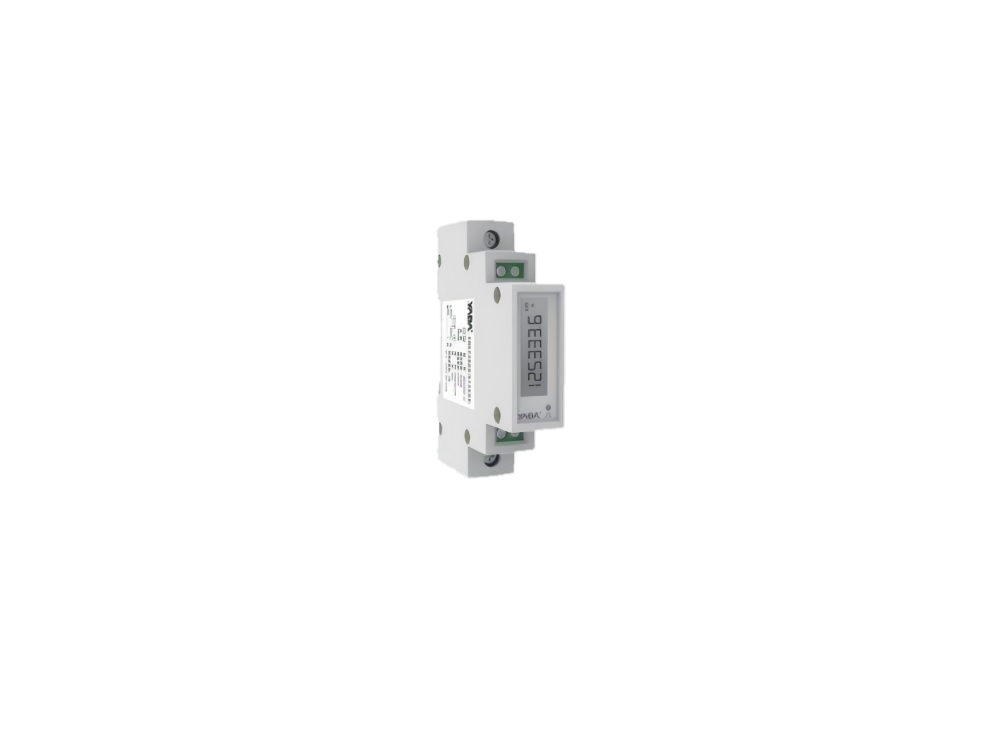

Yada-DDS3366D-1P-Energy Meter-EV/Solar

Yada-DDS3366D-1P-Energy Meter-EV/Solar

Number of phases: Single-phase
Output voltage: AC 220V
Accuracy class: Class 1.0
Maximum current: 60A
Rated current: 5A
Measurement energy range: 0-999999.9 kWh

Send Inquiry

Product Overview

The DDS3366D-1P is a single-phase energy meter optimized for electric vehicle charging and solar power applications. Built for long-term operational durability, the meter delivers high accuracy and high overload capacity while consuming low power. It features real-time monitoring and intelligent data processing for precise energy measurement and clearly displays critical metrics on an integrated LCD screen. Additionally, the unit includes an automatic data backup function to prevent information loss during power outages.

Key Features

35mm DIN Rail Mounting
Bi-directional Power Metering
6+1 Digit LCD Display
With RS-485 Communication Interface

Technical Specifications

ItemSpecification
Product NameYADA DDS3366D-1P AC Energy Meter
Meter TypeSingle-Phase Energy Meter
ModelDDS3366D-1P
BrandYADA
Display TypeLCD Display
Energy Measurement Range0–99,999.99 kWh
PhaseSingle Phase
Accuracy ClassClass 1.0
Operating Temperature-20°C to +55°C
Communication InterfaceRS-485 Interface, ModBus-RTU and DL/T645-2007 Protocol
Mounting Method35 mm DIN Rail Mounting
Input Current5(40)A, 10(60)A
Input Voltage220V AC
Pulse Constant1600 imp/kWh, 800 imp/kWh
Frequency50 Hz
Warranty2 Years
Dimensions90 ± 0.5 × 18 ± 0.5 × 72 ± 0.5 mm
Weight0.25 kg

Dimension drawings
