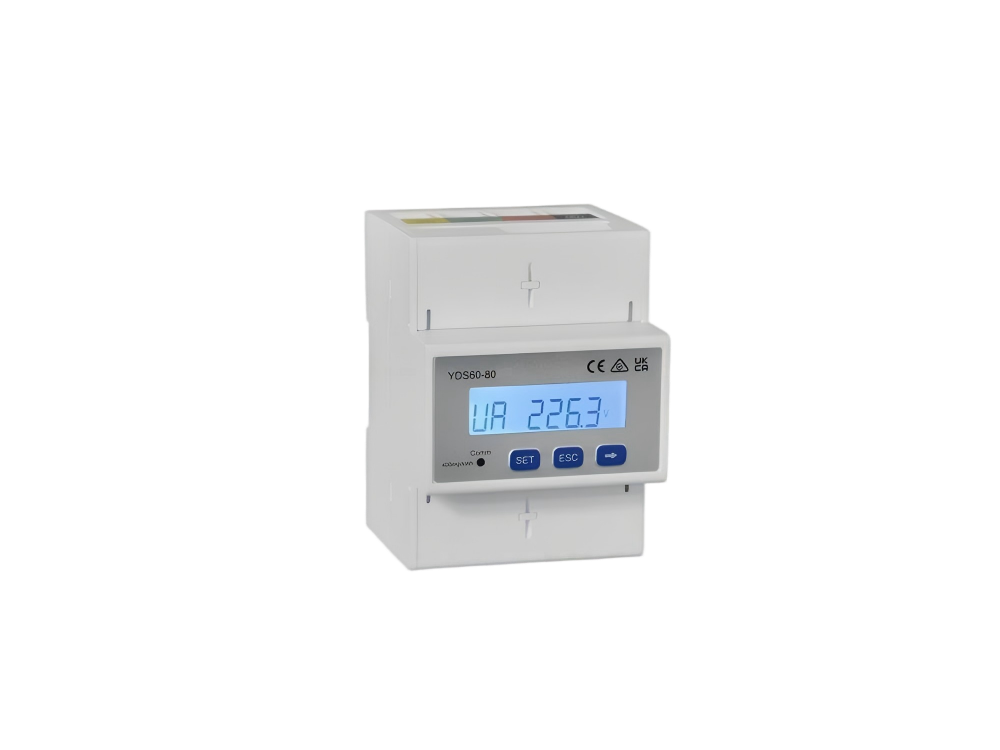

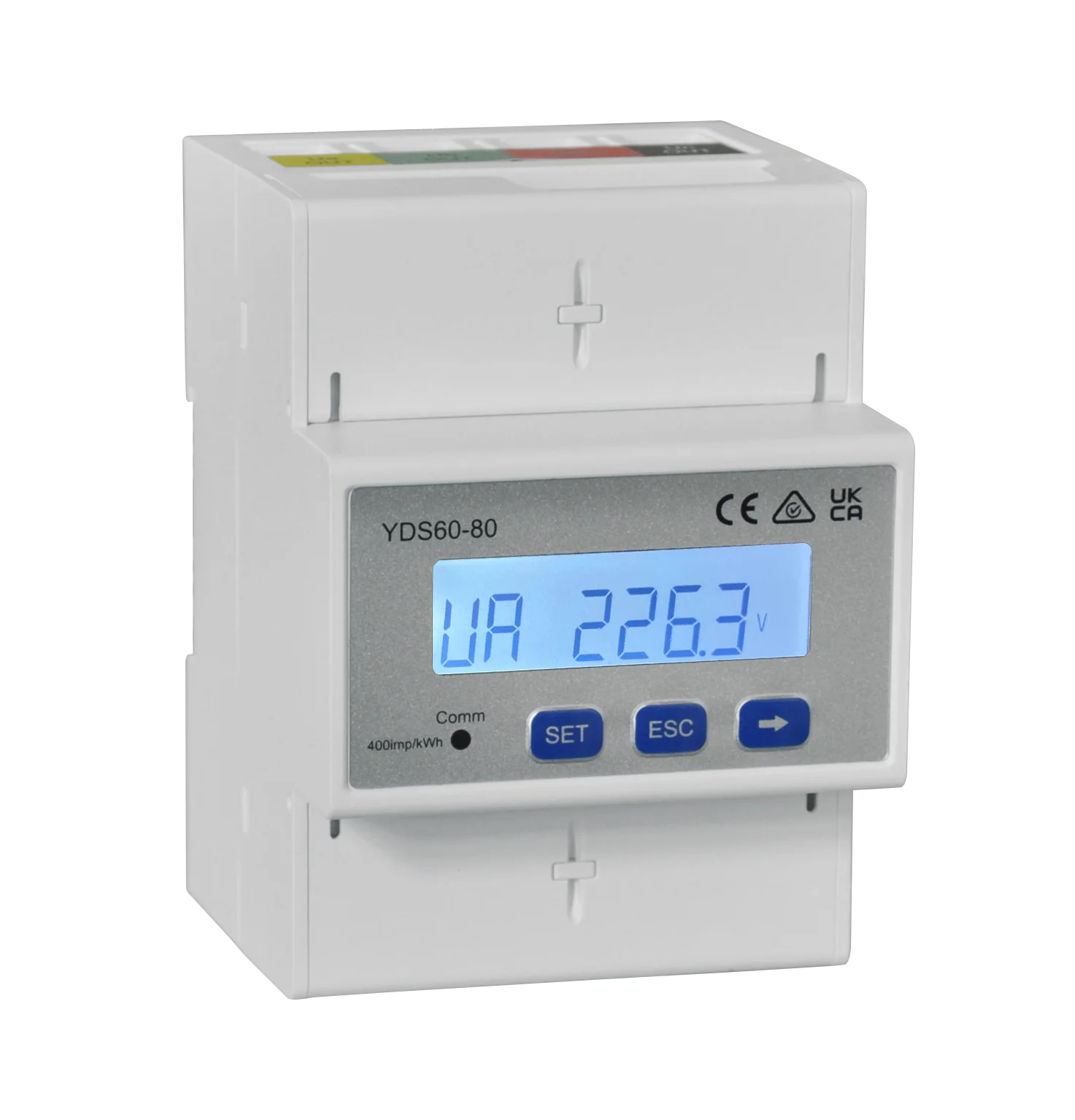

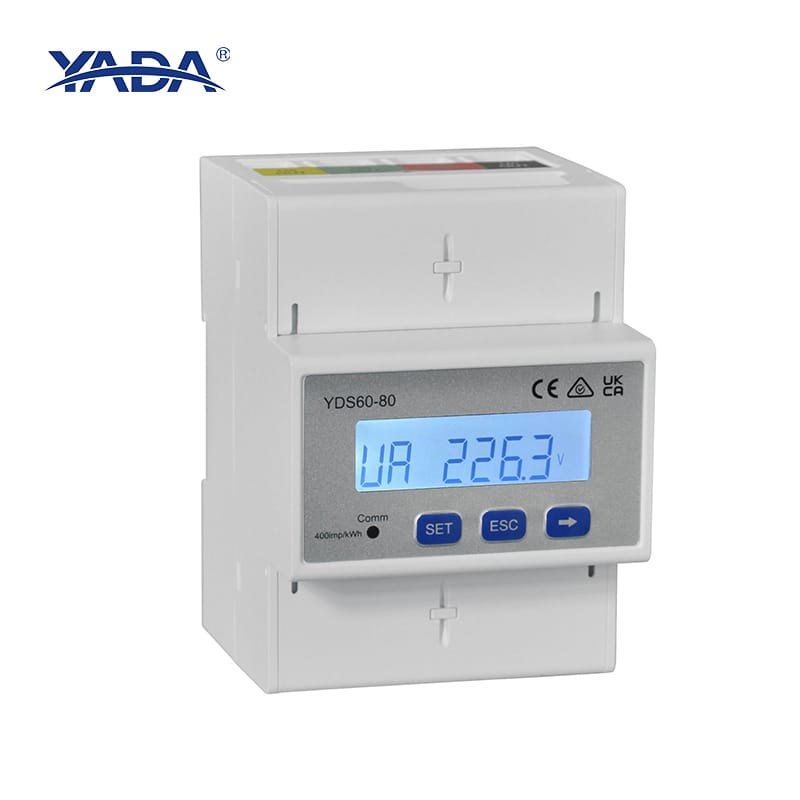

YADA YDS60-80 Digital Energy Meter



Products Description

Key Characters
* Certifications include CE, UKCA for the UK, and RCM for Australia;
* Bidirectional measurement and metering,with an accuracy of 0.5 class;
* Measurement of three-phase voltage, current, power, power factor, frequency and energy;
* Channel current sampling, supporting direct connection of 80A and 1A/5A transformer connection;
* RS485 communication, Huawei inverter Modbus protocol, maximum baud rate of 115200 bps;
Product Name
YADA YDS60-80 Digital Energy Meter
Meter Type
3 Phase Energy Meter
Model No.
YDS60-80
Brand Name
YADA
Display Type
LCD Display
Measuring Energy Range
0-99999.99kWh
Phase
Three Phase
Accuracy Class
Class 0.5
Operating Temperature
-25℃~ 55℃
Communication
RS485(Modbus-RTU)
Installation
3-Phase 4-wire, 35mm DIN rail
Input current
AC230V/400V
Input Voltage
1.5(6)A, 10(80)A
Certificate
CE/UKCA/RCM Certification(EN61010-1:2010+A1:2019, EN61010-2-030:2021+A11:2021, EN 61326-1:2013, EN 61326-2-2: 2013)
Warranty
2 Years
Dimensions
72.0mm*100.0mm*80.0mm
Appication
Data center, Telecommunication, Charge station, Industrial, IoT, Household and other Power Management System.

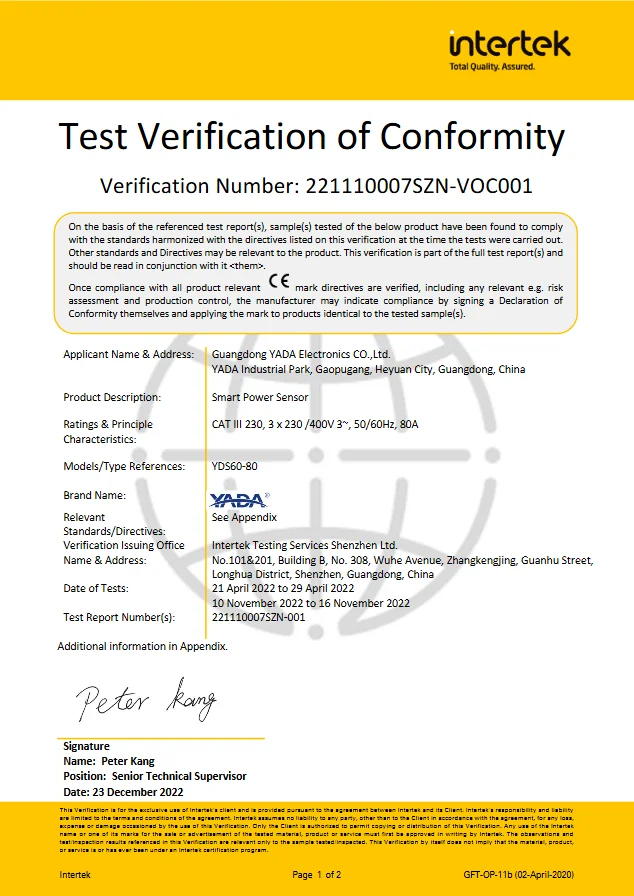

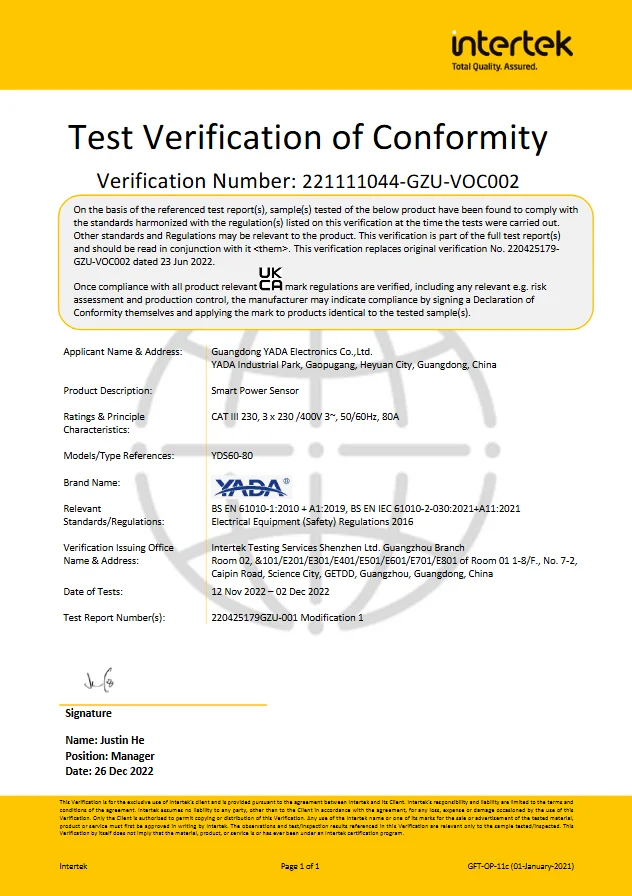

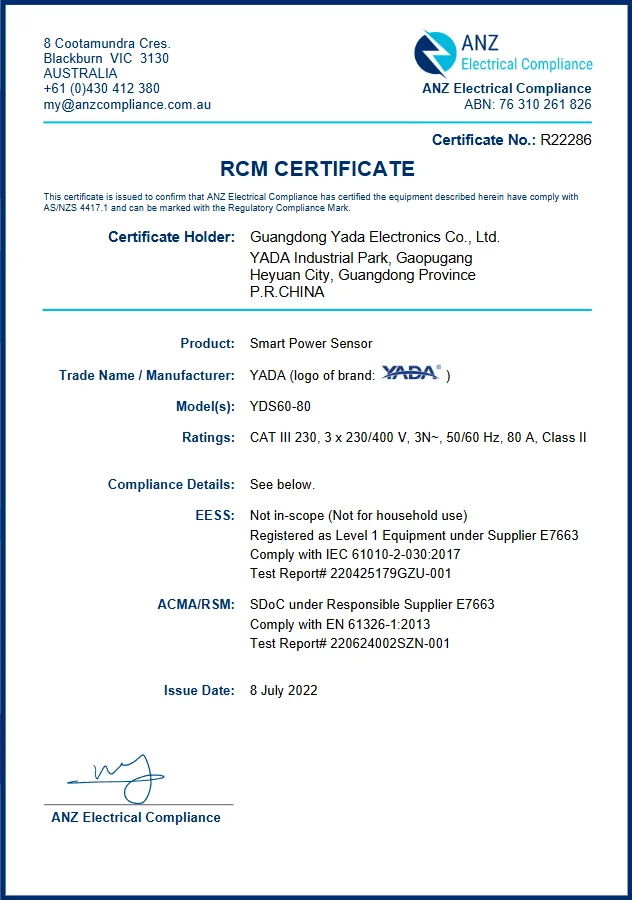

YADA YDS60-80 Energy Meter Certificates

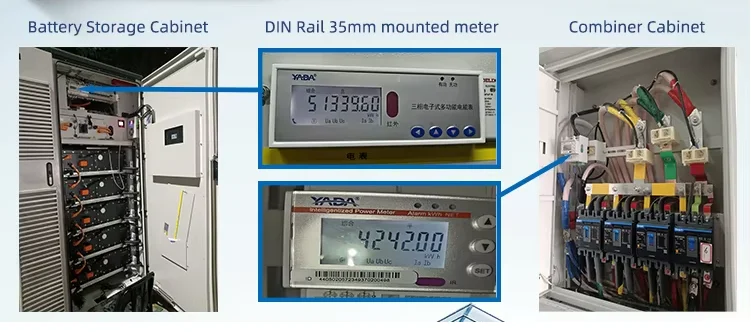

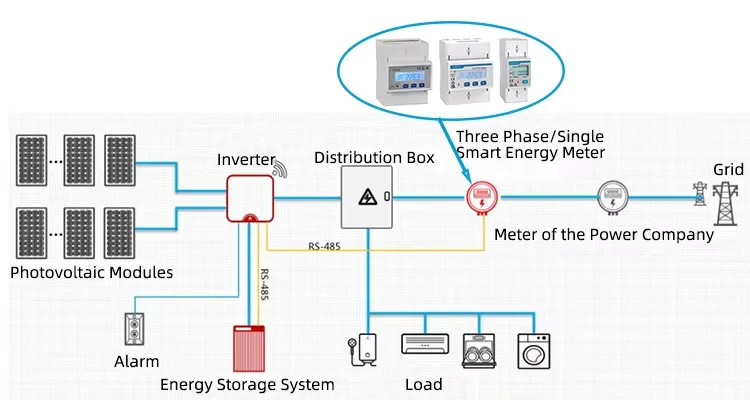

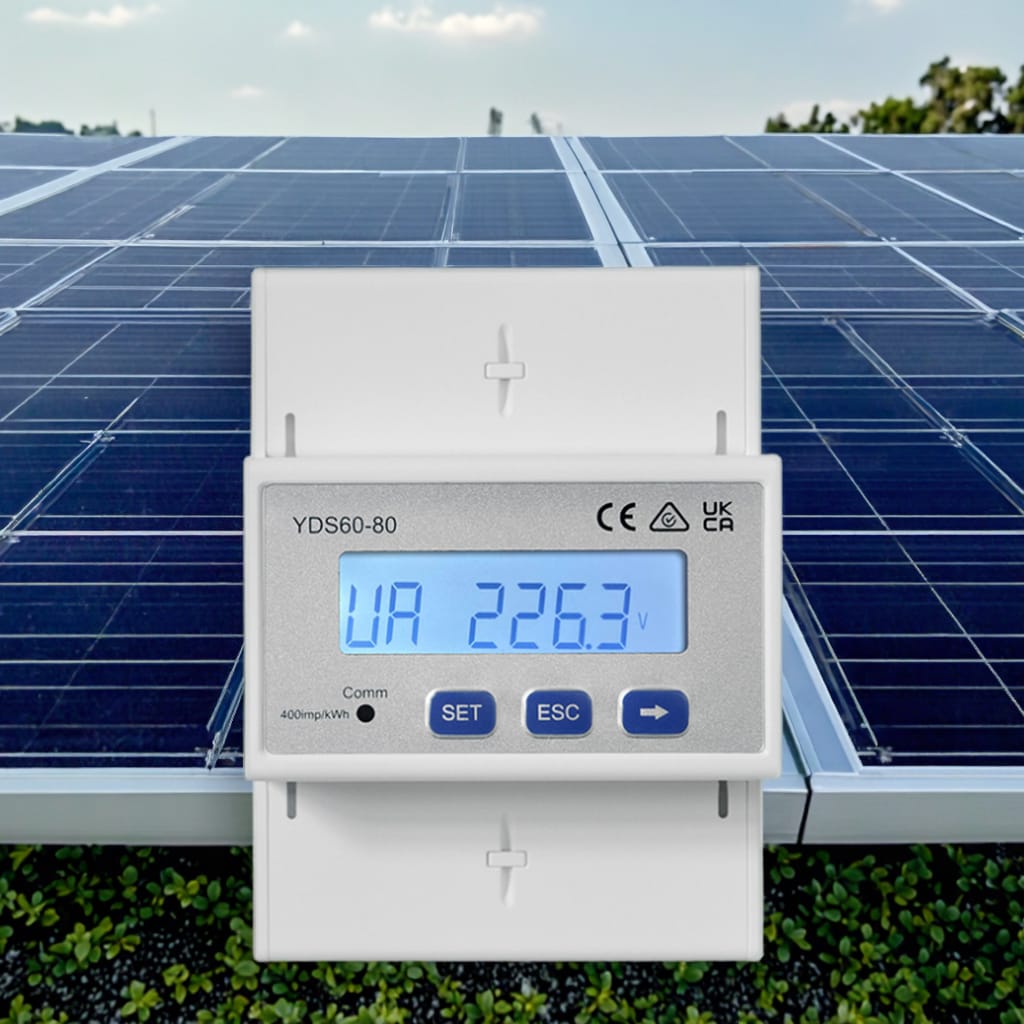

Application Display

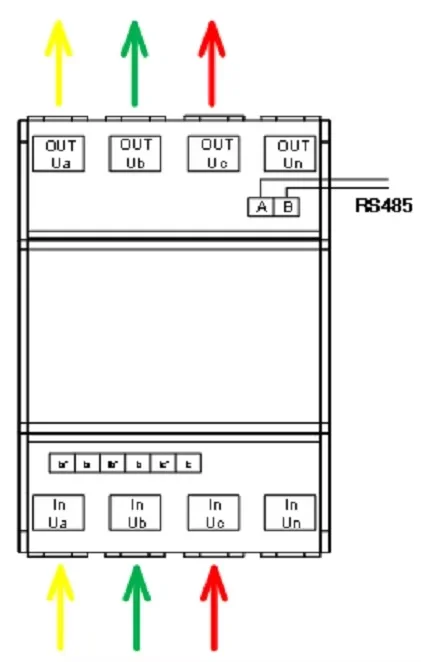

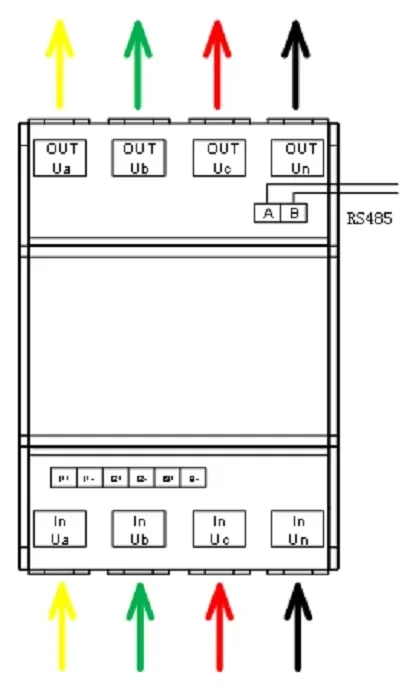

Wiring Ways

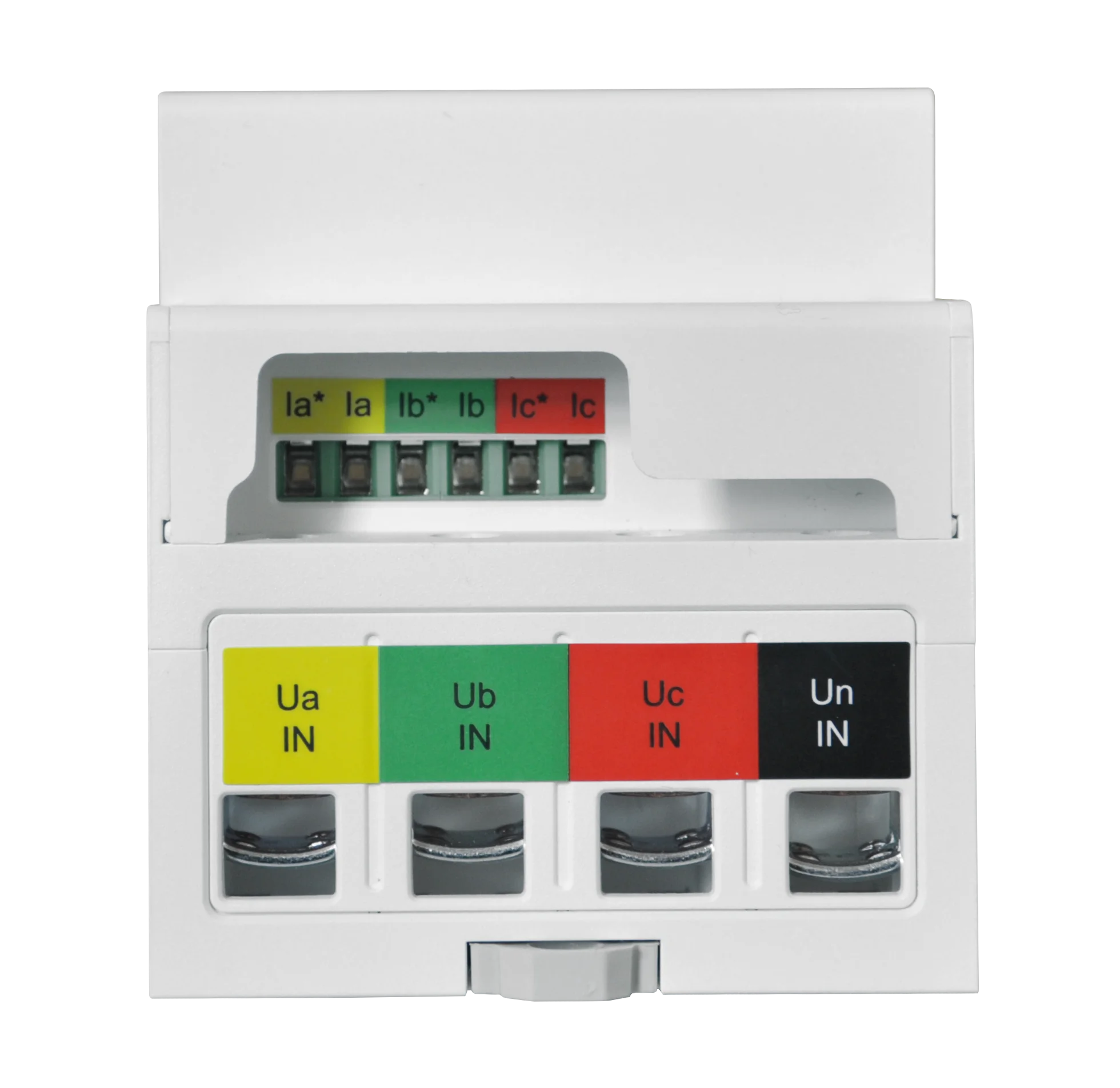

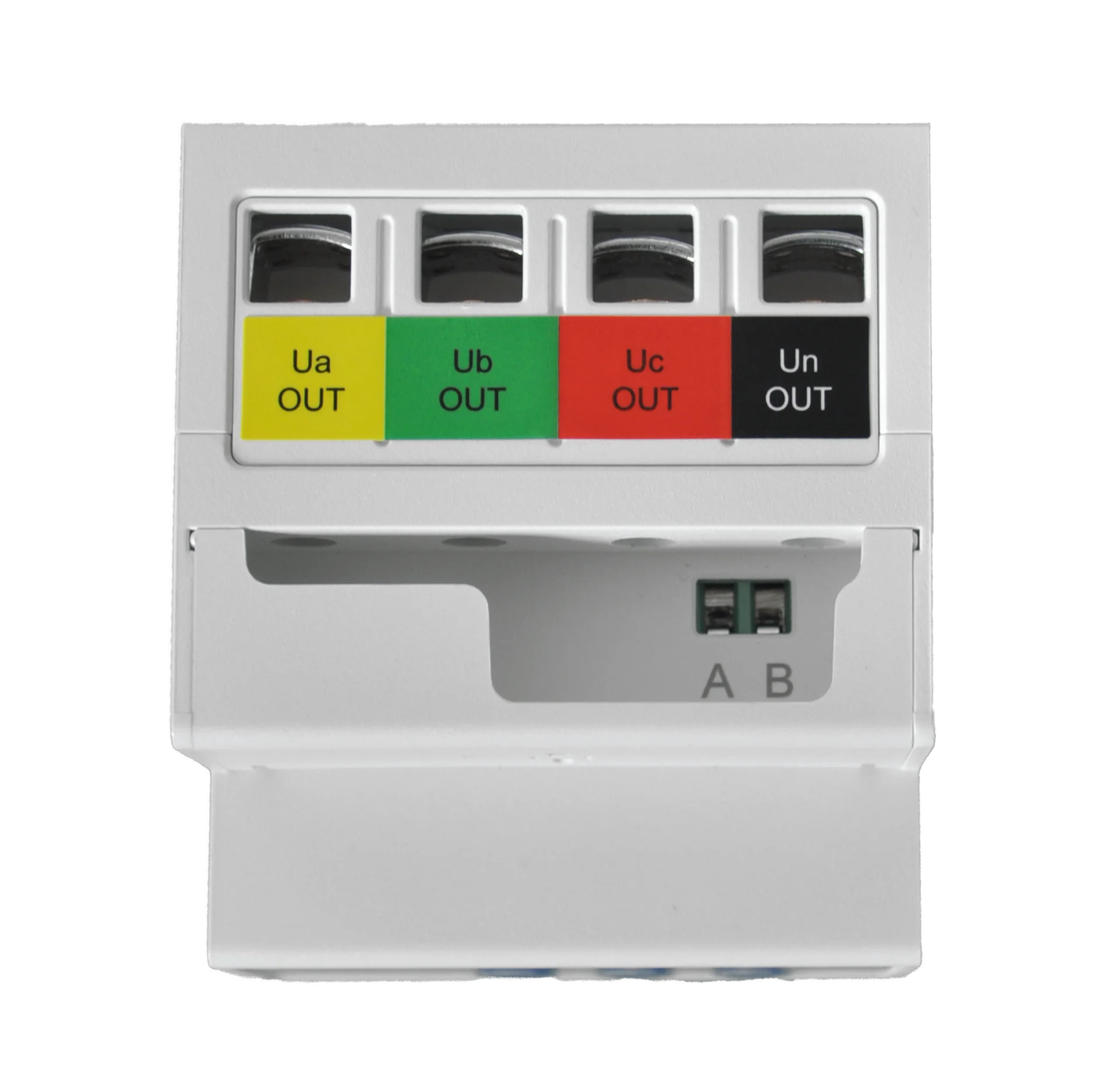

                                                                          Up terminals                                                                               Down terminals
3-Phase 3-Wire input with PT & CT
3-Phase 4-Wire direct input with CT
3-Phase 4-Wire input with PT + CT
3-Phase 4-Wire direct input with CT
3-Phase 3-Wire direct input
WIthout PT & CT
3-Phase 4-Wire direct input
WIthout PT & CT

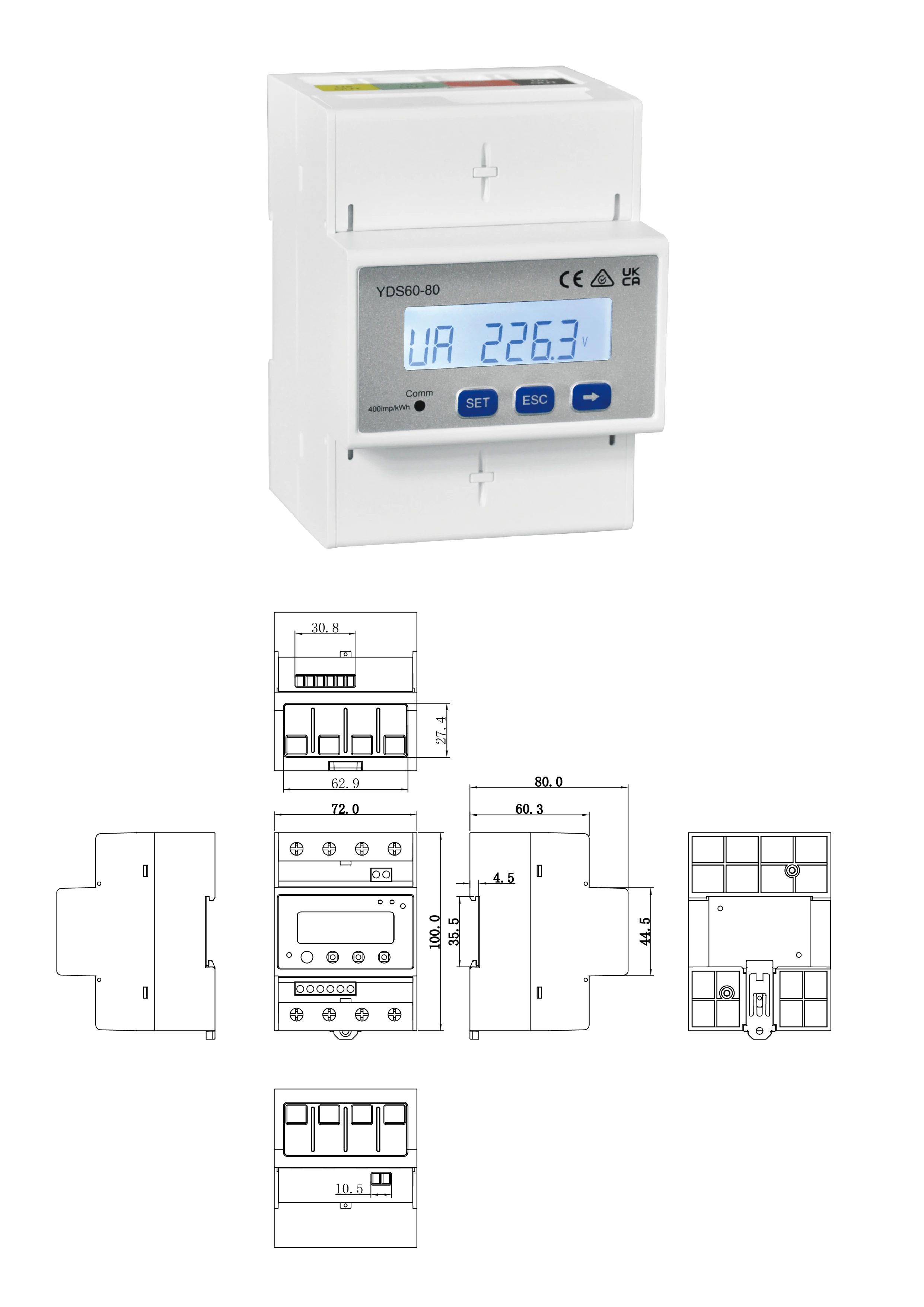

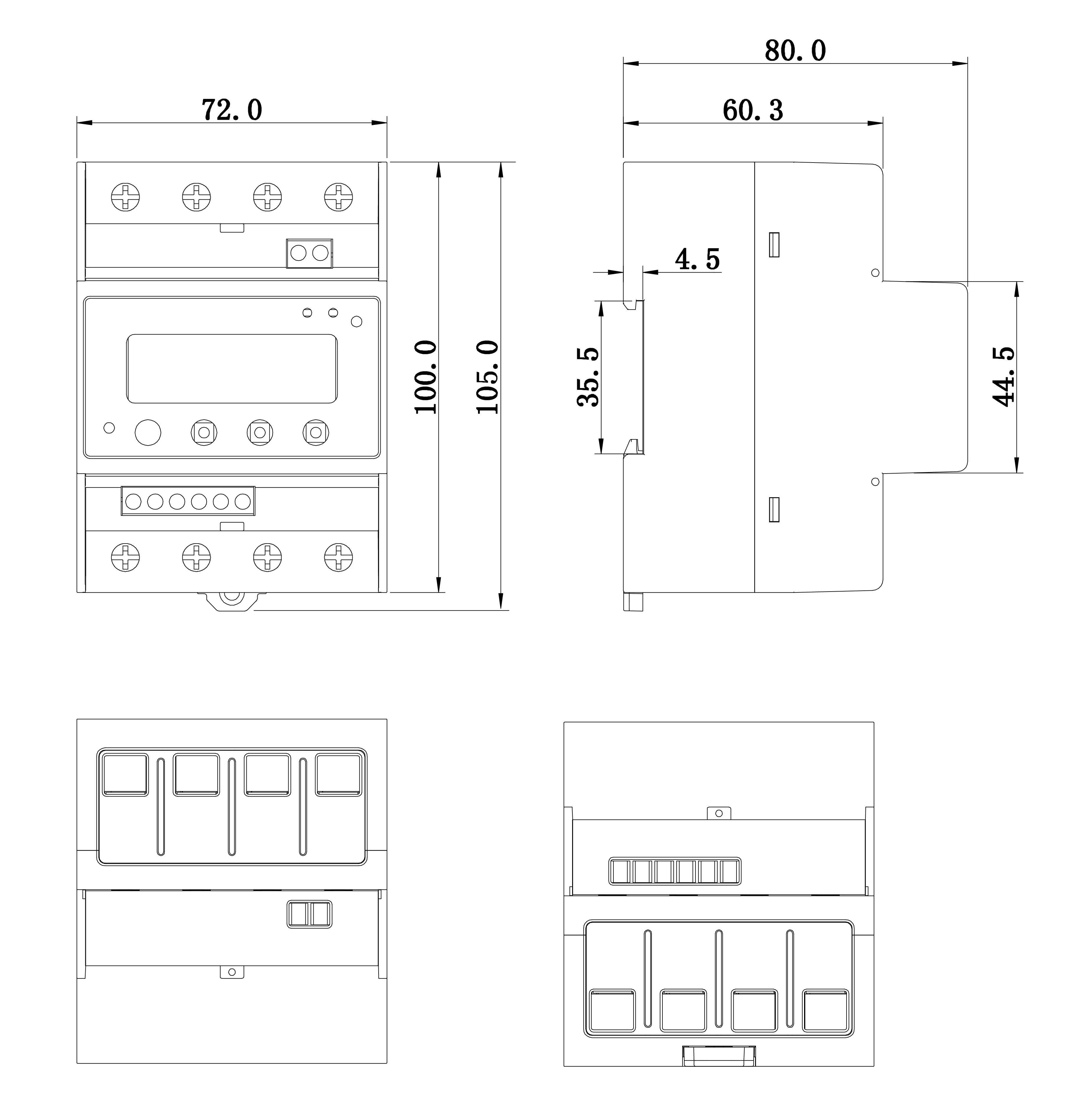

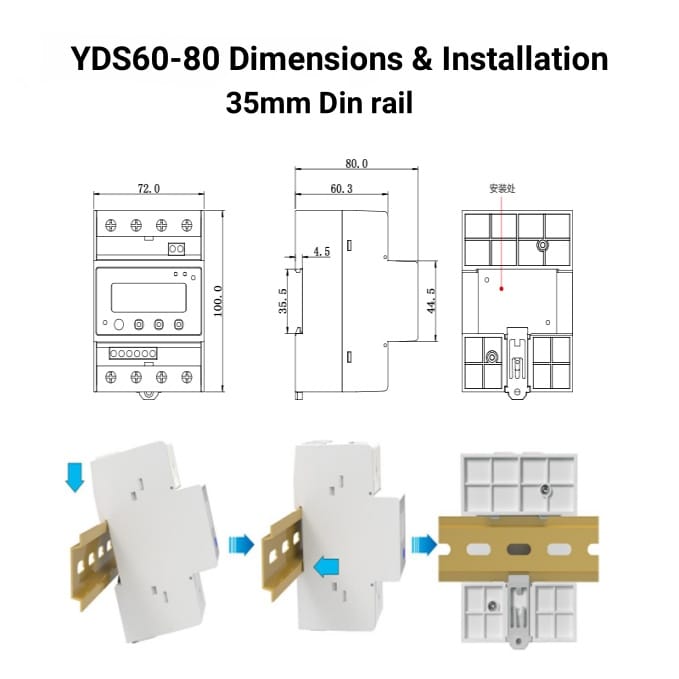

Dimension

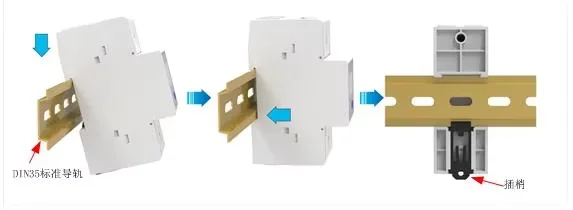

Installation with 35mm Din rail

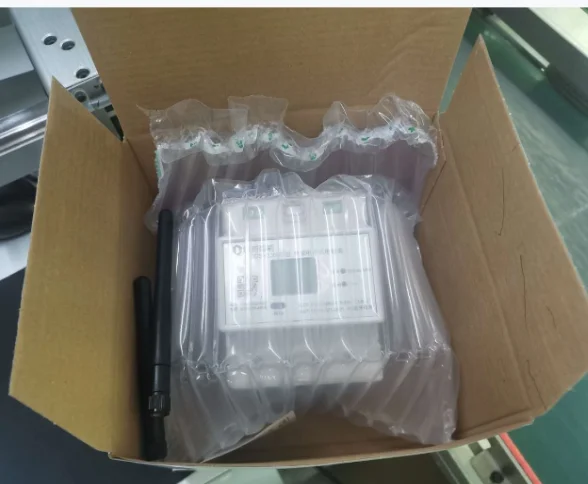

Packing
