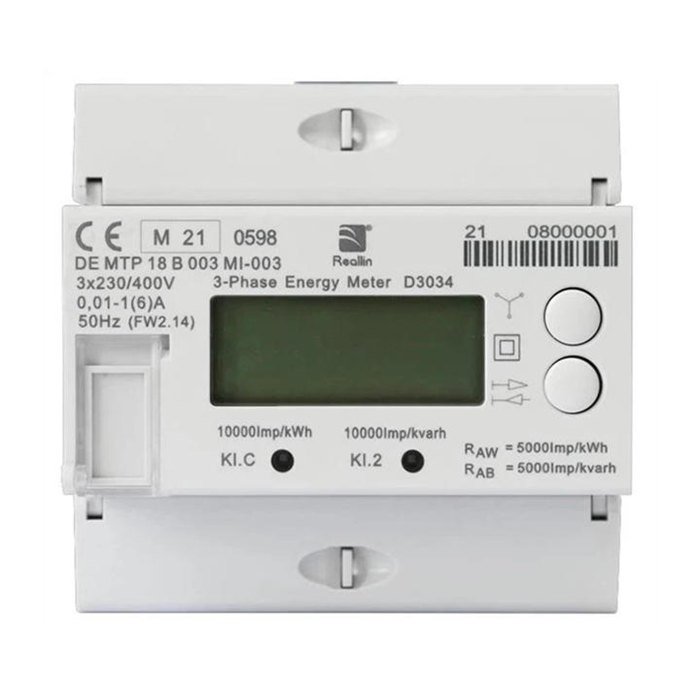

Reallin-D3034-Energy Meter-AC EV Charger
Type: Three Phase Four Wire DIN Rail CT Meter
Standards: EN 50470-1, EN 50470-3, IEC 62053-23
Voltage: 3x230/400V
Accuracy: Class C for active, Class 2 for reactive
Dimension(LxWxD): 86.0 x 87.5 x 62.0mm
Product Overview
The D3034 is an AC energy meter designed for electric vehicle charging stations and commercial sub-billing applications. Featuring a 5TE-wide DIN rail profile, the unit measures both active and reactive energy while providing comprehensive data analysis through monthly, load, and power quality (PQ) profiles. For secure operations, it integrates robust anti-tampering capabilities, including abnormality detection, event logs, and a sealable casing. The meter communicates via a standard Modbus interface and holds a MID certificate to ensure full compliance for legal billing.
Key Features
Measures both active and reactive energy to provide precise, comprehensive electrical data monitoring.
Features a standard 5TE-wide physical profile for straightforward integration into standard DIN rail electrical enclosures.
Includes a built-in Modbus interface to support seamless data transmission and system communication with charging station controllers.
Equips robust anti-tampering protection through hardware-level abnormality detection, dedicated event logs, and a sealable casing.
Generates detailed monthly, load, and power quality (PQ) profiles to assist with precise billing and deep energy analysis.
Carries an official MID certificate to fulfill strict legal and regulatory compliance requirements for commercial sub-billing.
Technical Specifications

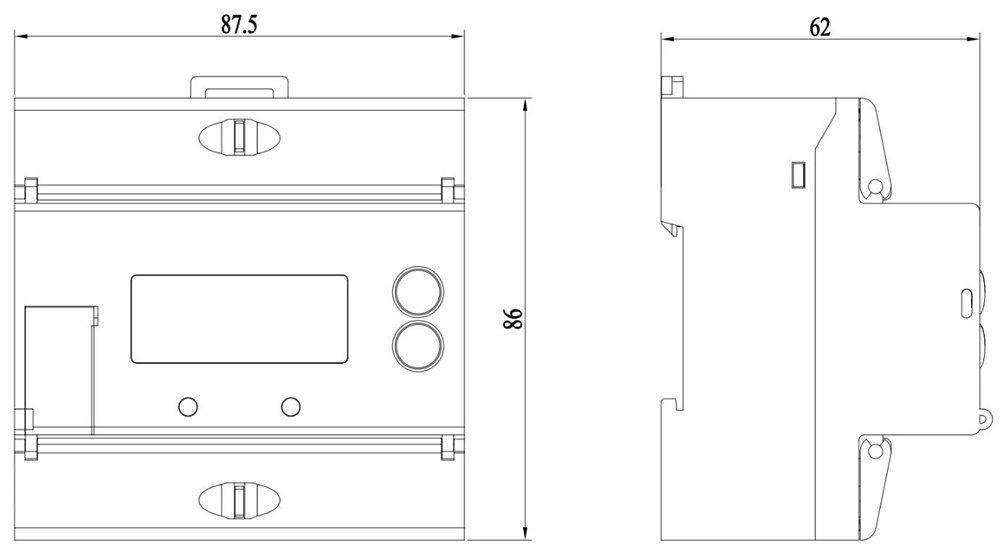

Dimensional Drawing
