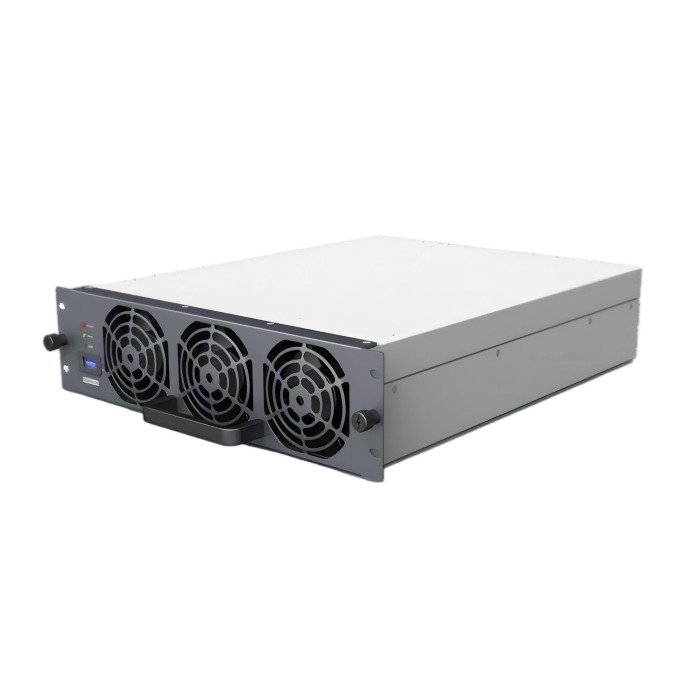

REG1K0100A2 30kW 1000V Rectifier Charging Module
Output power: 30 kW
Maximum current: 100 A
Constant power range: 300 VDC–1000 VDC
Dimensions: 84 × 300 × 395
Application scenario: Public charging services
Product Overview
The REG1K0100A2 is a DC charging module featuring a patented circuit design and innovative manufacturing processes. It offers advantages such as a wide constant-power voltage range, high efficiency, high power factor, high power density, robust protection, high reliability, low noise, and low harmonic distortion, effectively meeting the fast-charging requirements of various electric vehicles. Utilizing a three-phase AC input (without neutral), the module delivers an output voltage range of 50V to 1000V and an output power of 30kW, representing a world-class charging module.
Key Features
Energy Efficiency & Eco-friendliness: High-efficiency operation across the full load range and ultra-low standby power consumption; 95% full-load efficiency effectively reduces energy loss, promoting energy conservation and environmental protection.
Wide Input Voltage Range: 260Vac–530Vac (AC), adaptable to diverse grid environments.
Three-Phase AC Input (No Neutral): Simplifies system design, eliminates the risk of excessive neutral current, and reduces system costs.
Fully Digital Control: Dual-DSP design enables fully digital control of the charging module, ensuring high control reliability.
Battery Reverse-Feed Protection: Effectively protects the battery while ensuring reliable and safe system operation.
High Power Density: 49.4 W/in³; saves internal space and reduces the charging station's footprint.
Reliable Certification: Certified by KAPE and the State Grid Electric Power Research Institute (GEPRI).
Technical Specifications
Unique Features
Isolated Airflow & Potting: The isolated airflow design enhances heat dissipation efficiency, while the potting process significantly improves protection against salt spray, moisture, and mold.
Wide DC Output Voltage Range: 50 VDC–1000 VDC, meeting the fast-charging requirements of various electric vehicles and battery packs.
Wide, Continuous Constant-Power Voltage Range: Continuous constant-power output from 300 VDC to 1000 VDC ensures stable, reliable, and safe charging with high performance and speed.
Ultra-low Standby Power Consumption: Less than 9 W.
Built-in Intelligent Discharge Circuit: Automatically dissipates residual charge, simplifying system design and enhancing system reliability.
High Efficiency Across the Full Load Range: Operates with high efficiency across the entire load range; this is more energy-efficient than industry alternatives that achieve peak efficiency only at low loads and suffer from reduced efficiency during full-load charging.
Wide Operating Temperature Range: -40°C to +75°C (with output derating above +55°C), suitable for diverse application scenarios.
Applications
Charging piles for public stations
Charging and battery-swapping equipment for heavy-duty trucks
Liquid-cooled supercharging systems
Solar-plus-storage supercharging systems
