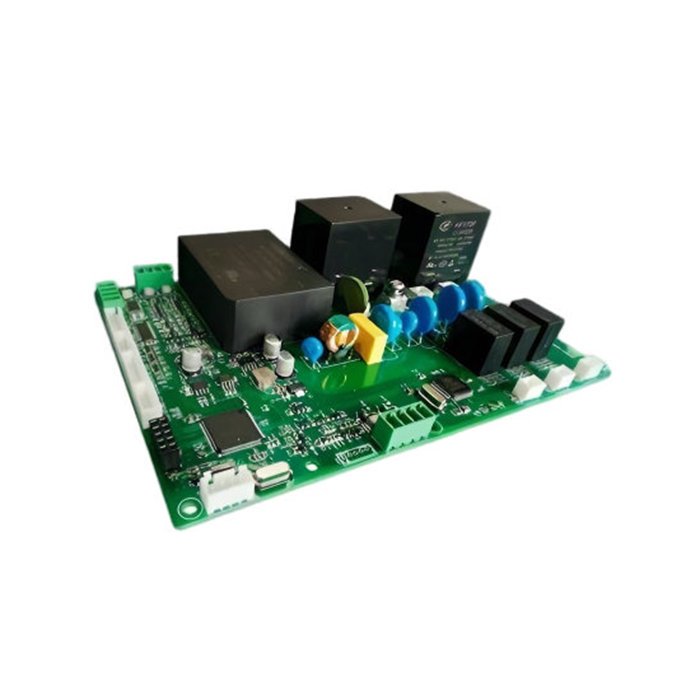

Main control board- CE AC EV Charger-Customized

Model: AC Charger OB
Power: 7kW/11kW/22kW
Input Voltage: 220V ± 10%
Input Current: 0~32A
Board Size: 182mm*125mm

Product Overview

The mainboard adopts a high-reliability integrated power supply module, which supports a variety of charging methods such as plug and charge, swipe card, and scan code. It contains a high-precision metering unit, supports multi-time and multi-rate charging mode, and integrates multiple protection functions such as emergency stop, door opening alarm, overvoltage, undervoltage, overcurrent, undercurrent, CP pin break, CP grounding, etc.

Technical Specifications

Model	AC Charger OB
Power	7kW/11kW/22kW
Input Voltage	220V ± 10%
Input Current	0~32A
Card reader interface	RS232 Support Shoudian/Custom Protocol
Display interface	TTL Support 4.3 “color display
Indicator port	RGB：G(Free) B(Charging) R(faulting)
Emergency DI Interface	Normally open
Threshold DI Interface	Normally open
Onboard measurement	Supported，Accuracy level 2.0
External meter interface	Supported，RS485，DL/T645-2007 Communication protocol
Leakage detection	TypeA+DC6mA
Network communication interface	Opention Ethernet /4G/ Bluetooth /WIFI
Working Temperature	-20°C ~ 60°C
Storage Temperature	-40°C ~ 85°C
Board Size	182mm*125mm
Compliance with lead-free requirements/Compliance with Restriction of Hazardous Substances Directive (RoHS) specifications	unleaded/Compliance with the Restriction of Hazardous Substances Directive (RoHS3)
