Main control board-DC Split type EV Charger-Customized

Model: Split type DC Charger
Power: Standard 360kW/480kW，Can extend to 270kW~1080kW
Input Voltage: 12V
Input Current: ≥2A
Board Size: 186mm*106mm

Send Inquiry

Product Overview

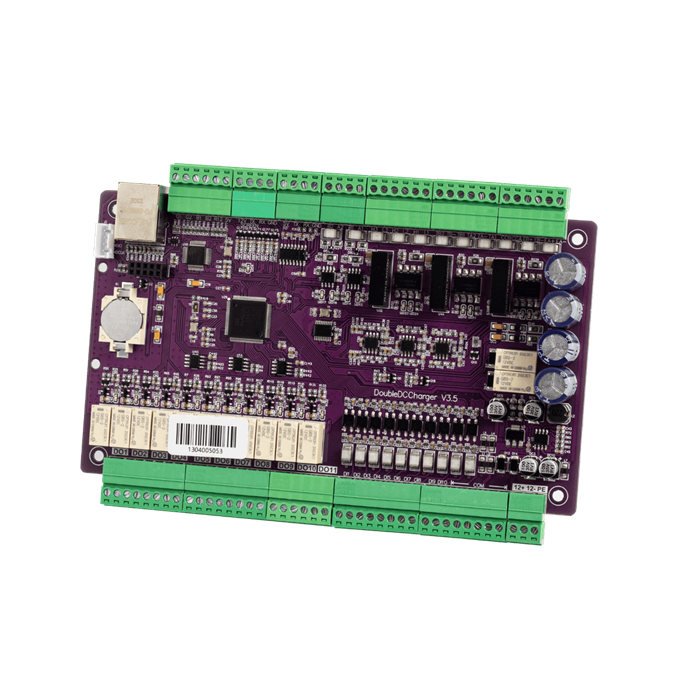

The mainboard has multi-way DI, DO, digital communication, analog sampling interface, support VIN code, swipe card, scan code, reservation, double gun to charge a car and other charging methods, including electronic lock control unit, support multi-time multi-rate charging mode, integrated emergency stop, door open alarm, overvoltage, undervoltage, overcurrent, overtemperature and other protection functions.

Technical Specifications

Model	Split type DC Charger
Power	Standard 360kW/480kW，Can extend to 270kW~1080kW
Terminal quantity	4~8 circuits、Can extend to 16 circuits，Typical 360 one-to-six、480 one-to-eight
Liquid cooled supercharge	Support, Maximum current 600A
Input Voltage	12V
Input Current	≥2A
Card reader interface	RS232 Support Shoudian/Custom Protocol
Display interface	TTL Support 4.3 “/7” color touch screen
Indicator interface	Dual Channel RGB, G(Free) B(Charging) R(Faulting)
Emergency DI interface	1 Circuit, Normally Open
Threshold DI interface	1 Circuit, Normally Open
DC contactor DI interface	2 Circuits, Detect the feedback signal of A/B gun DC contactor respectively
AC contactor DI interface	1 Circuit, Normally Open
Electronic lock feedback DI interface	2 Circuits, Detect the feedback signal of A/B gun electronic lock respectively
Flexible power switching DI interface	3 Circuits, Normally Open，Supports two -, three -, and four-segment adhesion detection
Auxiliary power DO interface	4 Circuits, Backbone Node; 2 Circuits, Control A/B gun 12V respectively，2 Circuits, Control A/B gun 24V respectively
DC contactor DO interface	2 Circuits, Backbone Node, Control A/B gun DC contactors respectively
Flexible power switching CAN interface	Chinese Standard State network protocol switching unit
AC contactor DO interface	1 Circuit, Backbone Node
Fan DO interface	1 Circuit, Backbone Node
Electronic lock control interface	2 Circuits, control A/B gun electronic lock respectively, Impulse type，Supports automatic unlock after power failure
Temperature monitoring of charging gun AD interface	4 Circuits, A/B gun DC+ and DC- PT1000 real-time detect
Onboard CAN interface	3 Circuits; 1 Circuit, 125K Connect to power module，2 Circuits, 250K Connect to A/B BMS respectively
External meter interface	Support，RS485，DL/T645-2007 Communications Protocol
Network communication interface	Opention, Ethernet/4G/bluetooth/WIFI
Working Temperature	-20°C ~ 60°C
Storage Temperature	-40°C ~ 85°C
Board Size	186mm*106mm
Compliance with lead-free requirements/Compliance with Restriction of Hazardous Substances Directive (RoHS) specifications	unleaded/Compliance with the Restriction of Hazardous Substances Directive (RoHS3)
