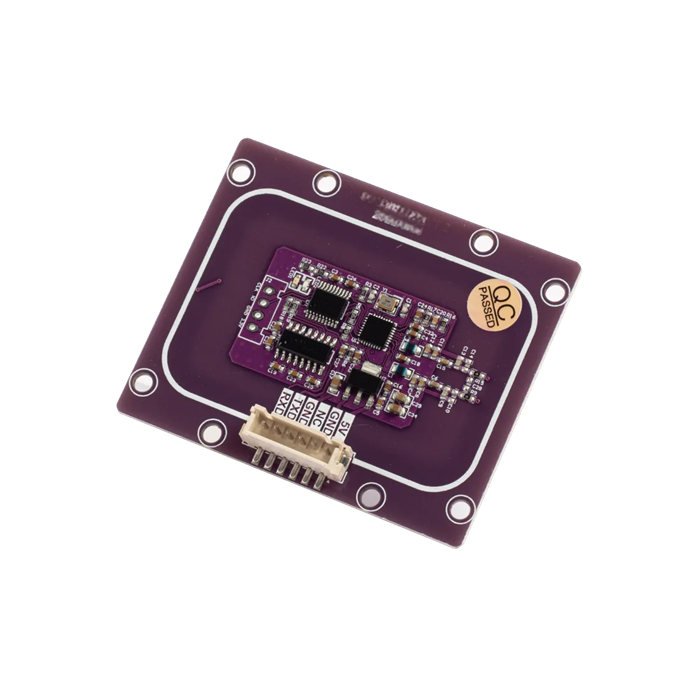

RFID board- CE EV Charger-Customized

Operation frequency: 13.56MHz
Card reading distance: ≈ 6CM（Depends on the environment, card and power supply）
Input Voltage: 5V
Communication interface: RS232 Default 115200,none
Board Size: 70mm*58mm

Send Inquiry

Product Overview

The contactless IC card read/write module operates on a 5V power supply and features an RS232 serial communication interface. It supports both proprietary and industry-standard protocols, and enables reading and writing of MIFARE ONE (MF1) cards compliant with the ISO14443 standard.

Technical Specifications

Standard	ISO14443 TypeA / mifare one
Operation frequency	13.56MHz
Card reading distance	≈ 6CM（Depends on the environment, card and power supply）
Input Voltage	5V
Communication interface	RS232 Default 115200,none
Working Temperature	-20°C ~ 60°C
Storage Temperature	-40°C ~ 85°C
Board Size	70mm*58mm
Compliance with lead-free requirements/Compliance with Restriction of Hazardous Substances Directive (RoHS) specifications	unleaded/Compliance with the Restriction of Hazardous Substances Directive (RoHS3)
