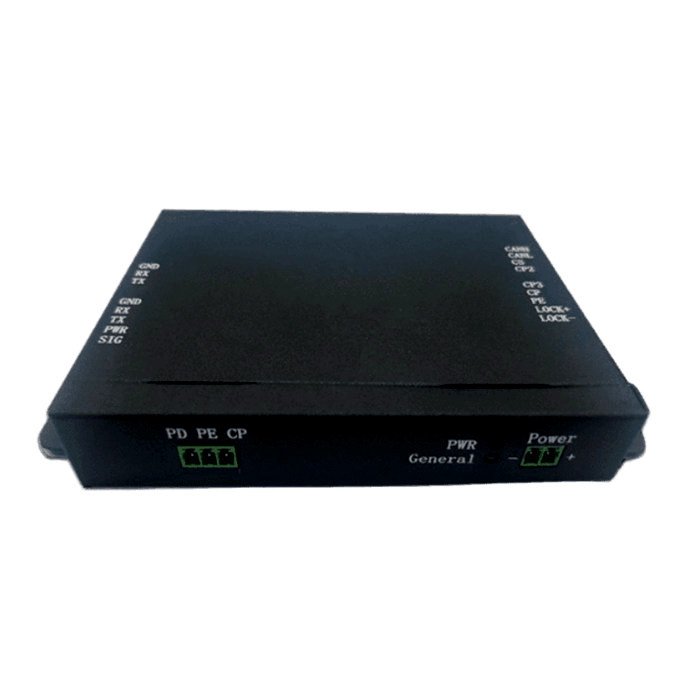

SECC 2.0 Charging Communication Board For EV Charger

IEC 61851-1:2010
ISO 15118-1:2013
ISO 15118-2:2014
ISO 15118-3:2015
DI N 70121:2014

Product Overview

SECC 2.0 developed by our company, the product is optimized based on the firstgeneration SEC C 1.0 product, Remove the extended hardware interfaces (such as voltageand current temperature detection), Add some necessary functional circuits and hardwareinterfaces (such as to meet the charging requirements of the American standard, Added acircuit CC signal measurement circuit, Increased storage capacity, Can realize various logsand record storage, etc.), And reduced the size of the circuit board, At the same time, itadded the support for ISO15118 DC EIM and AC EIM protocol on the software, So that it canalso be applied to AC charging piles.

Reference Standard

IEC 61851-1:2010
ISO 15118-1:2013
ISO 15118-2:2014
ISO 15118-3:2015
DI N 70121:2014

Technical Specifications

Power Supply Voltage	9~28 VDC, with a typical value of 12VDC/24VDC
Power Consumption	5W
Ambient temperature	-40℃~+85℃
CAN Interface (Main)	1-way CAN channel for main controller communication and firmware upgrades.
RS232 Interface	1-channel RS232 port dedicated to log output and system software upgrades.
Temperature Monitoring	2-channel temperature sensor inputs for charging gun thermal monitoring (Optional: Reserved interface customizable for welding/non-welding).
Zero-Crossing Detection	Reserved zero-crossing detection interface fully compliant with industry standards.
CAN Bus Protocol	CAN 2.0 interface supporting adjustable baud rates of 100 / 125 / 250 / 500 kbps.

Function

Support DIN7012-2014 DC charging protocol;
Support ISO15118-2014 DC EIM DC charging protocol;
Support ISO15118-2014 AC EIM AC charging protocol;
Support for IEC61851-1 BC mode AC charging;
DIN 70121 Agreement and IS015118 protocol can be automatically selected;
AC charging and DC charging mode are configured by software parameters or hardware switches;
AC charging AC EIM, mode and BC mode automatic selection;
The communication protocol with the main control of the charging pile is a custom protocol, which can be expanded according to the requirements;
Real-time output of diagnostic information from the serial port to facilitate fault diagnosis;
Can record the fault and event log, can download the log from the serial port or CAN port.
