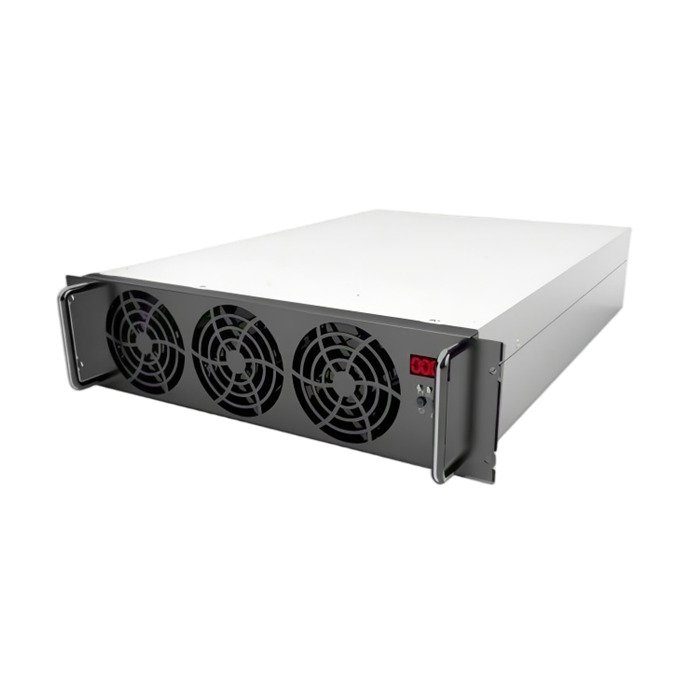

Megmeet MIPC1000-100 Charging Module

Model: MIPC1000-100
Input voltage range: 280 ~ 480 VAC
Output voltage range: 150 ~ 1000 VDC
Rated power: 30 kW
Protection rating: IP20

Send Inquiry

Product Overview

Ultra-wide output voltage range, series models meet CE and UL certification. Full digital control, super protective measures, unique automatic paint dipping process, special protection for key device pins; built-in bleeder circuit, anti-reverse diode, saving the space of the whole pile and simplifying the complexity of the system. Support software grouping, one CAN controls multiple outputs; input over voltage/under voltage protection, output over current/short circuit protection, overheat protection.Fully applicable to super high-voltage fast charging charging network, mobile charging technology and other fields, fully adapting to super high-power fast charging routes.

Technical Specifications

AC Input
Input Voltage Range	Three-phase and four-line 323~456VAC (rated) 280~480VAC (voltage range)
Maximum Input Current	<57A
Frequency Range	50Hz/60Hz ±5%
Power Factor	>0.99 @ full load >0.98 @ half load
Harmonic Current	<5% @ Half Load ~ Full Load @ 380Vac
Efficiency	Up to 95%
DC Output
Output Power	30kW
Output Voltage Range	150~1000V
Constant Power Output Voltage Range	300~1000V
Output Current	≤100A
Equal Current Unbalance	≤±5%
Stabilized Voltage Precision	≤±0.5%
Stabilized Current Precision	≤±1% (20%~100% rated load)
Output Voltage Setting Error	≤±0.5%
Monitor
Communication	CAN
Maximum Number of Simultaneous Machines	31
Working Condition Indicator	Green Light - Normal Yellow Light - Alarm Red Light - Fault
Working Environment Conditions
Working Temperature	-20℃~+75℃ (start-up at -40℃)
Storage Temperature	-40℃~+75℃
Relative Humidity	10~95% No Condensing
Cooling Mode	Intelligent Air Cooling
Altitude	≤2000m without derating >2000m, the working temperature of every 100m is reduced by 1℃
Product Reliability and Safety
MTBF	>500,000 hours
Insulation and Voltage Resistance	4.2kVDC – Input to Output 2.1kVDC – Input to FG 2.1kVDC – Output to FG 4.2kVDC – Input to CAN 2.1kVDC – Output to CAN
Warning and Protection
Input Over/Under Voltage Protection	Automatic shutdown protection, resume working automatically after normal input
Output Overvoltage Protection	Automatic shutdown and lock, power on again to resume operation
Output Overcurrent and Short Circuit Protection	Automatic shutdown and lock, power on again to resume operation
Overtemperature Protection	Automatic shutdown protection, automatically resumes working after normal temperature
Shape Size and Weight
Size	300×84×437.5mm (WHD, handle excluded)

Applications

Widely used in charging fields such as electric vehicles and construction machinery vehicles
