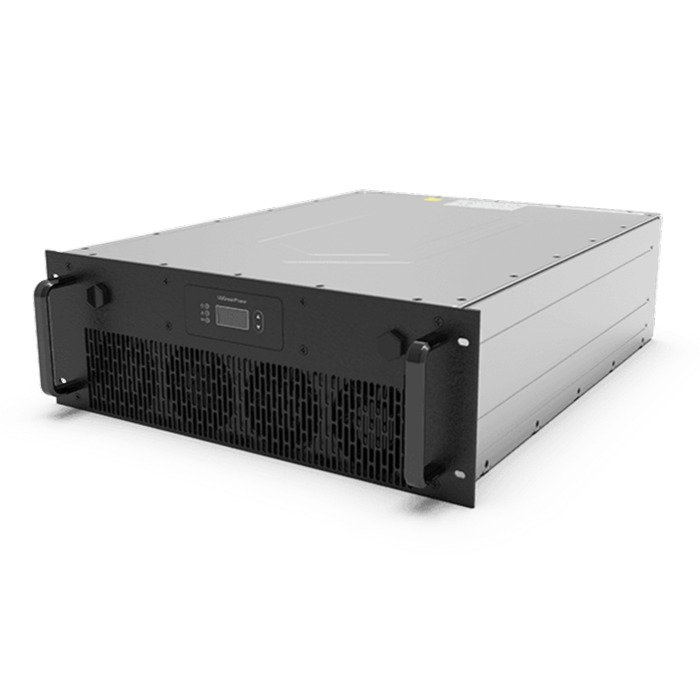

UUGreenPower UR100040-IP65 EU 40kW IP65 DC Charging Module

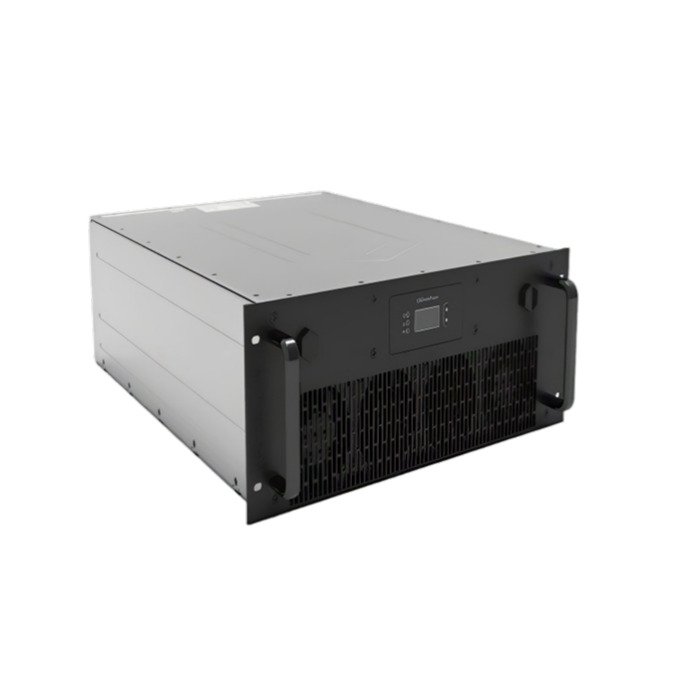

UR100040 Charging Module

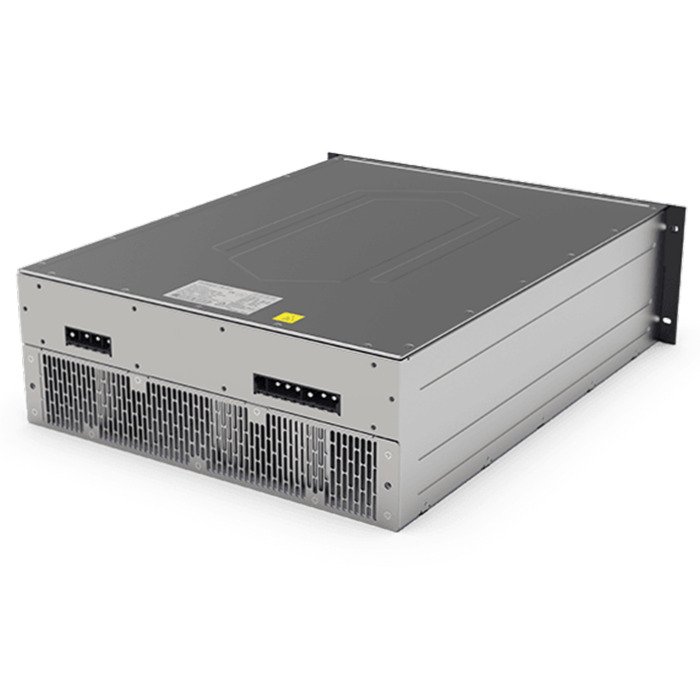

40kW IP65 DC Charging Module

UUGreenPower UR100040-IP65 EU 40kW IP65 DC Charging Module

Type: UR100040
Input voltage range: 260VAC~530VAC
Output voltage range: 150V~1000V
Rated power: 40kW
Protection rating: IP65
Dimensions/weight: 400mm (W) *148mm (H) *525mm (D), ≤35 kg

Send Inquiry

Product Overview

UR100040-IP65（EU） DC Charging module is a high performance charging module designed by UUGreenPower, especially for harsh environment. Protection level up to IP65, widely used in high temperature, high humidity, high salt fog, rain water condensation and other terrible environments; can greatly simplify the protective design requirements of charging station, reduce the design cost; high reliability, maintenance free, 5-year warranty, greatly reducing the daily maintenance and TCO.

Key Features

Compatibility: Same size as 30kW module, support smooth system upgrade.
Easy to operate: LED screen can display voltage, current, group, protocol, address, manual/automatic information and various alarm information.
High reliability: Input and output multiple protection, input overvoltage and undervoltage, output overvoltage and undervoltage.
Ultra-high power density: The highest power density in the industry.

Technical Specifications

Environmental
Operating temperature-30℃~75℃,derates from 55℃
Overtemperature protectionOn temperature >75°C±4°C or <-30°C±4°C, module will shut down automatically
Storage temperature– 40°C~85°C
Humidity≤95% RH, without condensation
Atmospheric pressure/ Altitude79kPa~106kPa
AC Input
Input voltage260VAC~530VAC
Input frequency55±10Hz
THD≤5%
Power factorRated output load PF ≥ 0.99
Max. input current<80A
Input under voltage protection255±5V, backlash≥15V
Input over voltage protection530±5V, backlash≥15V
Input Power Derating260±5V
DC Output
Rated output1000V/40A
Constant power voltage range40kW (300V~1000V)
Output voltage range150V~1000V
Output current range0~133.3A
Output over voltage protection1010±5V
Output under voltage alarm Constant140±2V
Short circuit protectionShort circuit retraction constant current output is adopted in case of short circuit, which can be recovered automatically
Voltage stabilized accuracy≤±0.5%
Load sharing≤±3%
Max. startup overshoot≤±1%
Current stabilized accuracy≤±1%
Startup time1s
EfficiencyHighest efficiency>96%, rated efficiency>95%
Communication & Alarm
CommunicationCAN
Max. Number of parallel machines60pcs
Alarm and statusCAN bus communication, LED display
Physical Characteristics
Acoustic Noise＜65dB
CoolingFan cooling
Dimension400mm (W) *148mm (H) *525mm (D)
Weight≤35kg
