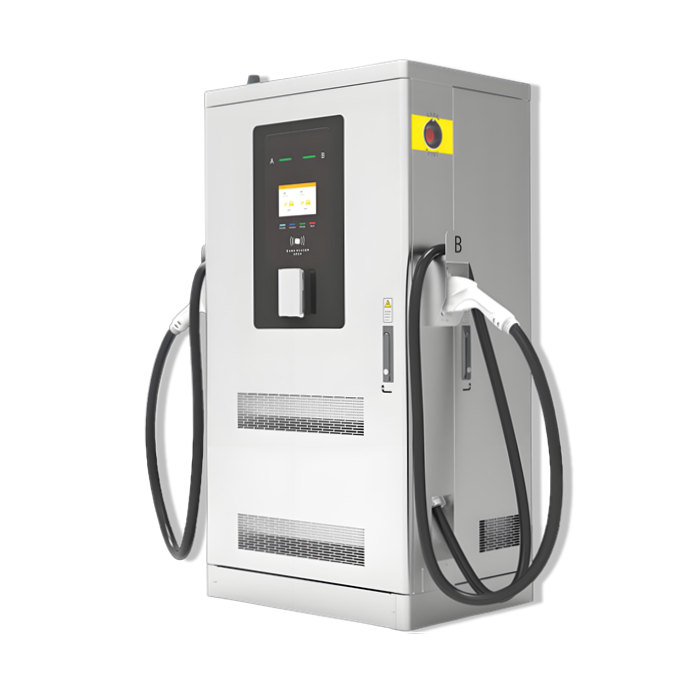

160kW DC Charger Solution
Model: XEV160DC
Input Configuration: 3P+N+PE
Input Voltage Range: 380Vac/400Vac ±10%
Rated Output Power: 160kW
Dimension (W*D*H): 850mm × 600mm × 1600mm
Weight: ≤300kg
Product Overview
The XEV160DC integrated charger by XY Power combines fast charging, intelligent control, metering, and advanced human-computer interaction into a single, robust unit. Specifically engineered for high-power scenarios, this solution delivers reliable performance for public stations, bus depots, and dedicated fleet hubs.
Key Features
Safety & Reliability——IP55 protection with funnel-shaped air ducts and high-density dust cotton. Potting-processed charging modules resistant to sand, dust, and salt spray. Zoned design for control and power units ensures high EMC robustness.
Smart Intelligence——Real-time status monitoring, remote fault diagnosis, and OTA firmware updates. AI-driven big data intelligent protection for cloud-edge safety collaboration. Intelligent work order system for 24/7 classified fault handling.
High Efficiency——Maximum system efficiency reaching 97% (peak). Dynamic power allocation to maximize equipment utilization based on vehicle demand. Compact footprint reducing overall construction and commissioning costs.
Advanced Software——Powered by RT-Linux OS running interaction, control, and connection on a single chip. Independently developed ISO 15118-2/DIN 70121 charging protocol stack for easy expansion.
Technical Specifications
Application Scenarios
Public Fast-Charging Stations: High-turnover locations requiring reliable 24/7 operation.
Dedicated Logistics Hubs: Efficient energy replenishment for commercial logistics.
Bus Stations: Heavy-duty charging for electric transit fleets.
