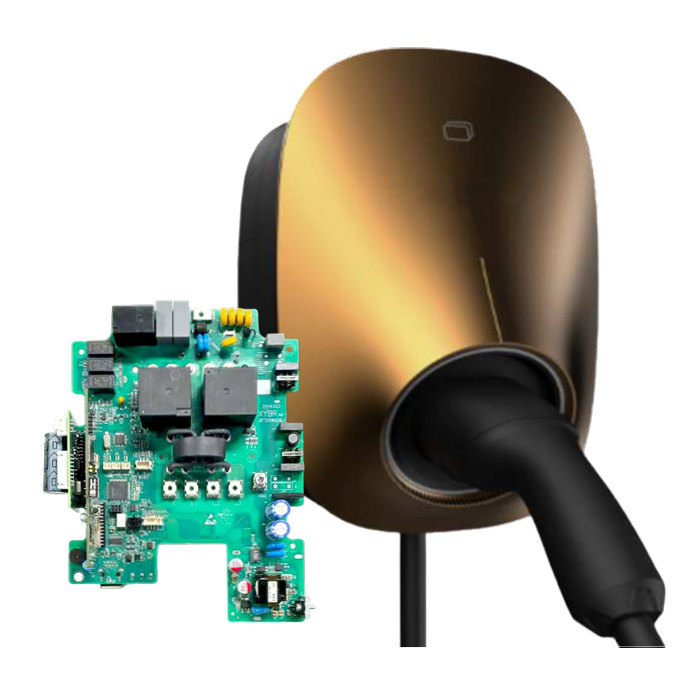

22kW AC Charger Solutions
Model: XEV22KWAC
Input Configuration: 3P+N+PE
Input Voltage Range: 400V (-20% ~ +15%)
Max Input Current: 32A (adjustable)
Power Accuracy: ≤ 1%
Product Overview
The XEV Series 22kW represents a new benchmark in AC charging technology, specifically engineered to meet European standards and global mobility demands. Combining technical precision with aesthetic versatility, these chargers are designed to integrate seamlessly into residential, commercial, and public environments.
Key Features
Safety & Reliability——IP54 (Socket) / IP55 (Cable) & IK10 impact resistance; DC 6mA residual current protection (RCD Type A); CE/CB/SASO standards compliance (IEC 61851)
Design & Versatility——Award-winning modular design (2024 Design Award); Customizable shells (Stainless steel, Glass, Carbon fiber); Compact dimensions (320mm * 200mm * 163mm)
Smart Technology——Multiple activation: RFID, App, QR Code, Plug & Play; Connectivity: WiFi, 4G, Ethernet, RS485 + OCPP 1.6J; OTA updates and precision power control (≤1%)
Easy Installation——Patented quick-install system (Wall-mount/Pedestal); Modular structure for hassle-free servicing; 7m high-quality charging cable included
Technical Specifications

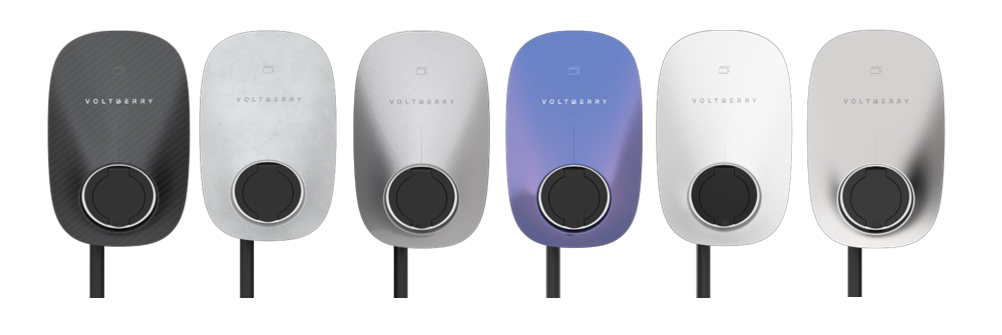

Multiple color options
Application Scenarios
Residential Garages: Space-saving wall-mounted installation.
Commercial Parking: Flexible pedestal placement with RFID management.
Public Charging Hubs: High-reliability and design-driven aesthetics for urban environments.
