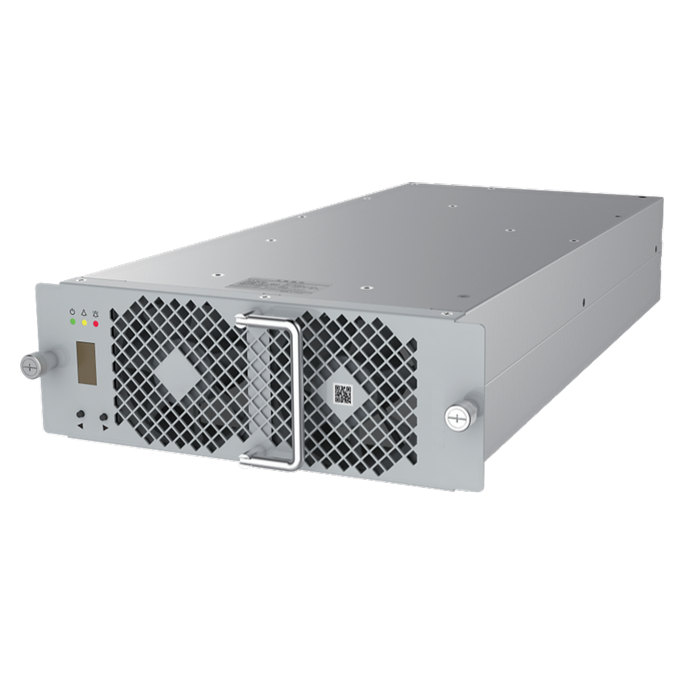

20kW ACDC Charging Module X20067S1

20kW AC/DC Charging Module X20067S1

Model: X20067S1
Output Voltage: 50-1000Vdc
Input Voltage: 260-485Vac
Constant Output Power: 20kW @300-1000Vdc
Dimension (W*D*H): 218mm × 458mm × 84mm
Weight: ≤12.5kg

Send Inquiry

Product Overview

The X20067S1 is an intelligent AC/DC charging module powered by dual-DSP all-digital control, fully compliant with the State Grid 'Three Uniforms' (Standardized Design) requirements. Built for robust environmental adaptability and high weighted efficiency, it offers extensive vehicle compatibility and low-noise performance. By enhancing the reliability and availability of the charging system, the X20067S1 provides a value-driven solution that benefits both operators and customers.

Key Features

High Efficiency——Peak efficiency ≥ 96.2%; Full-load efficiency of 95%.
Enhanced Reliability——Utilizes field-proven topologies and structural designs combined with comprehensive dynamic algorithm protection for exceptional reliability.
Low Energy Loss——Standby power consumption < 7W.
Wide Voltage Range——50-1000Vdc output voltage range, meeting the charging requirements of a broader range of vehicles.

Technical Specifications

DC Output
Output Voltage50-1000Vdc
Max Output Current66.7A
Constant Output Power20kW @300-1000Vdc
Voltage Regulation Accuracy≤±0.5%
Current Regulation Accuracy≤±1%
Voltage Ripple Factor≤1%
Current Sharing Unbalance≤±5%
Conversion EfficiencyPeak Efficiency: 96.2%; Full-load Efficiency: 95%
AC Input
Input Voltage260-485Vac
Input Connection3W+PE
Input Frequency50/60Hz ±5Hz
THDi≤3% @100% Load
Power Factor≥0.99 @100% Load
Protection
Module Over-temperatureAutomatic shutdown; auto-recovery to standby once temperature returns to normal.
Input Over/under-voltage, Phase LossAutomatic shutdown; auto-recovery to standby once input returns to normal.
Over-current, Short CircuitAuto-shutdown with latch-off
Output Over-voltageDual software and hardware protection
Communication
Communication InterfaceCAN
Max Connection Quantity60 Units
Address SettingDual-mode address setting via software or keypad.
Operation Condition
Operation Temperature-40-75℃, derating @Temp.＞55℃
Relative Humidity≤95% RH, NC
Altitude2000m, derating @alt.＞2000m
Cooling MethodForce-air cooling
General Specifications
Dimension (W*D*H)218mm × 458mm × 84mm
Weight≤12.5kg
Standby Power＜7W
Noise≤65dB @rated condition
MTBF＞500,000 hours

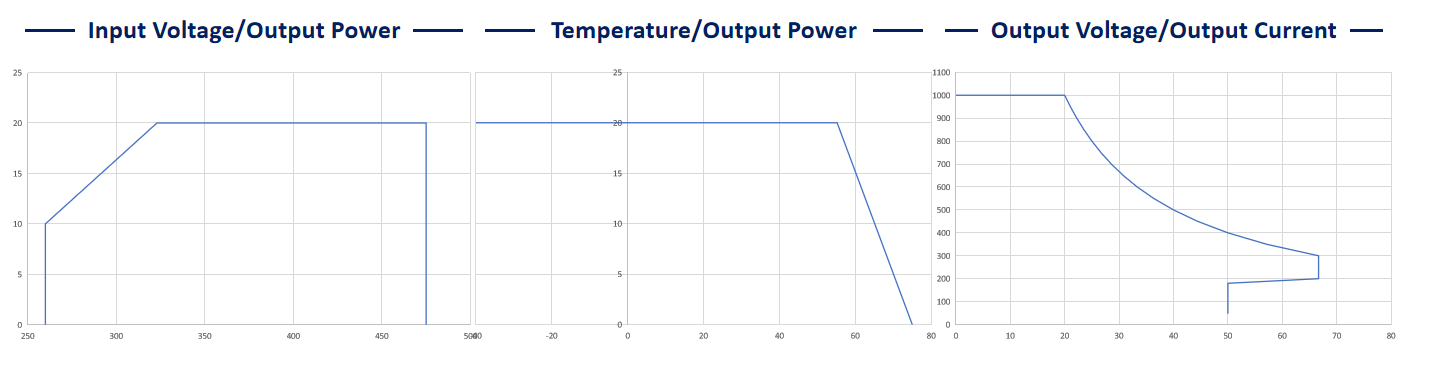

Performance Chart

Application Scenarios

Urban Public Fast-charging Stations
Commercial Complexes
Battery Swapping Stations
Highway Charging Stations
Specialty Vehicle Charging Stations
