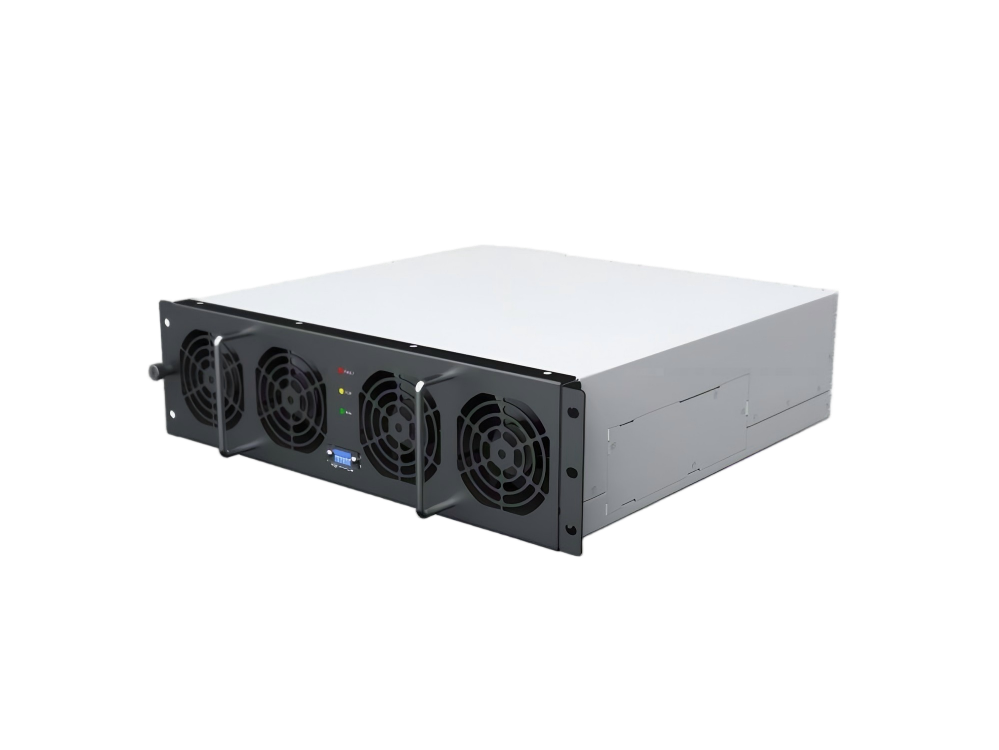

30kW 1000V Bidirectional ACDC Power Module-ev charger parts
| Parameters | |
| Environmental | |
| Ambient temperature/storage temperature | -40°C~+70°C, derating from 55°C/-40°C~+70°C |
| Humidity | ≤95%RH, non-condensing/2000m |
| AC to DC mode-AC input | |
| Rated input voltage & current range | 208V/380V/400V/480V, 3L+PE; 29A/46A/44A/37A |
| Input voltage/frequency range | 156~530Vac, 45 Hz~65 Hz |
| Power factor | ≥0.99 full-load output power @50%~100% |
| THD | ≤5% full-load output power @50%~100% |
| AC to DC mode-DC output | |
| Rated power | 30kW |
| Voltage and current range | 150Vdc~1000Vdc, 0~100A |
| Voltage stabilization accuracy | ±0.5% |
| Current sharing | ±1% (10%~100% load) |
| Voltage stabilization accuracy | ±0.5% |
| Current stabilization accuracy | ≤±1% (output power in 20%~100%) |
| Peak efficiency | >97% |
| Full load efficiency | >96.5% |
| AC2DC and DC2AC mode conversion time (battery test) | |
| Duration | 10ms |
| DC to AC mode – DC input | |
| DC input voltage and output power | From 1000 to 300Vdc, output power is full power 22kW/30kW From 300 to 150Vdc, output power is linear derating to half 11kW/15kW |
| Max input current | 100A |
| DC to AC mode – AC output | |
| Output AC voltage and output power | 530~360Vac, 30kW 360~260Vac, linear derating to 20.4kW 260~156Vac, linear derating to 10.5kW |
| Rated power | 30kVA |
| Output AC frequency | 50Hz/60Hz |
| THDi | <5% |
| Output power factor | User setting scale, 0.8~1, -0.8~-1 |
| Peak efficiency | >97% |
| Full load efficiency | >96.5% |
| Off grid 1/2/3P+N+PE-Voltage accuracy and distortion | 1% and <3% |
| Off grid 1/2/3P+N+PE-Power (3 phase/2 phase/single phase) | 27kVA/12kVA/6kVA (R load) |
| Off grid 1/2/3P+N+PE-Power factor | >0.7 |
| Off grid 1/2/3P+N+PE-Dynamic voltage stability and recovery time | 5% and 20ms |
| Control | |
| Communication | CAN2.0 |
| Indication light | Green LED: normal operation; yellow LED: alarm; red LED: failure |
| Alarm and Protection | |
| Input overvoltage/undervoltage protection | Automatic shutdown, automatic restart when voltage returns to normal |
| Output overvoltage protection | Automatic shutdown and lock |
| Over current/short circuit protection | Automatic shutdown and lock, power off to unlock |
| Over temperature protection | Automatic shutdown, automatic restart when temperature returns to normal |
| EMC / EMI | |
| Certification | IEC61000-6-1/2/3/4, Class B |
| Safety | |
| Standards | VDE-AR-N 4105, UL1741SB: 2021, CSA C22.3 No.9, EN50549-1/-2 |
| Mechanical | |
| Dimensions | 84mm (H) × 300mm (W) × 395mm (D), ≤17 kg |
| Ordering Information | |
| Type | BEG1K0100G |
