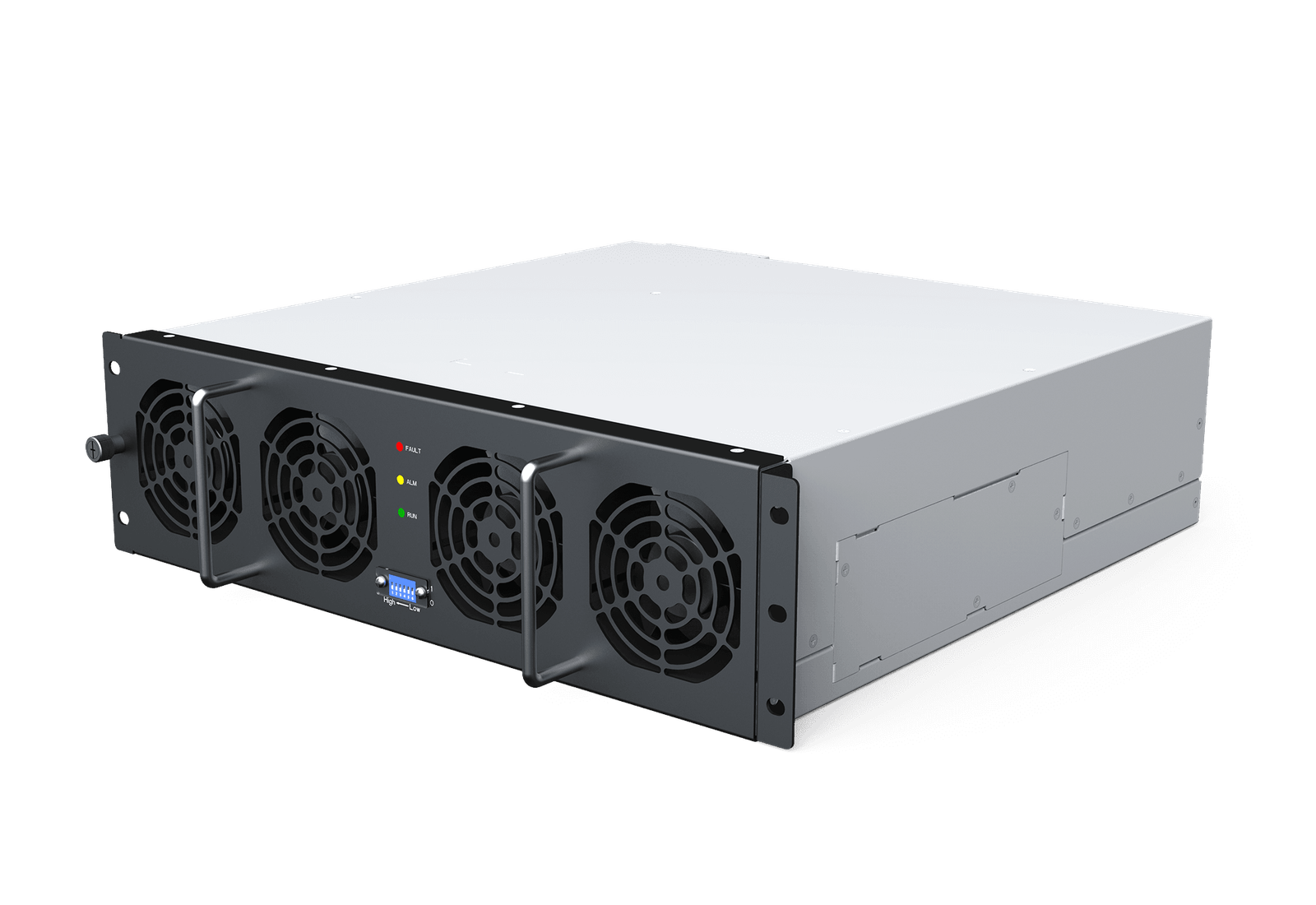

CEG1K0100G 30kW1000V DC2DC Charger Power Module
CEG1K0100G support MPPT function to introduce solar panel DC input and the module is perfectly compatible with ACDC Rectifier Module in the size, interface and protocol.
Features
- Full hot plug design
- A Maximum of 32 modules work simultaneously Inside high frequency isolation transformer
- Cover a wide range of voltage input and suits for multiple battery racks
- Offer smooth and flexible energy flow among Grid, battery, vehicle, and other loads
Parameters
Input voltage range：300Vdc~825Vdc
Output voltage range：50Vdc~1000Vdc, voltage adjustment step is 0.1Vdc
Constant power output voltage range：300Vdc~1000Vdc
Output power：30kW
Maximum output current：100A
Dimensions：110mm (height) ×385mm (width) ×390mm (depth) (excluding handle and protruding part of terminal)
DC input
Rated input voltage：700Vdc
Input voltage range：300Vdc~825Vdc
Maximum input current：50A
Efficiency (full load)：>95.5%
DC output
Voltage regulation accuracy：＜±0.5%
Current regulation accuracy：≤±1% (output load 20%~100% rated range)
Current sharing：Unbalance <±5%
Output current limit：0.2~100A continuously adjustable
Output current：0~100A
Constant power output voltage range：300Vdc~1000Vdc
Voltage range：50Vdc~1000Vdc, voltage regulation step is 0.1Vdc
Output power：30kW
Working environment
Relative humidity：≤95%RH, no condensation
Altitude：2000m, Derating is required for altitudes above 2000m
Cooling method：Forced air cooling
Operating temperature：-40℃～＋75℃, derating is required for altitudes above +55℃
Other parameters
Dimensions：110mm (height) × 385mm (width) × 390mm (depth) (excluding handles and protruding parts of terminals)
Weight: ≤22.5kg
Communication method: CAN bus
MTBF: >500,000 hours
Meeting standards: GB/T18487, NB/T33001, NB/T33008
