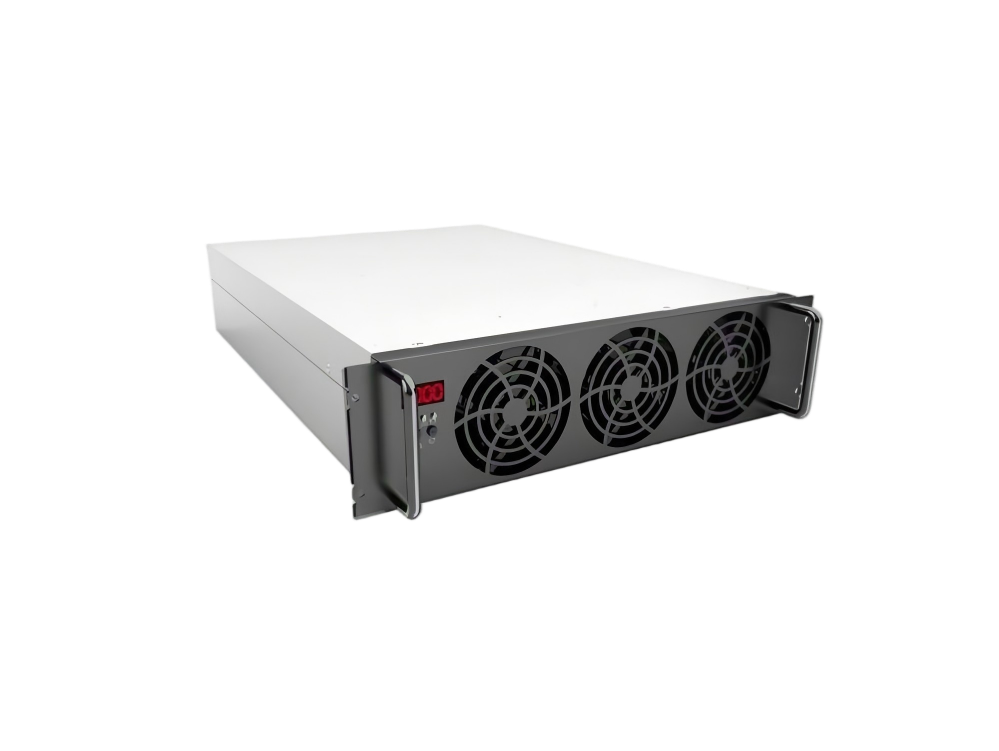

MIPC1000-100 Charging Module

MIPC1000-100 30KW Charging Module



Widely used in charging fields such as electric vehicles and construction machinery vehicles

Widely used in charging fields such as electric vehicles and construction machinery vehicles

Ultra-wide output voltage range, series models meet CE and UL certification. Full digital control, super protective measures, unique automatic paint dipping process, special protection for key device pins; built-in bleeder circuit, anti-reverse diode, saving the space of the whole pile and simplifying the complexity of the system. Support software grouping, one CAN controls multiple outputs; input over voltage/under voltage protection, output over current/short circuit protection, overheat protection.Fully applicable to super high-voltage fast charging charging network, mobile charging technology and other fields, fully adapting to super high-power fast charging routes.

重量 15.4 公斤
尺寸 30 × 8.4 × 43.75 厘米
Size

300x84x437.5mm(W*H*D handle excluded)

Communication

CAN

Output power

30KW
