MPS20020KT-C Charging Module

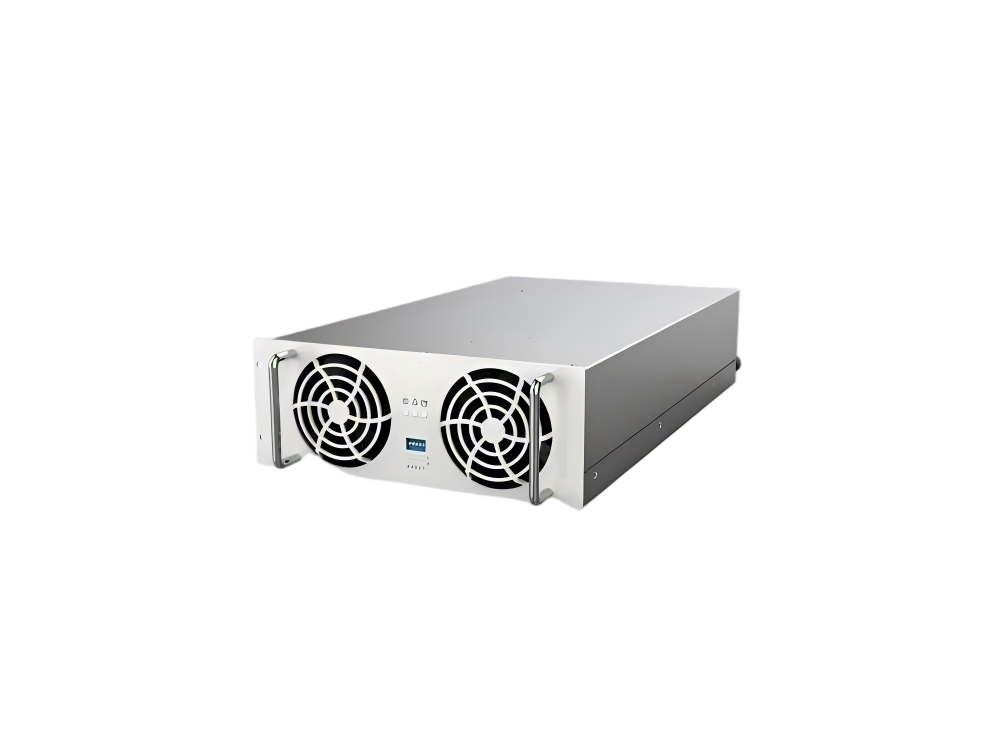

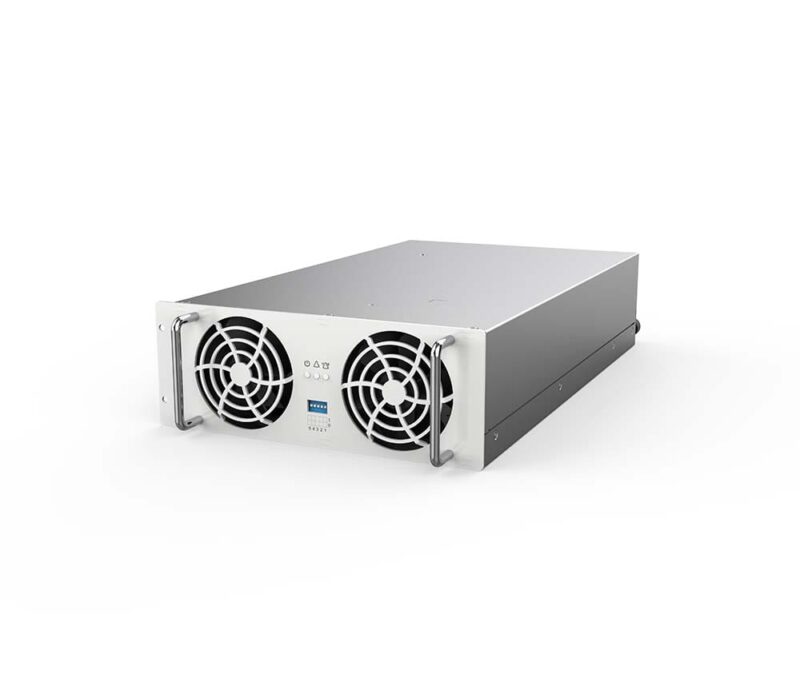

MPS20020KT-C 20KW Charging Module



Widely used in charging fields such as electric vehicles and construction machinery vehicles

Widely used in charging fields such as electric vehicles and construction machinery vehicles

Ultra-wide output voltage range, series models meet CE and UL certification. Full digital control, super protective measures, unique automatic paint dipping process, special protection for key device pins; built-in bleeder circuit, anti-reverse diode, saving the space of the whole pile and simplifying the complexity of the system. Support software grouping, one CAN controls multiple outputs; input over voltage/under voltage protection, output over current/short circuit protection, overheat protection.Fully applicable to super high-voltage fast charging charging network, mobile charging technology and other fields, fully adapting to super high-power fast charging routes.

重量 10.2 公斤
尺寸 22.6 × 8.5 × 39.5 厘米
Size

226x85x395mm(W*H*D handle excluded)

Communication

CAN

Output power

20KW
