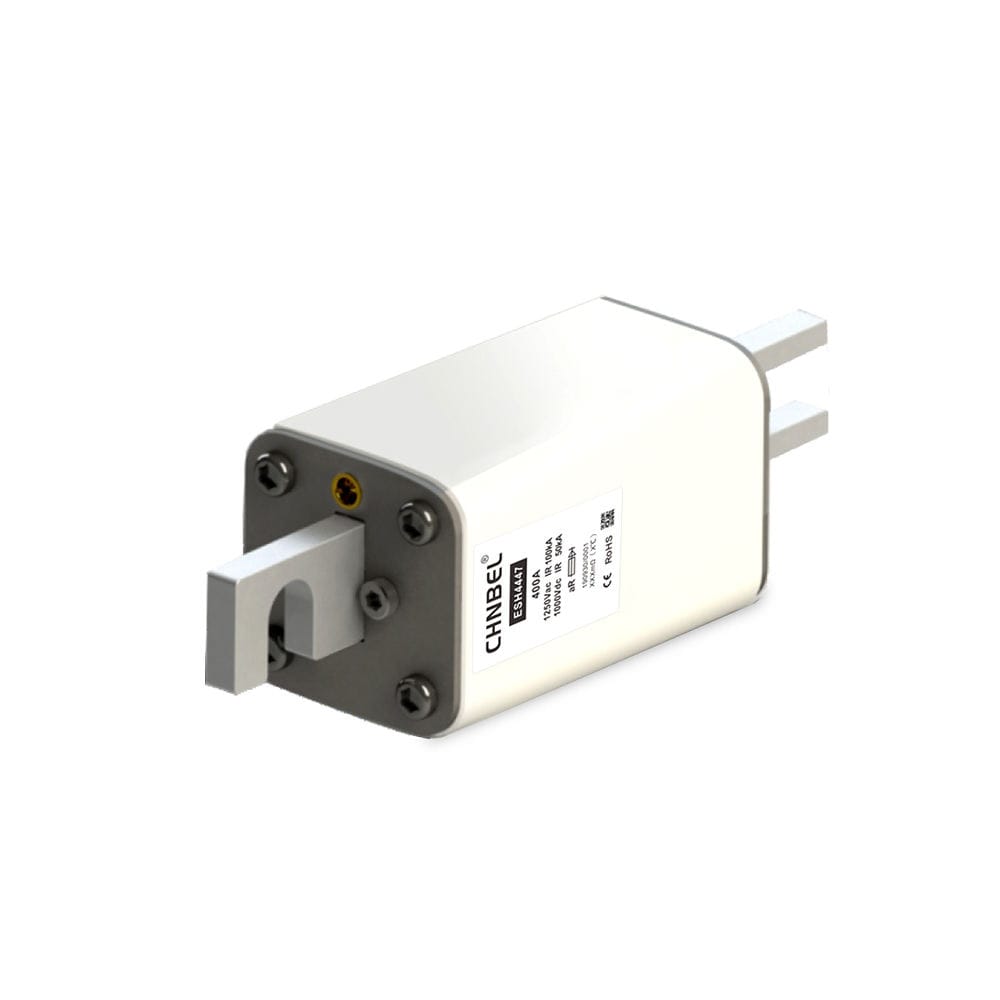

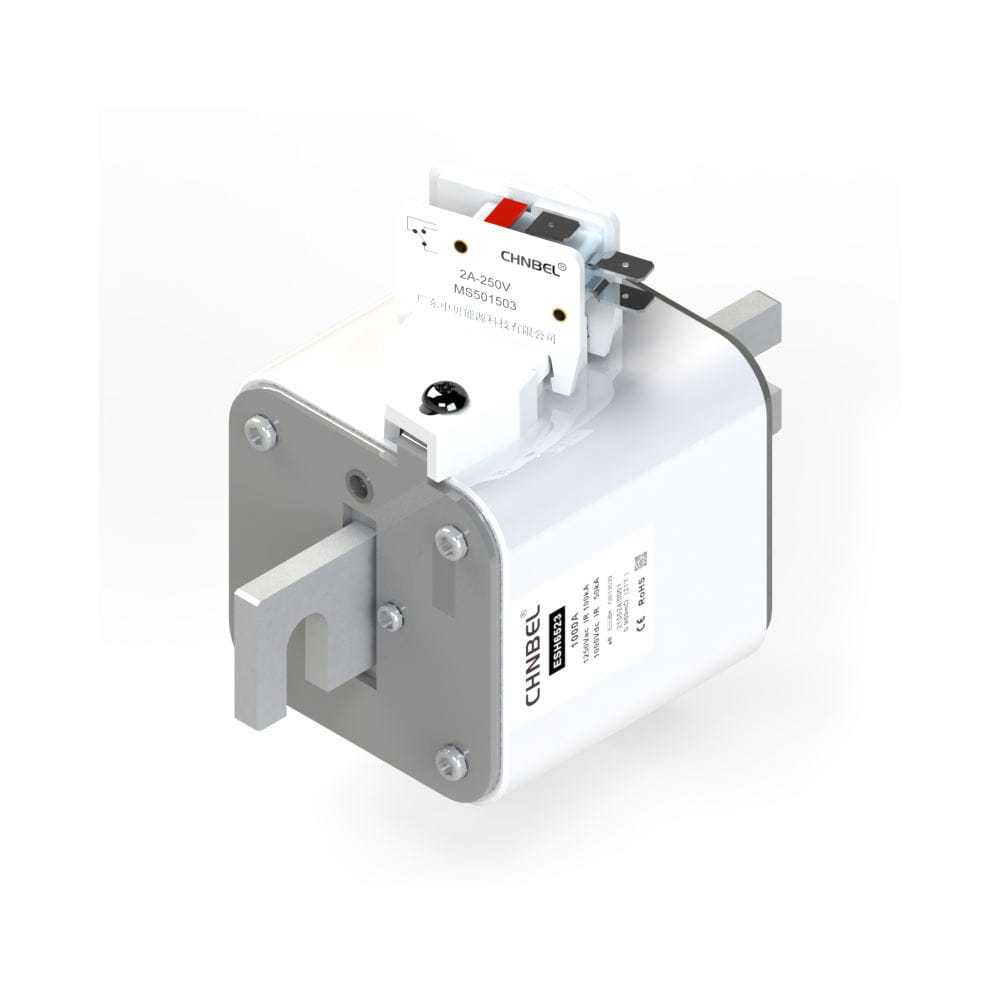

CHNBEL Ess Fuse 1250Vac/1000Vdc 100~400A UL IR 100kA size 1* (43x43mm) ESH3066~3073 (ESH3055~3062)
Product Presentation
Amps: 100~400A
Volts: 1250Vac/1000Vdc
Interrupting Rating: 100kA@1250Vac; 50kA@1000Vdc
Standards/Approvals for Reference:
²Designed to GB13539 / IEC60269; ²REACH declaration available upon request; ²CE; ²RoHS compliant.
Description: A range of square body fuses specifically
designed for semiconductor protection
Cross-section: 43x43mm(size 1*)

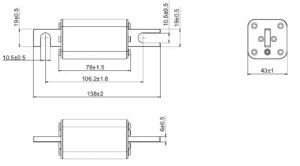

Demensions
Catalogue Numbers
| Items | Catalogue Numbers | Electrical Characteristics | Bolt Size | Installation torque (N.m) | ||||

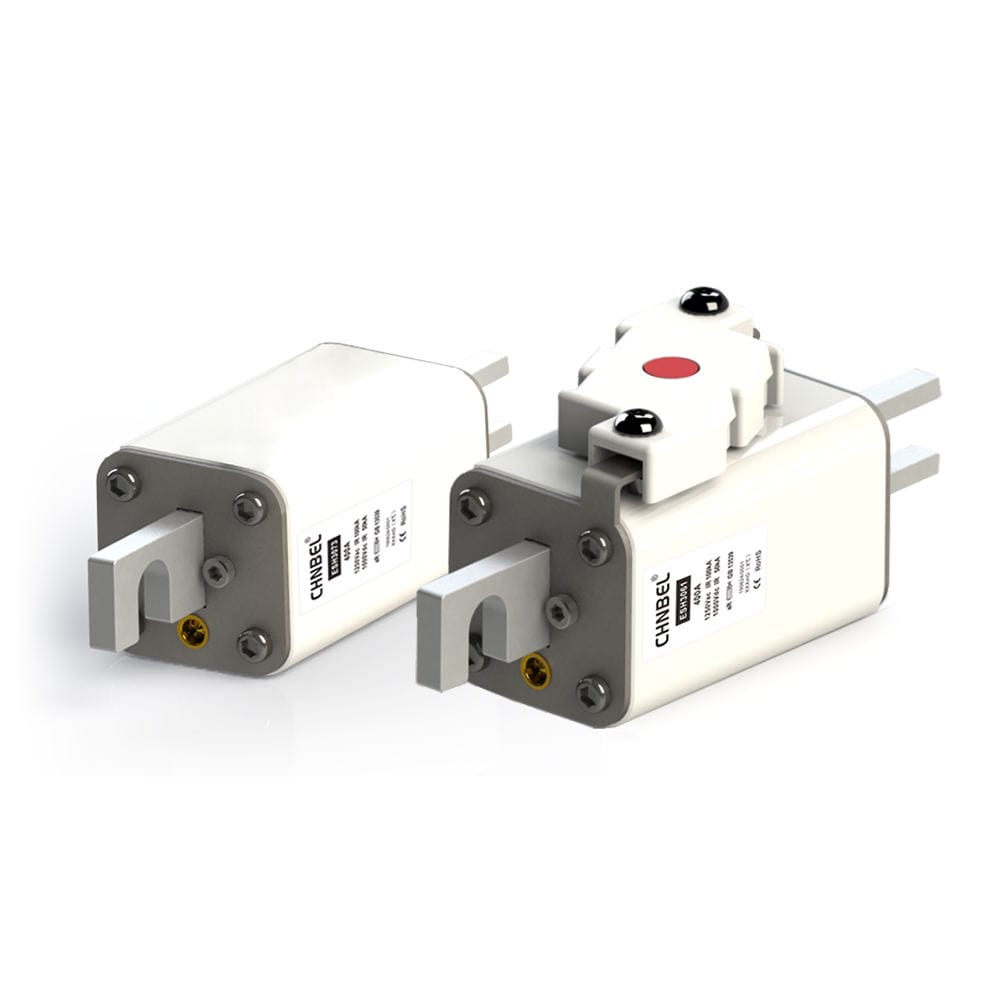

| Without Indicator holder | With Indicator holder | Rated Current RMS-Amps (A) | I²t (A²Sec) | Watts Loss | ||||
| Pre-arc | Clearing at 1000V | |||||||
| 1 | *ESH3066 | ESH3055 | 100 | 1311 | 6160 | 33 | M10 | 24±3.0 |
| 2 | *ESH3067 | ESH3056 | 125 | 2048 | 9830 | 37 | M10 | 24±3.0 |
| 3 | *ESH3068 | ESH3057 | 160 | 3872 | 18973 | 42 | M10 | 24±3.0 |
| 4 | *ESH3069 | ESH3058 | 200 | 6272 | 31360 | 46 | M10 | 24±3.0 |
| 5 | *ESH3070 | ESH3059 | 250 | 10368 | 52877 | 53 | M10 | 24±3.0 |
| 6 | *ESH3071 | ESH3060 | 315 | 18432 | 95846 | 60 | M10 | 24±3.0 |
| 7 | *ESH3072 | ESH3062 | 350 | 23328 | 123638 | 65 | M10 | 24±3.0 |
| 8 | ESH3073 | ESH3061 | 400 | 32768 | 176947 | 71 | M10 | 24±3.0 |
