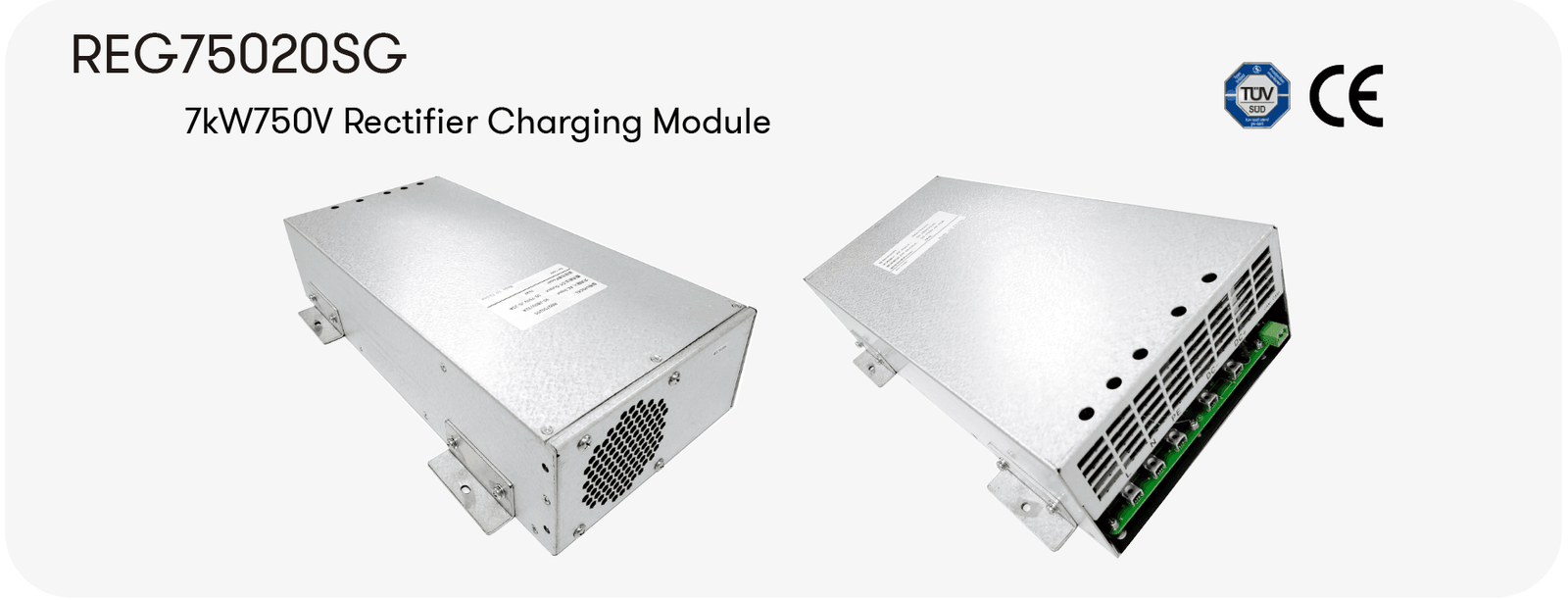

REG75020SG 7kW 750V Rectifier Charging Module

parameters

Features

• Full hot plug design
• Inside high frequency transformer isolation
• High eficiency over the full load range, full load efficiency higher than 95% Constant current for higher output power at low output voltage
• An internal patented intelligent discharge circuit automatically discharges residual charge
• 3 phase without neutral eliminates the risk of high neutral currents
• 3 phase active power factor correction technology, reduces the harmonic interference to the grid
• Dual DSP design, provides the ful digital control ,less components means higher reliability Wide operaing temperature range.-40°C-+75°C

AC Input voltage and current             90Vac ~280Vac,20A

DC output voltage and current            150Vdc-750Vdc, 20A

Rated power                                      7kW

Dimensions and weight                        87mm(H)x178mm(W)x385mm(D), ≤7kg
