X40133S1-AB 40kW 1000V Zero Standby Power Consumption Power Module
PRODUCT INTRODUCTION

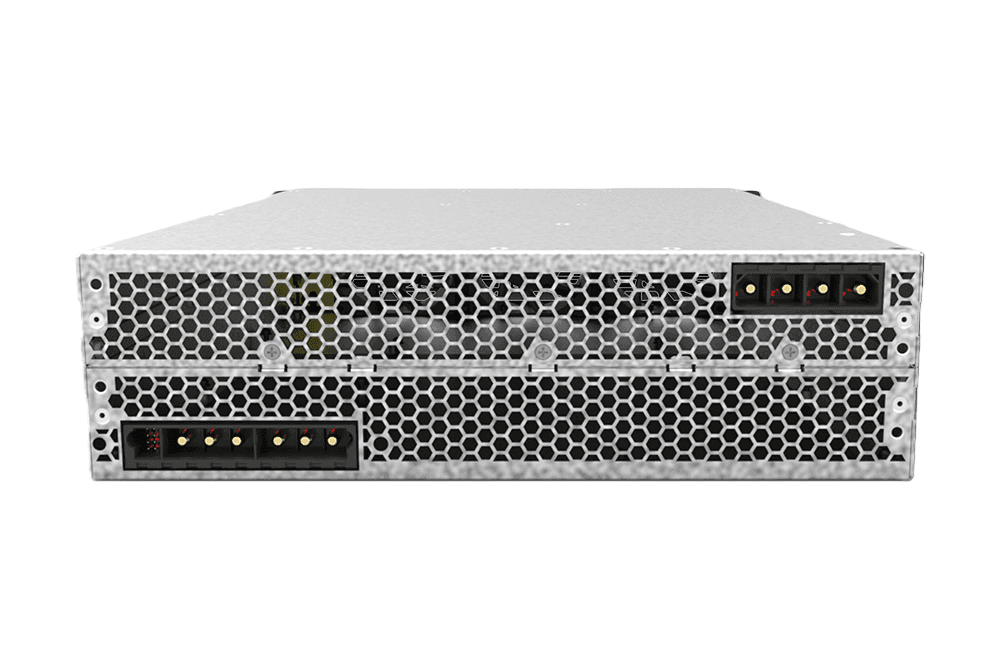

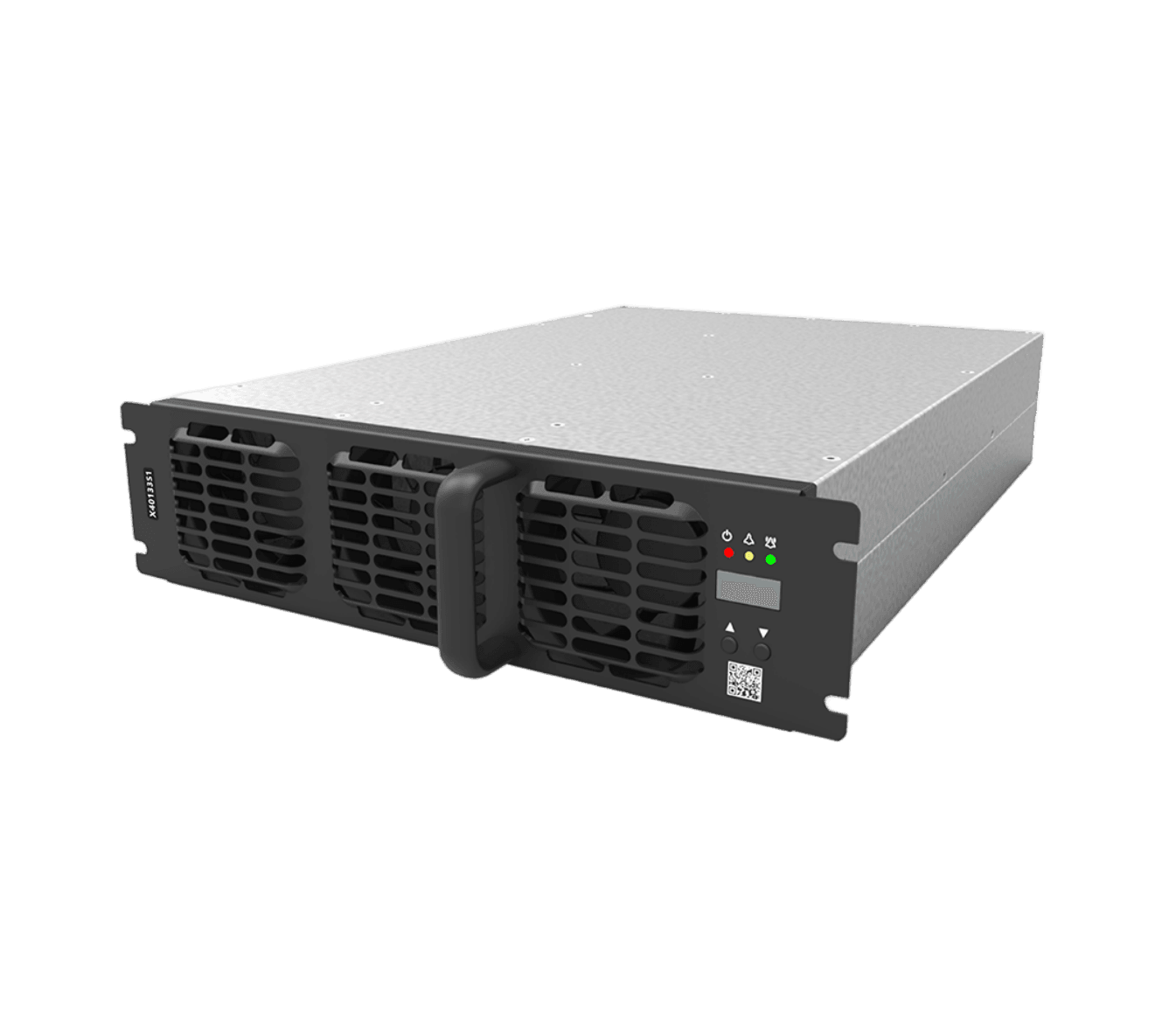

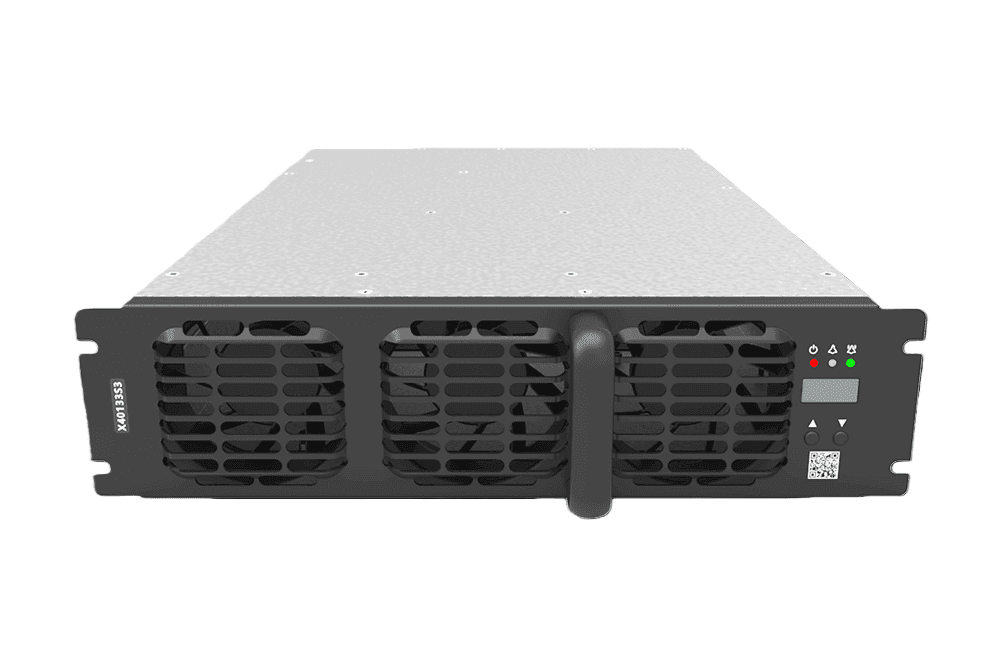

X40133S1-AB Zero Standby Power Consumption The smart AC/DC charging module is designed for high power EV charging equipment, applied the world’s latest power electronic control topology, with good performance and power density, achieves high efficiency, wide output voltage range to meet today and future EV charging requirement, wide operation temperature range makes it can be applied in hot weather, thorough gel filled technology ensures higher protection.
Key Features
➢ Full-SiC components, high conversion efficiency (peak ≥96.7%)
➢ Dynamic protection algorithm for better strategy and reliability
➢ Intelligent noise control (full-load ≤63dB at ambient temperature)
➢ Smart lifespan prediction & alert for key components/fans, lower O&M cost
➢ 3-phase (no neutral) eliminates high neutral current risk
➢ Support module address config via keypad or software
➢ Gel-filled for enhanced environmental suitability
➢ Built-in AC input relay, true Zero Standby Power Consumption
➢ Built-in voltage discharge circuit
APPLICATION SCENARIOS
- Standalone Fast Charging Stations
- Battery Swapping Stations
- Mining Truck, Construction Vehicle Megawatt Chargers
- Group DC EV Charging Systems
PRODUCT SPECIFICATIONS
| ITEMS | PRODUCT MODEL | X40133S1-AB |
| AC Input | Voltage Range | 260-485Vac, linear derating to 20kW@323~260Vac |
| Wiring Method | Three Phase, 3W+PE | |
| Frequency | 50/60Hz ±5Hz, rated 50Hz | |
| THDi | ≤3%@p.n. | |
| Power Factor | ≤0.99@100% load | |

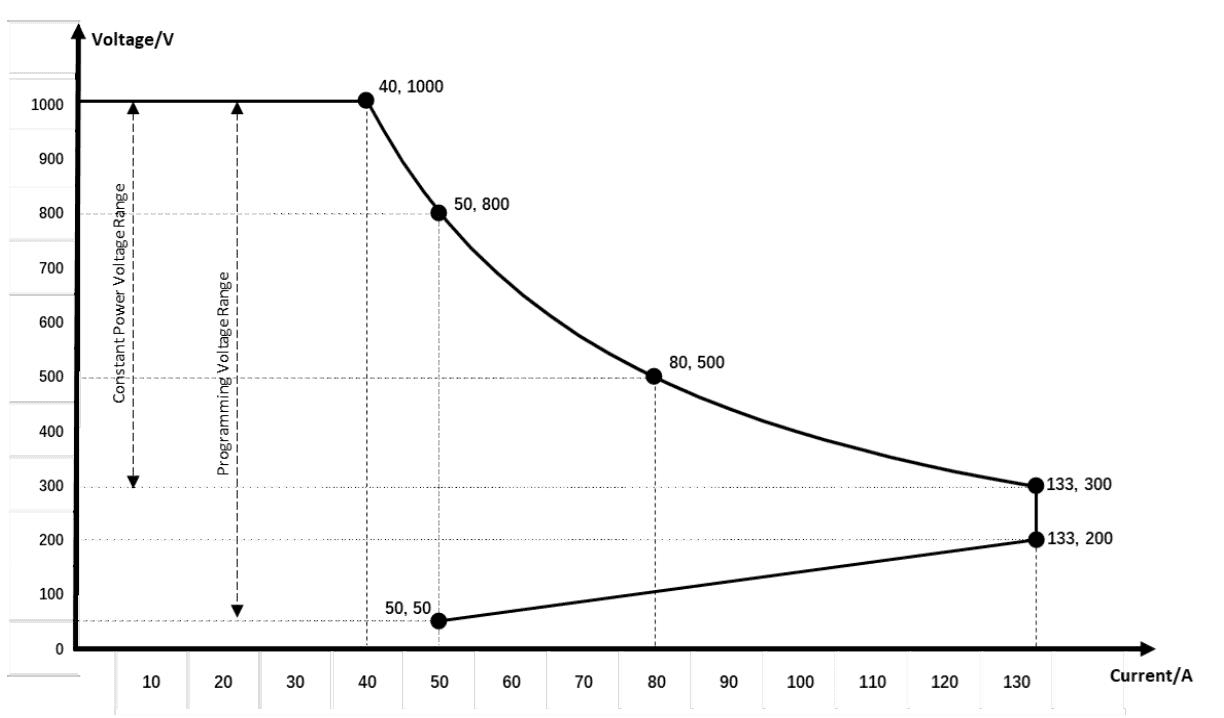

| DC Output | Voltage Range | 50-1000Vdc (performance indicators not evaluated below 200Vdc) |
| Nominal Power | 40kW at 300-1000Vdc | |
| Max Current | 133A | |
| Conversion Efficiency | Highest ≥96.7%, Rated ≥96% | |
| Voltage Ripple Factor | Within ±1% | |
| Current Imbalance | Within ±5% | |
| Voltage Regulation | Within ±0.5% | |
| Current Regulation | Within ±1% | |
| Communication | Communication | CAN |
| Parallel Installation | 60 Modules max. | |
| Module Address | Support software setting and hardware setting | |
| Operation Condition | Operation Temp. | -40℃ ~ +75℃ (linear derating to 0 @55~75℃) |
| Relative Humidity | <95% RH, non-condensing | |
| Altitude | Under 2000m with nominal power, derating above 2000m | |
| Cooling | Force Air | |
| General Specifications | Dimension | 300×437×84 (W×D×H, mm, w/o handle) |
| Weight | <20kg | |
| Standby Power Consumption | <12W@input relay connected | |
| Noise | Under 63dB at full load @ambient temperature | |
| MTBF | >500k hours | |
| Protection | Module Over-temperature | Auto-shutdown, fault clears when temperature normalizes, module in standby |
| Input overvoltage/undervoltage/phase loss | Auto-shutdown, fault clears when input normalizes, module in standby | |
| Overcurrent or short circuit | Auto-protection shutdown and lockout | |
| Output overvoltage | Dual hardware & software protection |
