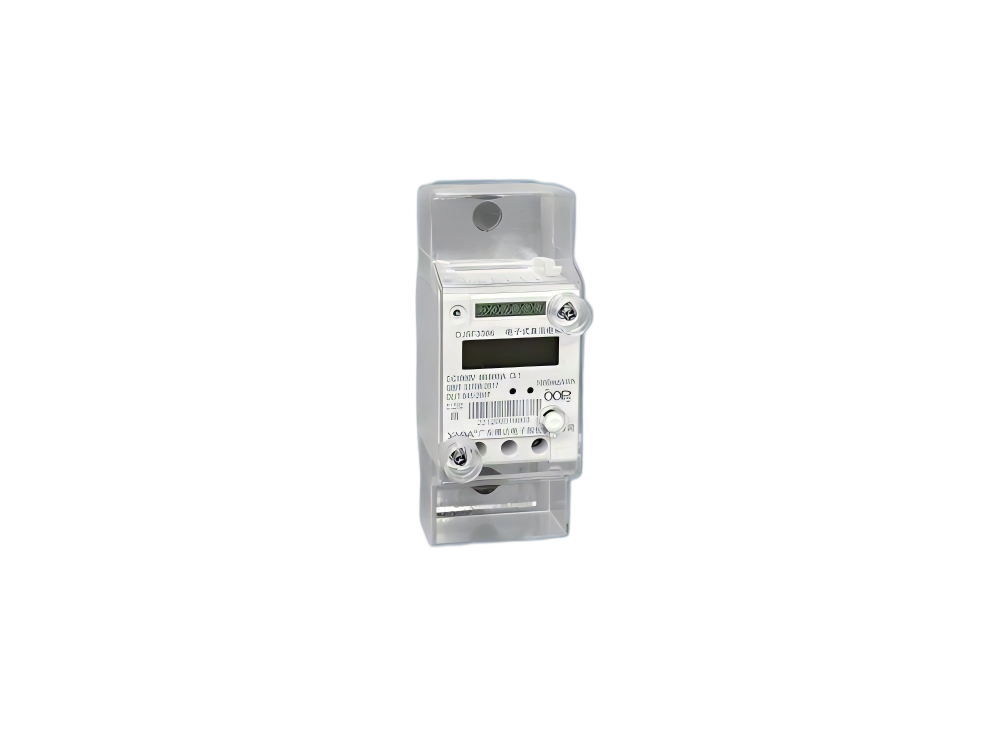

Yada-DJSF3366-Energy Meter-EV/Solar

Yada-DJSF3366-Energy Meter-EV/Solar

Specifications
–Rated voltage: 1000V
-Rated current: 300A, 600A
–Accuracy level: 0.5, 1.0
–Working power supply: DC9V~36V
Main features
–Direct access, no need to configure shunt

–Supports forward and reverse energy measurement, peak, flat and valley time sharing energy measurement

-RS485 interface, supports DL/T645-2007, DL/T698.45 protocols–Product certification, CPA certification

-Supports electronic seals, physical seals, shunts and meters can be sealed

–Electric energy pulse output, minimum energy resolution 0.001kWh

–Complies with standards GB/T33708-2017, JJG1149-2022
