Products Description

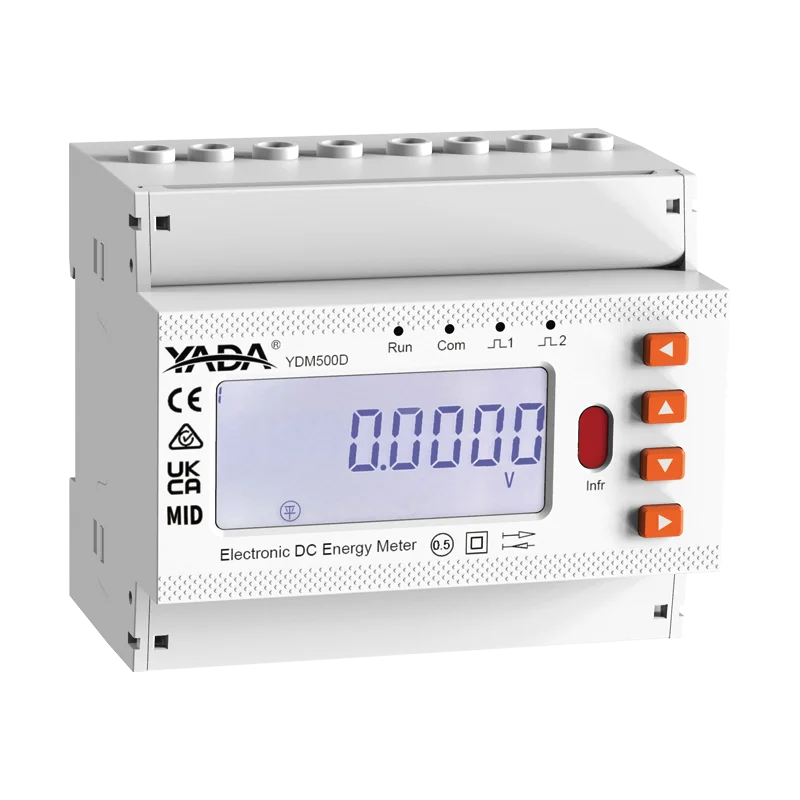

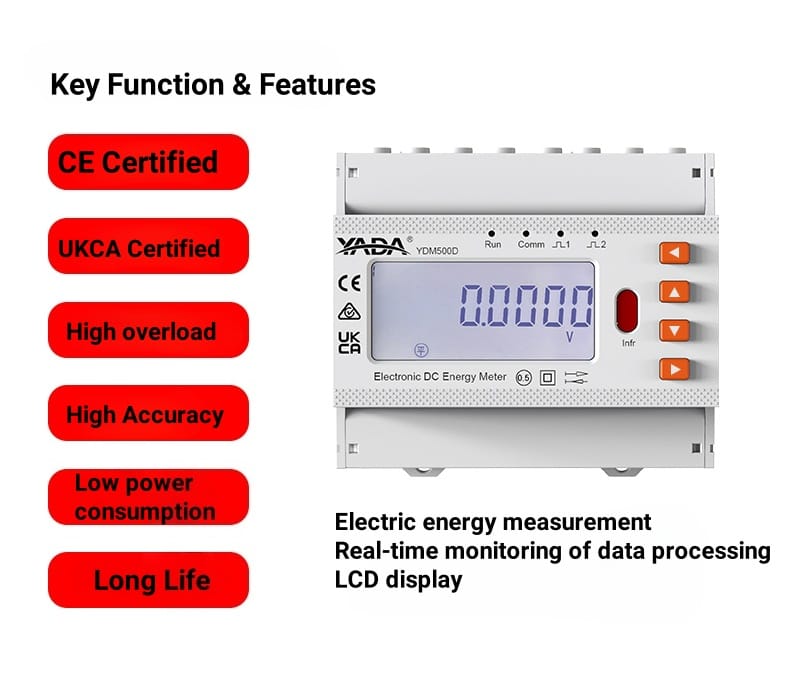

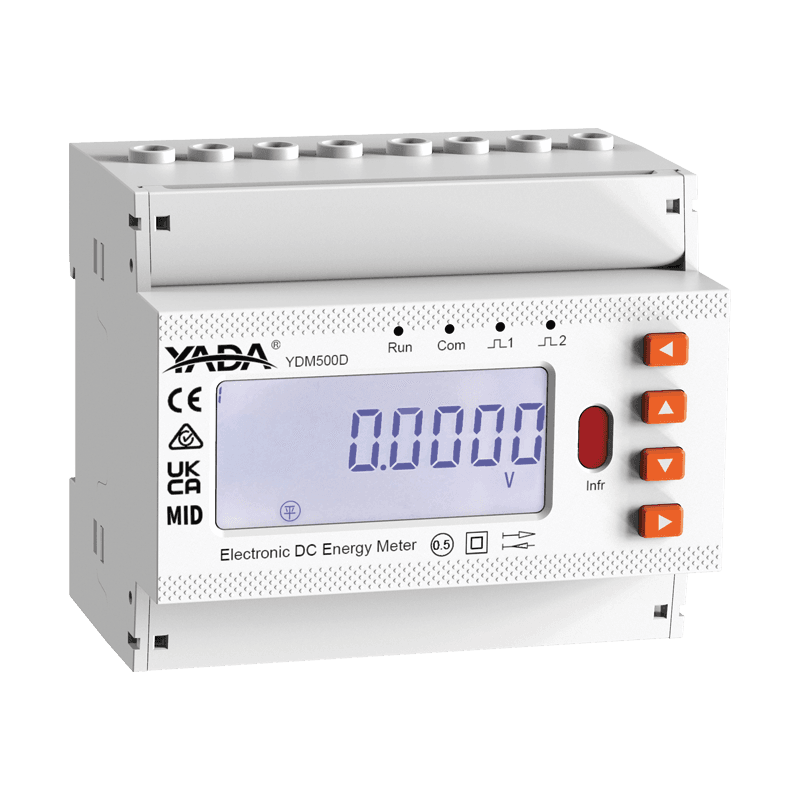

YDM500D Electronic DC energy meter is a new generation of DC metering products produced by our company, mainly for dual-gun or multi-gun DC charging pile applications, can achieve two DC access and metering at the same time, with two independent RS485 communication interfaces, can upload data respectively.It consists of measurement unit, data processing unit, communication unit, display unit, etc., with power measurement, data processing,real-time monitoring, LCD display function. The energy meter has the characteristics of high power overload, high accuracy, low power consumption, automatic saving of power failure data and long life.
* Accuracy Class: Class0.5 or 1.0.

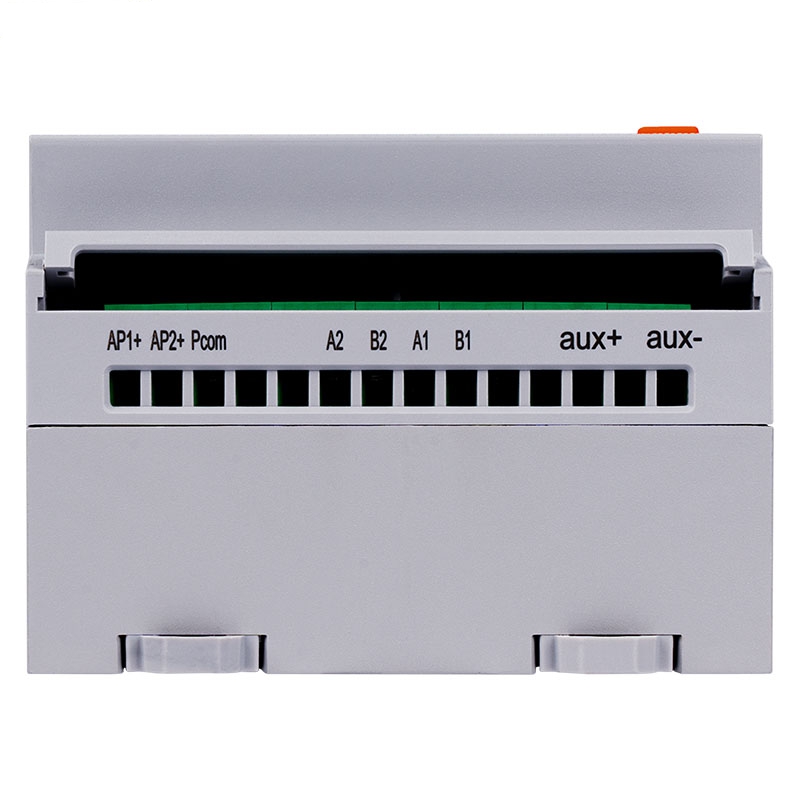

*Two channels of electrical energy pulse output. *One second pulse output. *Two independent RS485 interfaces.
Used for Dual-chargers or multi-chargers DC charging stations.
Product Name | YADA YDM500D DC Energy Meter | |||
Meter Type | Single Phase Energy Meter | |||
Model No. | YDM500D | |||
Brand Name | YADA | |||
Display Type | LCD Display | |||
Measuring Energy Range | 0-99999.99kWh | |||
Phase | Single Phase | |||
Accuracy Class | Class 0.5/1.0 | |||
Operating Temperature | -25℃~ 60℃ | |||
Communication | RS485(Modbus-RTU) | |||

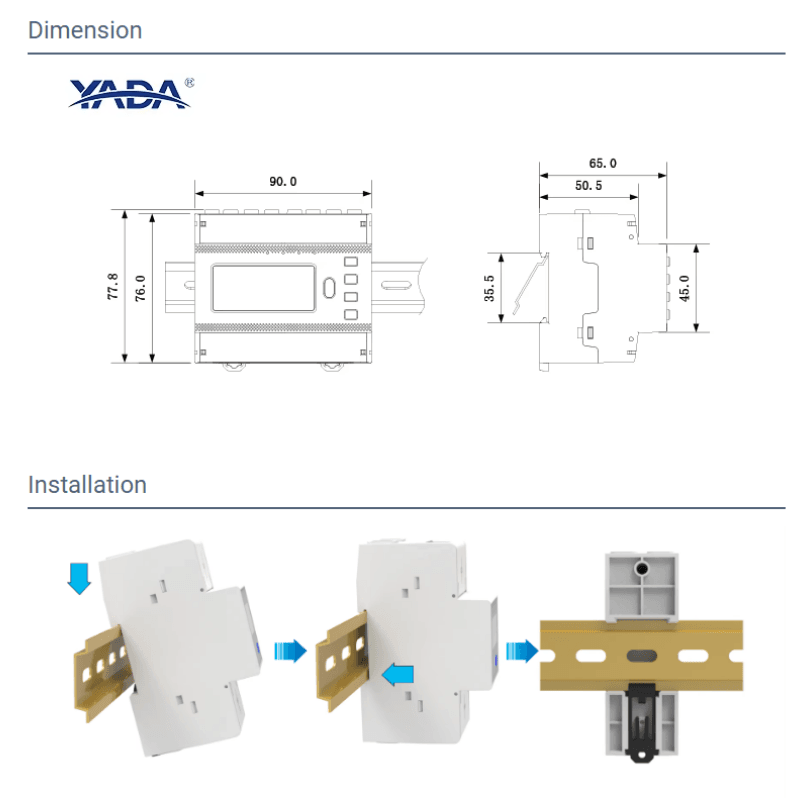

Installation | 35mm DIN rail | |||

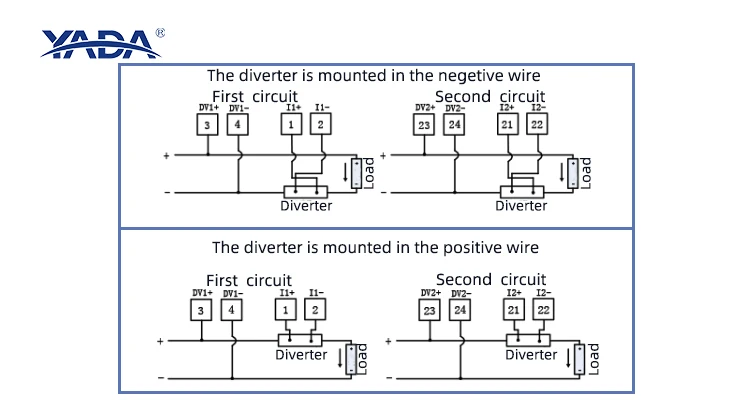

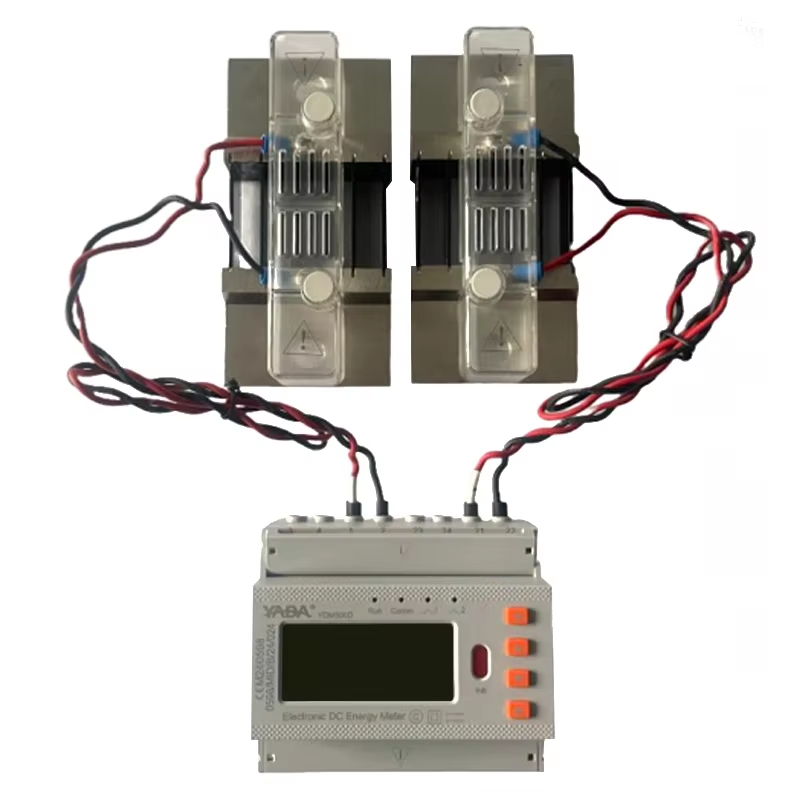

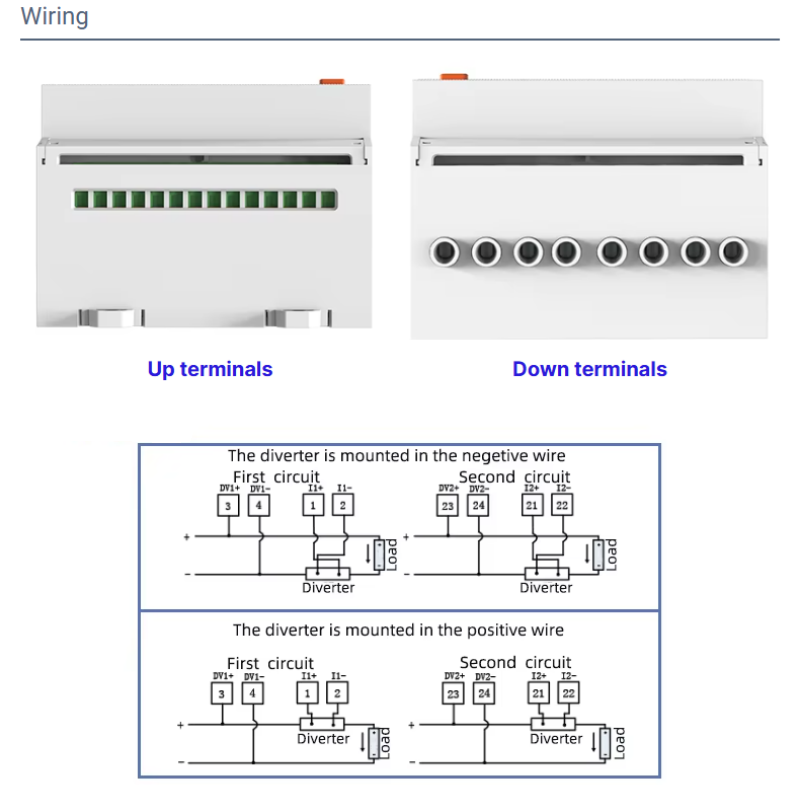

Input current | 50A-800A, with 75mV(Via diverter) | |||
Input Voltage | DC48V~DC1000V | |||

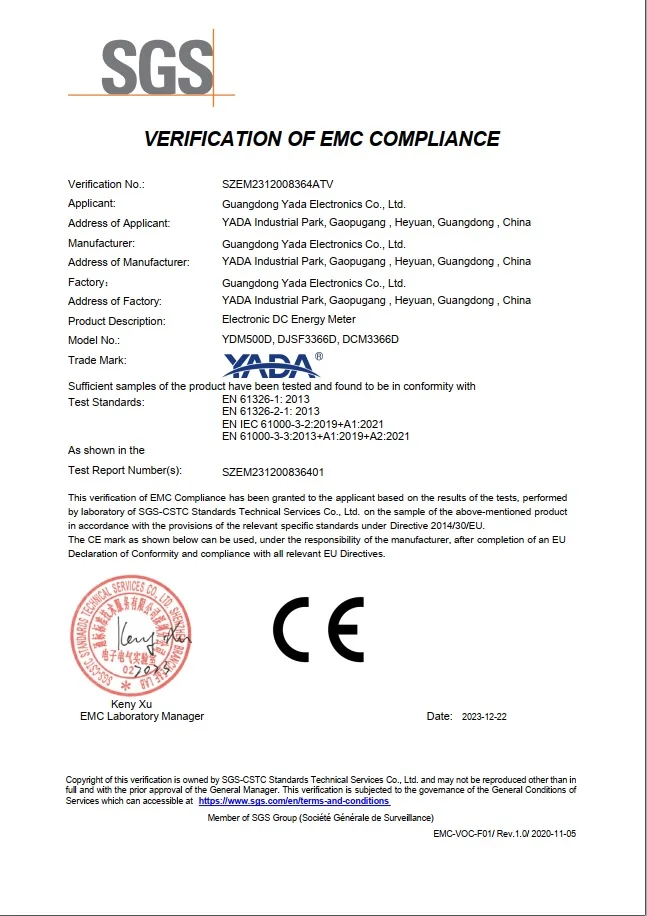

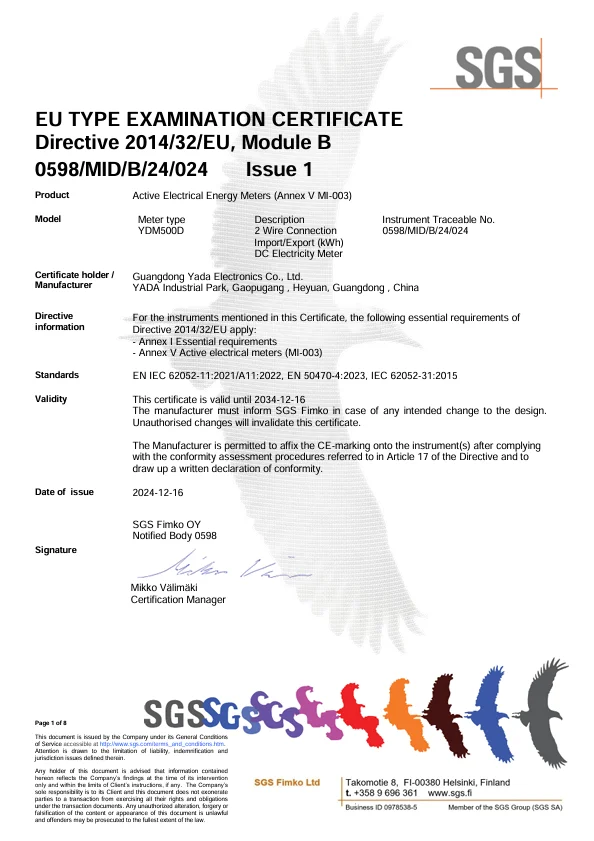

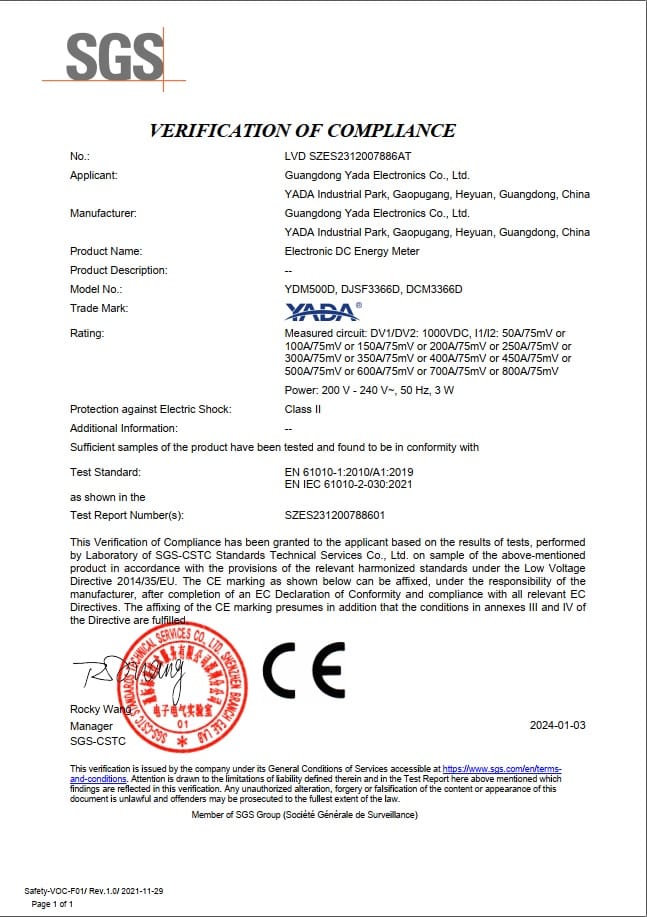

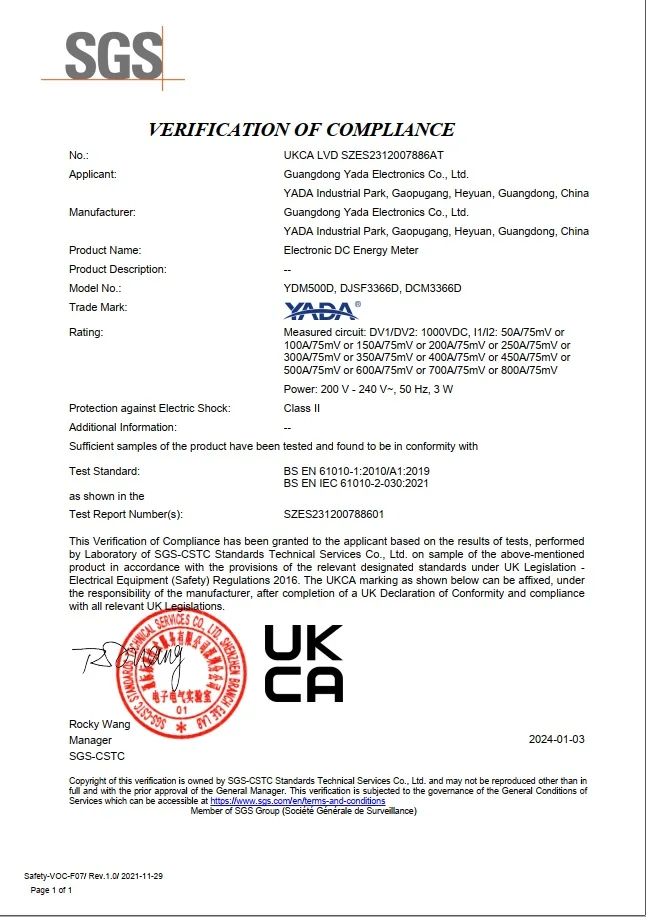

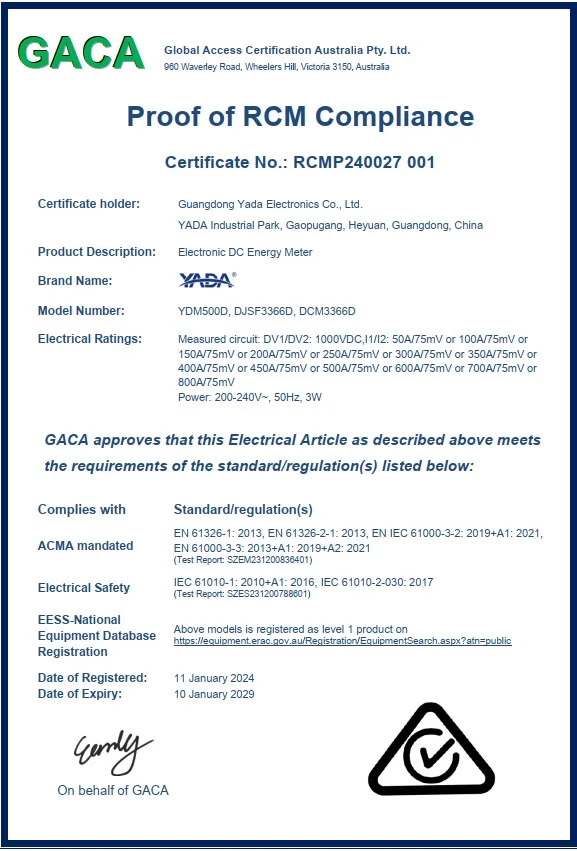

Certificate | MID, UKCA, RCM, CE Certification(EN61010-1:2010/A1:2019, EN IEC61010-2-030:2021, EN 61326-1:2013, EN 61326-2-1:2013, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013 +A1:2019+A2:2021 ) | |||
Warranty | 2 Years | |||

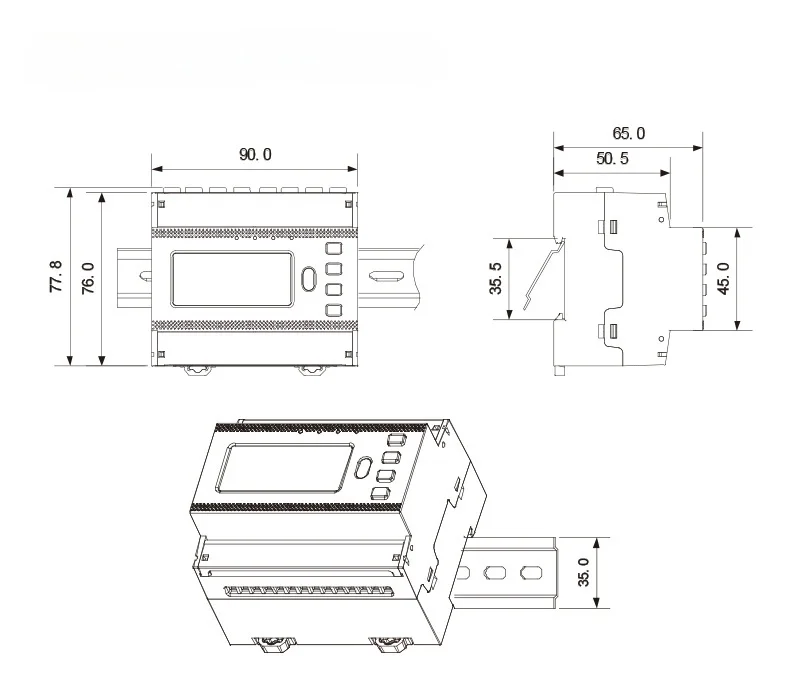

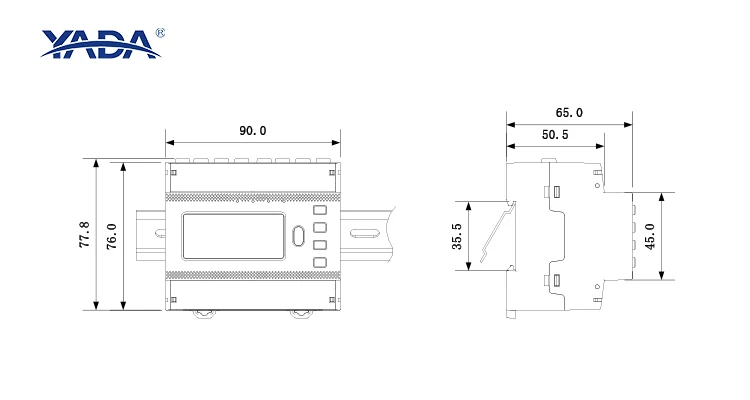

Dimensions | 90.0mm*77.8mm*65.0mm | |||
Appication | Data center, Telecommunication, Charge station, Industrial, IoT, Household and other Power Management System. | |||
