YADA YDS60-C24 Three-phase CE UKCA RCM Certificate Digital Energy Meter RS485 Modbus Solar PV Inverter

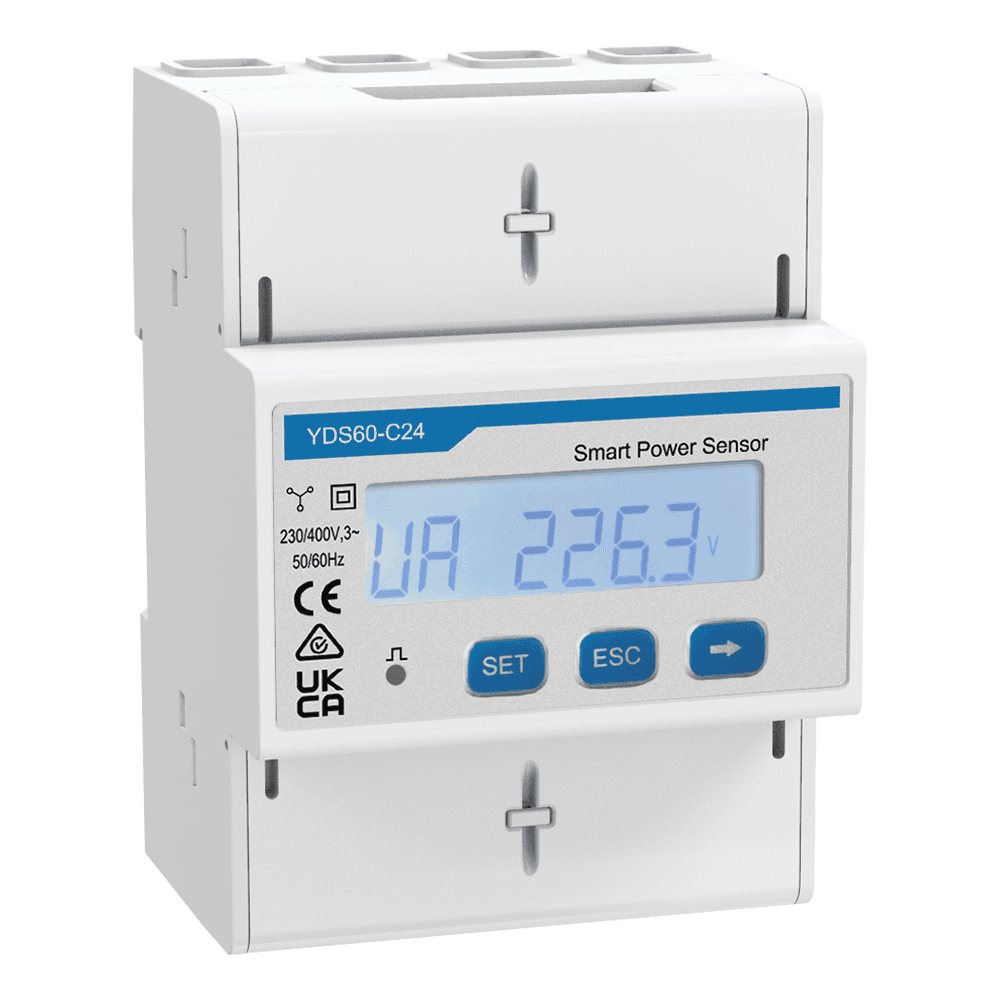

YADA YDS60-C24 Three-Phase RS485 Modbus LCD Smart Energy Meter

Products Description

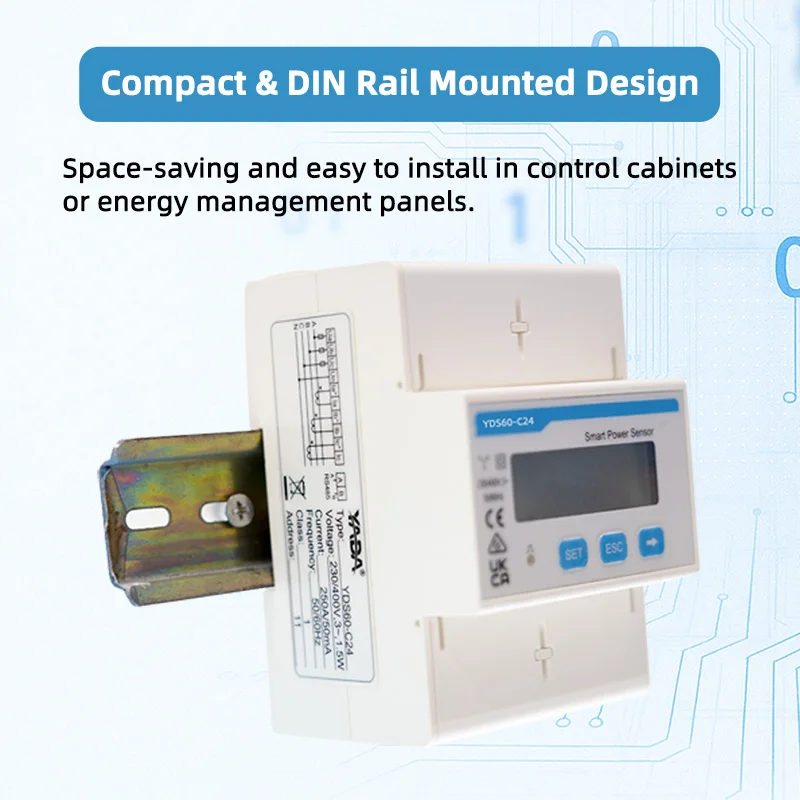

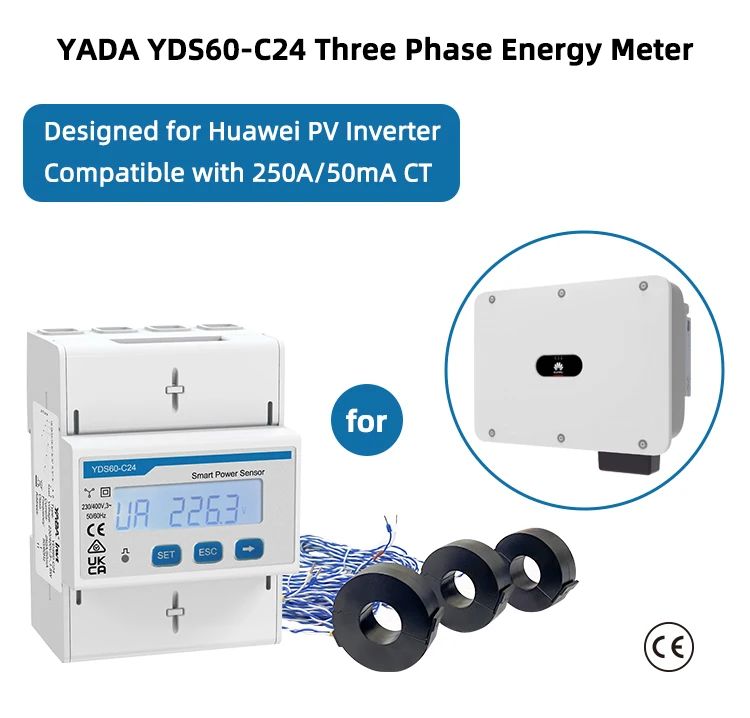

Specially Designed for Huawei PV Inverters – Compatible with Huawei solar energy systems, providing accurate monitoring and seamless integration. High Precision Measurement – Class 1 accuracy with current range up to 250A, ensuring reliable power data for industrial and solar applications. External CT 250A/50mA Included – Enables flexible installation and safe current measurement without disconnecting the main circuit. RS485 Communication (MODBUS-RTU) – Supports remote data reading and integration with smart energy management systems. Wide Application Range – Suitable for industrial, IoT, telecommunication, and household power monitoring. Easy DIN-Rail Installation – Compact 72×105×66mm housing for fast mounting in control panels. LCD Digital Display – Real-time voltage, current, and energy information with clear visibility. CE, UKCA, and RCM Certified – Meets international safety and performance standards for global markets. Durable andEco-Friendly Design – Operating temperature from -25℃ to 60℃ with long service life.

YADA YDS60-C24 Energy Meter Certificates

CE UKCA RCM

Product Name	YDS60-C24 Smart Power Sensor with CT
Meter Type	3 Phase Energy Meter
Model No.	YDS60-C24
Brand Name	YADA
Display Type	LCD Display
Measuring Energy Range	0-99999.99kWh
Phase	Three Phase
Accuracy Class	Class 0.5,1.0
Operating Temperature	-25℃~ 60℃

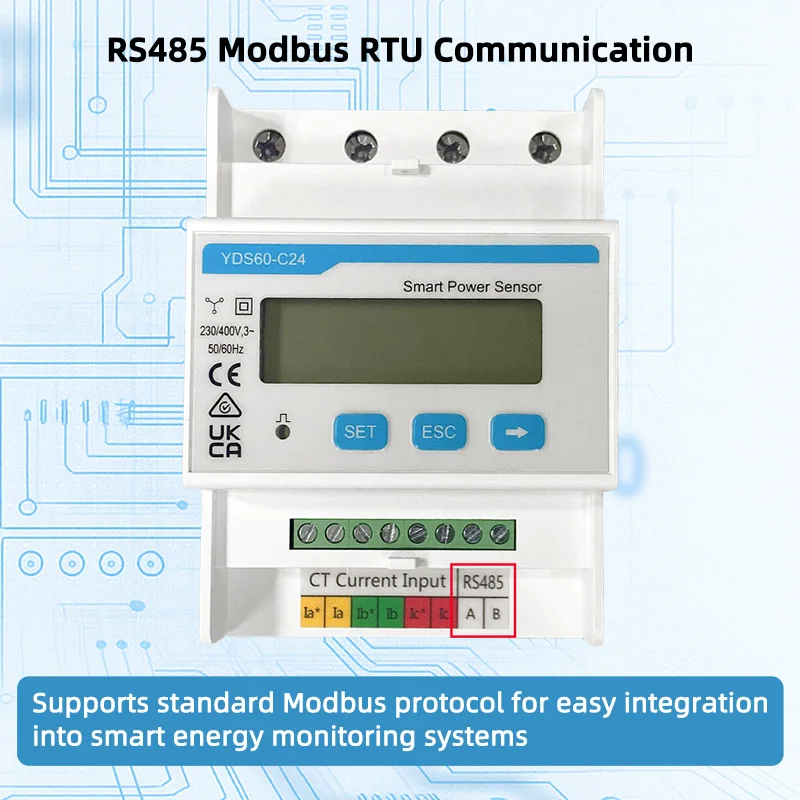

Communication	RS485(Modbus-RTU)

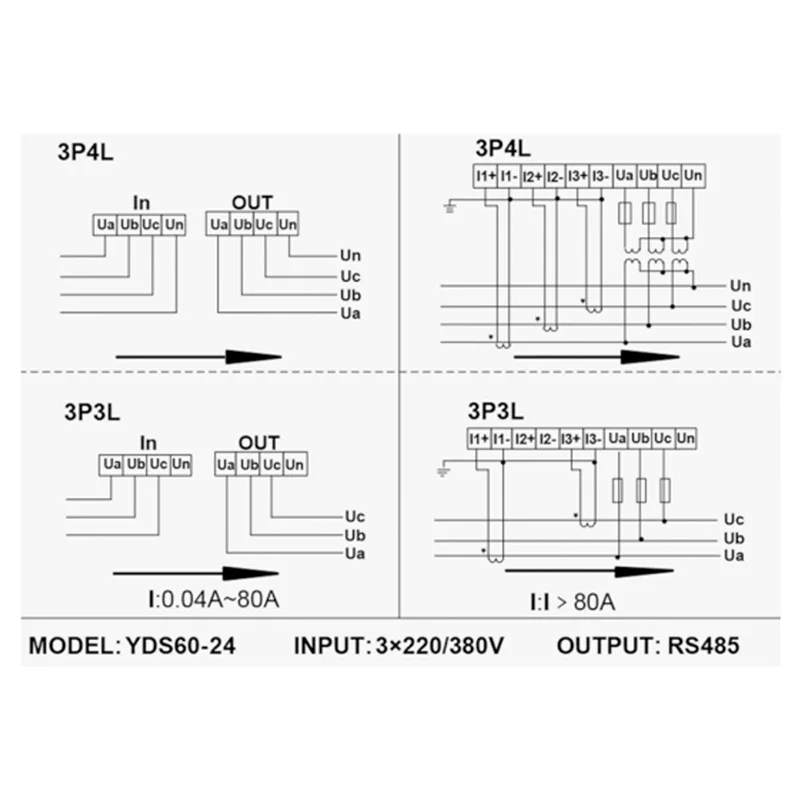

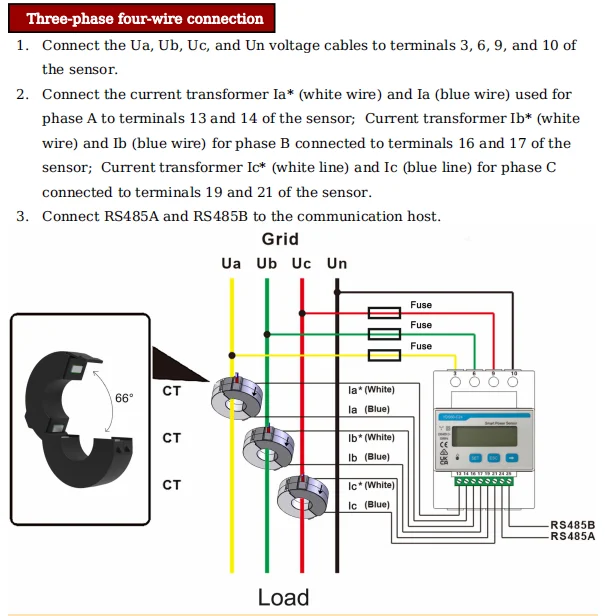

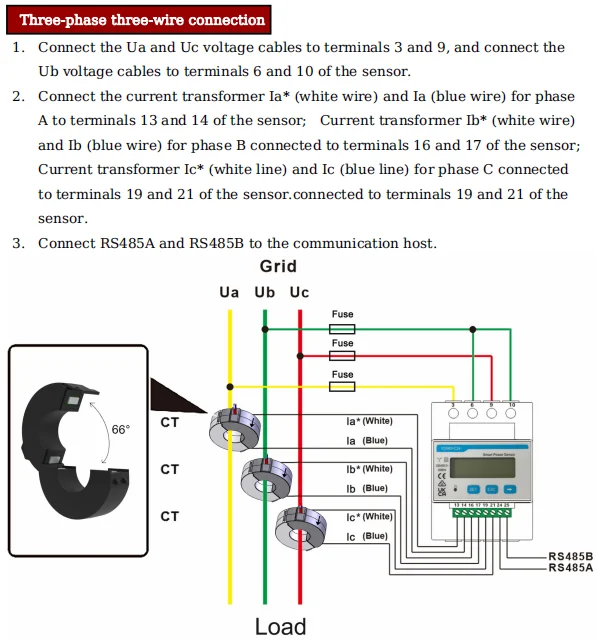

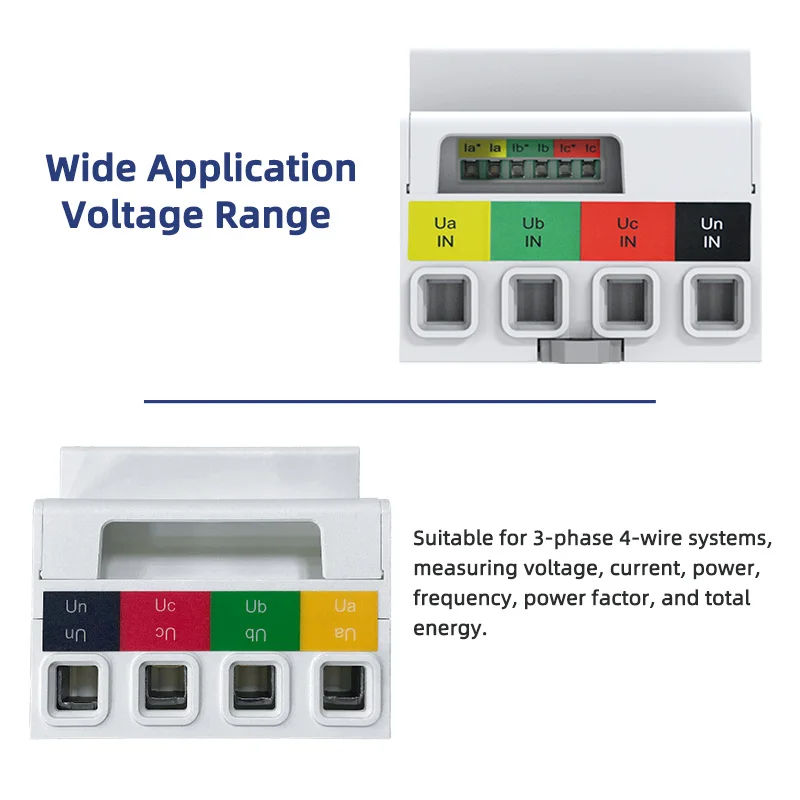

Installation	3-Phase 4-wire, 3-Phase 3-wire, 35mm DIN rail

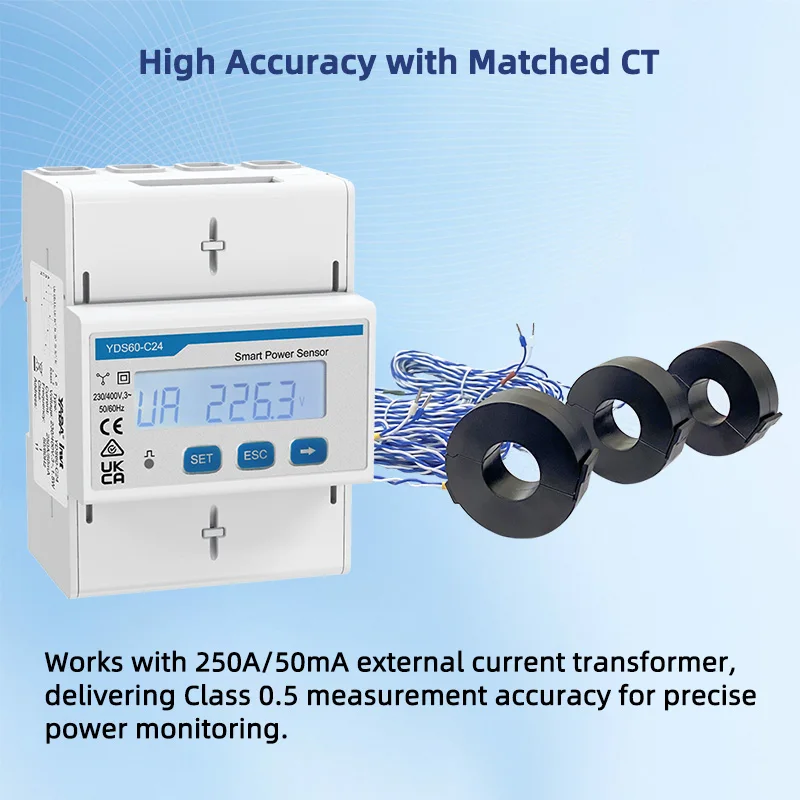

Input current	250A/50mA
Input Voltage	AC230V/400V
Certificate	CE/UKCA/RCM Certification(EN61010-1:2010+A1:2019, EN61010-2-030:2021+A11:2021, EN 61326-1:2013, EN 61326-2-2: 2013)
Warranty	2 Years

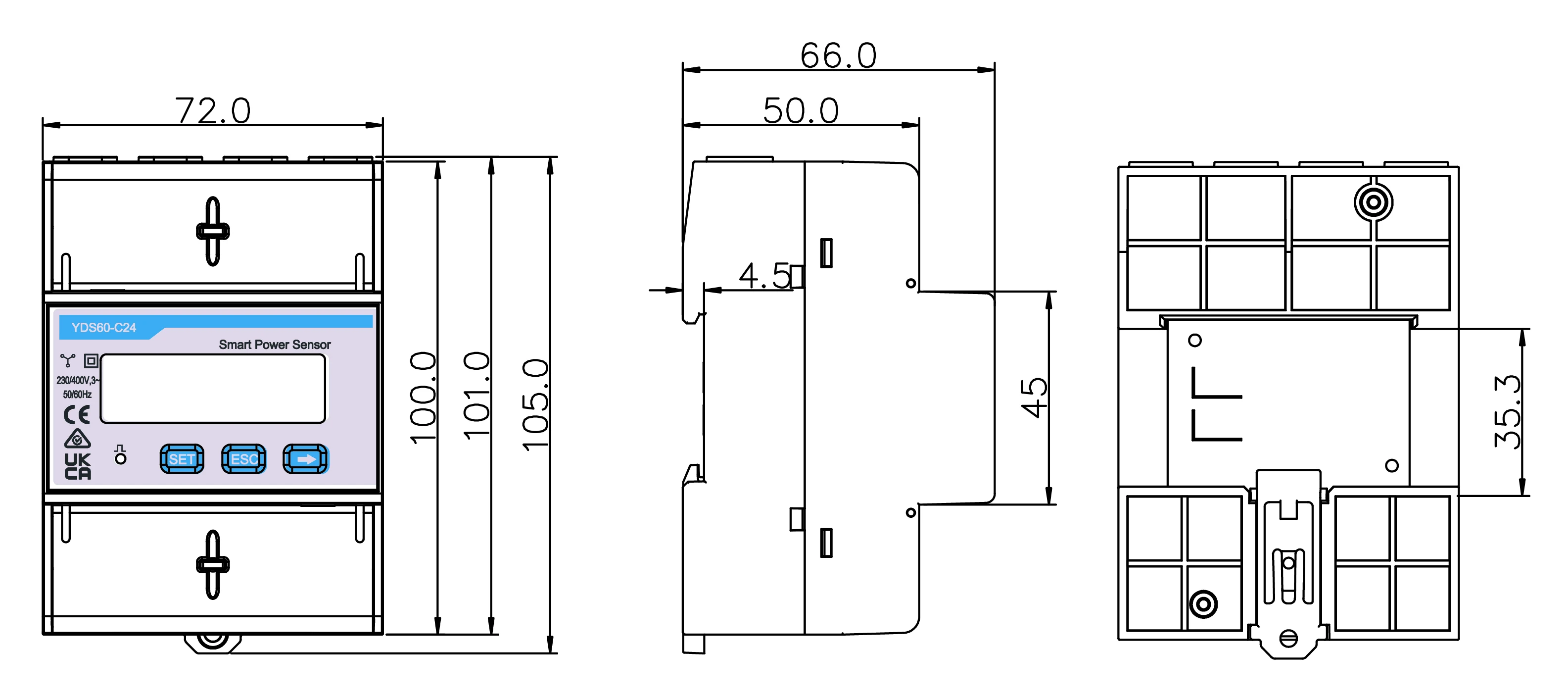

Dimensions	72.0mm100.0mm66.0mm
Appication	Data center, Telecommunication, Charge station, Industrial, IoT, Household and other Power Management System.
