Yada-DDS3366D-1P-Energy Meter-EV Solar

Yada-DDS3366D-1P-Energy Meter-EV/Solar

Number of phases: Single-phase
Output voltage: AC 220V
Accuracy class: Class 1.0
Maximum current: 60A
Rated current: 5A
Measurement energy range: 0-999999.9 kWh

Send Inquiry

Product Overview

The DDS3366D-1P is a single-phase energy meter optimized for electric vehicle charging and solar power applications. Built for long-term operational durability, the meter delivers high accuracy and high overload capacity while consuming low power. It features real-time monitoring and intelligent data processing for precise energy measurement and clearly displays critical metrics on an integrated LCD screen. Additionally, the unit includes an automatic data backup function to prevent information loss during power outages.

Key Features

35mm DIN Rail Mounting
Bi-directional Power Metering
6+1 Digit LCD Display
With RS-485 Communication Interface

Technical Specifications

Item Specification
Product Name YADA DDS3366D-1P AC Energy Meter
Meter Type Single-Phase Energy Meter
Model DDS3366D-1P
Brand YADA
Display Type LCD Display
Energy Measurement Range 0–99,999.99 kWh
Phase Single Phase
Accuracy Class Class 1.0
Operating Temperature -20°C to +55°C
Communication Interface RS-485 Interface, ModBus-RTU and DL/T645-2007 Protocol
Mounting Method 35 mm DIN Rail Mounting
Input Current 5(40)A, 10(60)A
Input Voltage 220V AC
Pulse Constant 1600 imp/kWh, 800 imp/kWh
Frequency 50 Hz
Warranty 2 Years
Dimensions 90 ± 0.5 × 18 ± 0.5 × 72 ± 0.5 mm
Weight 0.25 kg

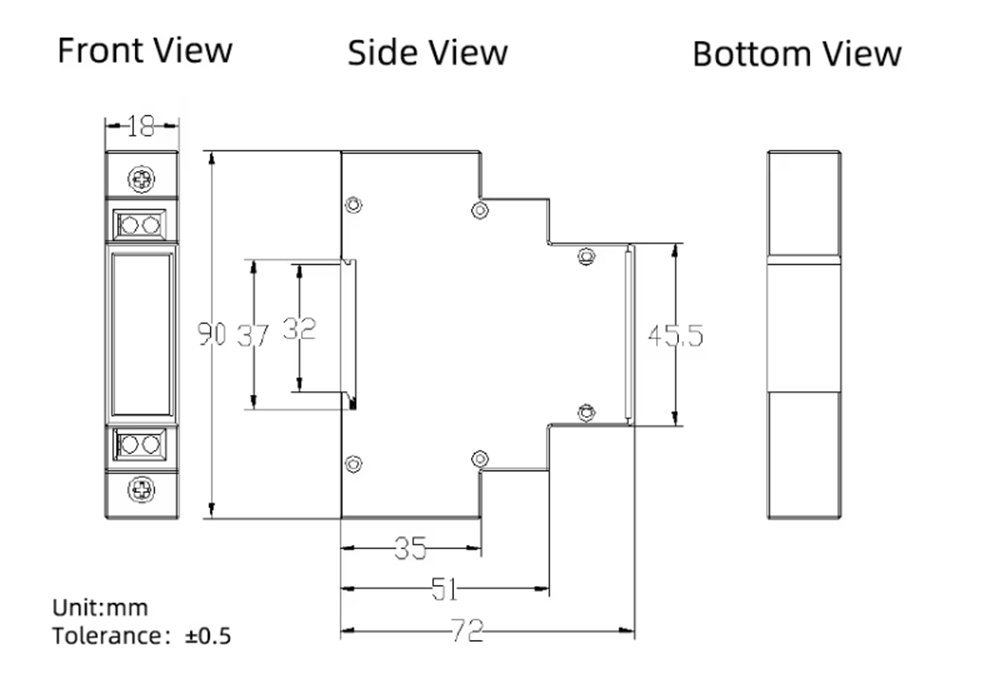

Dimension drawings
