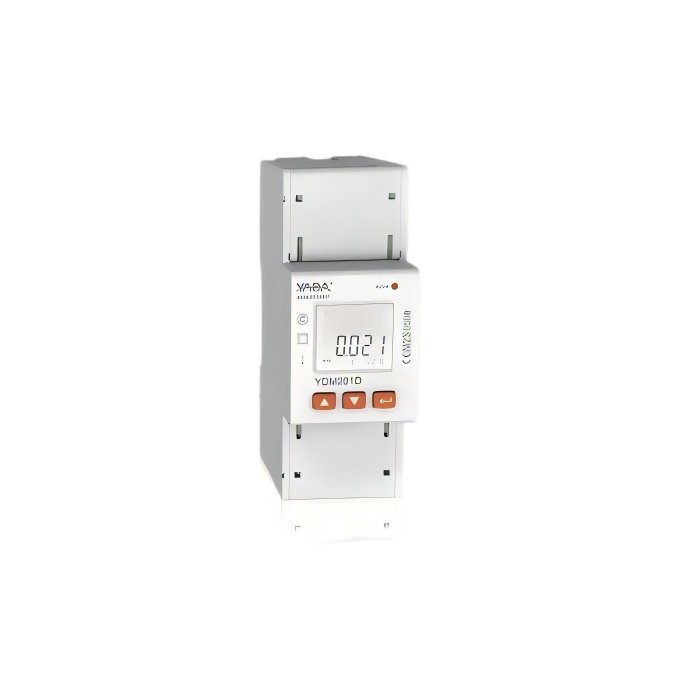

Yada-YDM201D-Energy Meter-EV
Number of phases: Single phase
Output voltage: AC 230V
Accuracy class: B
Maximum current: 80 amps
Rated current: 5 A
Measurement range: 0-4,294,967.2 kWh
Product Overview
The YDM201D is a single-phase two-wire electronic energy meter optimized for electric vehicle charging infrastructure. Designed for standard 35mm DIN rail installation, the meter operates at an input voltage of 230V with a current range of 0.25-5(80)A. It features an integrated LCD screen for local data viewing and includes an RS485 communication interface supporting the Modbus-RTU protocol for seamless remote data integration. The device holds CE certification, fully complying with international standards IEC 62052-31:2015 and IEC 62052-11:2021.
Technical Specifications

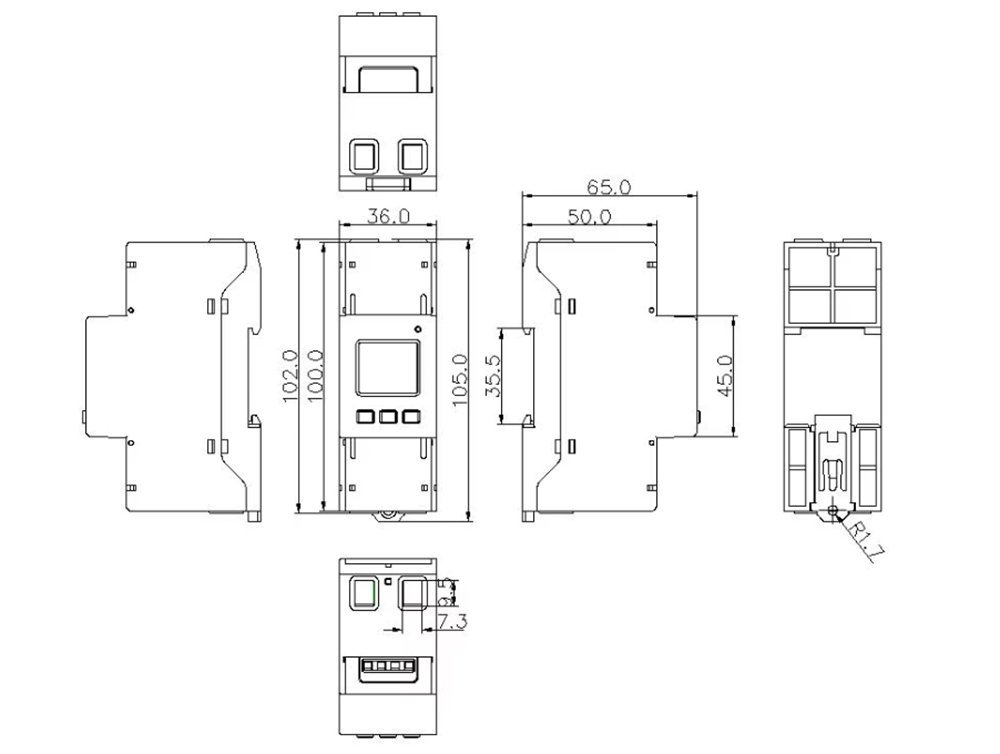

Dimension drawings
Applications
Meet the requirements of various industries. Suitable for monitoring charging piles, schools, buildings, and residential areas. (Mounted in distribution box, terminal box)
