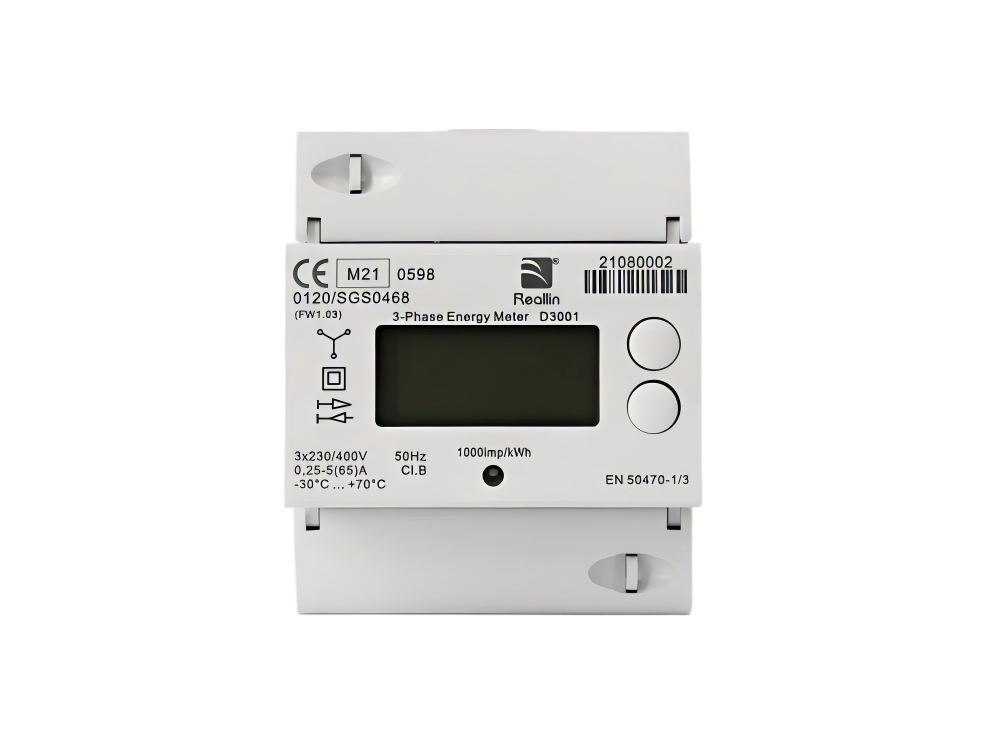

Reallin-D3034-Energy Meter-AC EV Charger
-Specification
Type Three Phase Four Wire DIN Rail CT Meter
Standards EN 50470-1, EN 50470-3, IEC 62053-23
Voltage
Rated voltage Un 3×230/400V
Voltage range 80%Un 120%Un
Current
Minimum current Imin 0.01A
Reference current Ib 1A
Maximum current Imax 6A
Starting current Ist 0.1%In
Rated Frequency Fn 50Hz
Accuracy Class C for active, Class 2 for reactive
Pulsating Indicator Pulsating (meter constant)
LED and S0 interface 10000imp/kWh, 10000imp/kvarh, configurable for S0 interface
Environment
Temperature range Operation: -25 55℃
Storage: -40~70℃
Protection Degree IP 51 in protective enclosure
Insulation Class II
Typical Power Consumption
Voltage circuit active/apparent power at Un ＜2W/10VA
Current circuit apparent power at Ib ＜1VA
LCD Display 8 digits with configurable decimal place, backlight supported
Communication Interface RS485 with screw type, maximum upto 38400bps
I/O Interface 1 Relay output 4*Output
Weight Of Meter About 0.3kg
Dimension(LxWxD) 86.0 x 87.5 x 62.0mm
