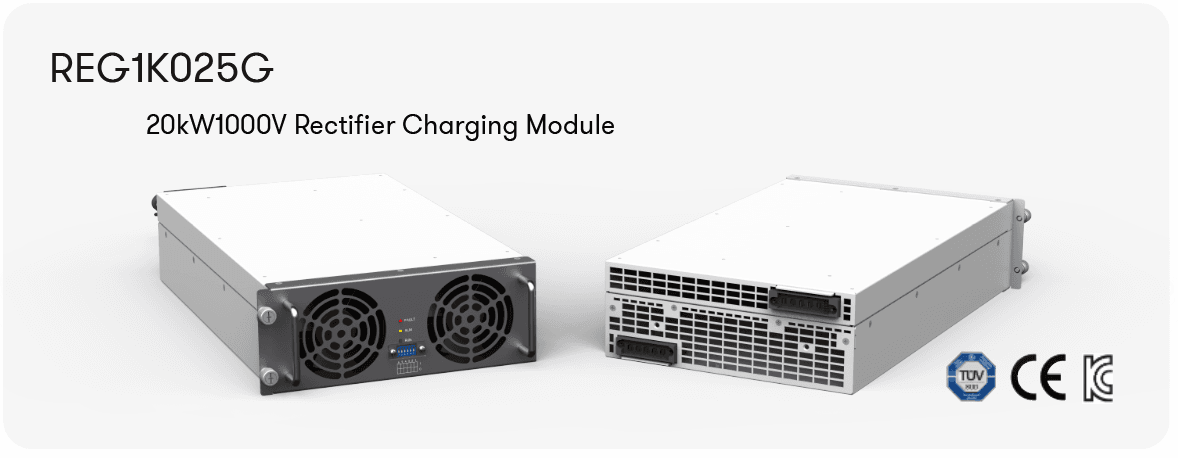

REG1K025G 20kW 1000V Rectifier Charging Module

parameters

Features

• Full hot plug design
• Inside high frequency transformer isolation
• High eficiency over the full load range, full load efficiency higher than 95% Constant current for higher output power at low output voltage
• An internal patented intelligent discharge circuit automatically discharges residual charge
• 3 phase without neutral eliminates the risk of high neutral currents
• 3 phase active power factor correction technology, reduces the harmonic interference to the grid
• Dual DSP design, provides the ful digital control ,less components means higher reliability Wide operaing temperature range.-40°C-+75°C

AC Input voltage and current             260Vac ~530Vac,38A

DC output voltage and current            150Vdc-1000Vdc, 25A

Rated power                                         20kW

Dimensions and weight                        84mm(H)x226mm(W)x395mm(D), ≤11 kg
