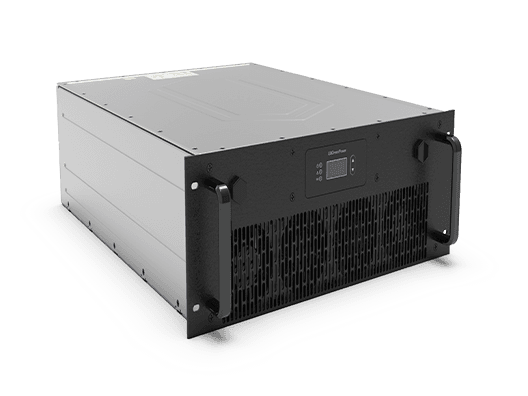

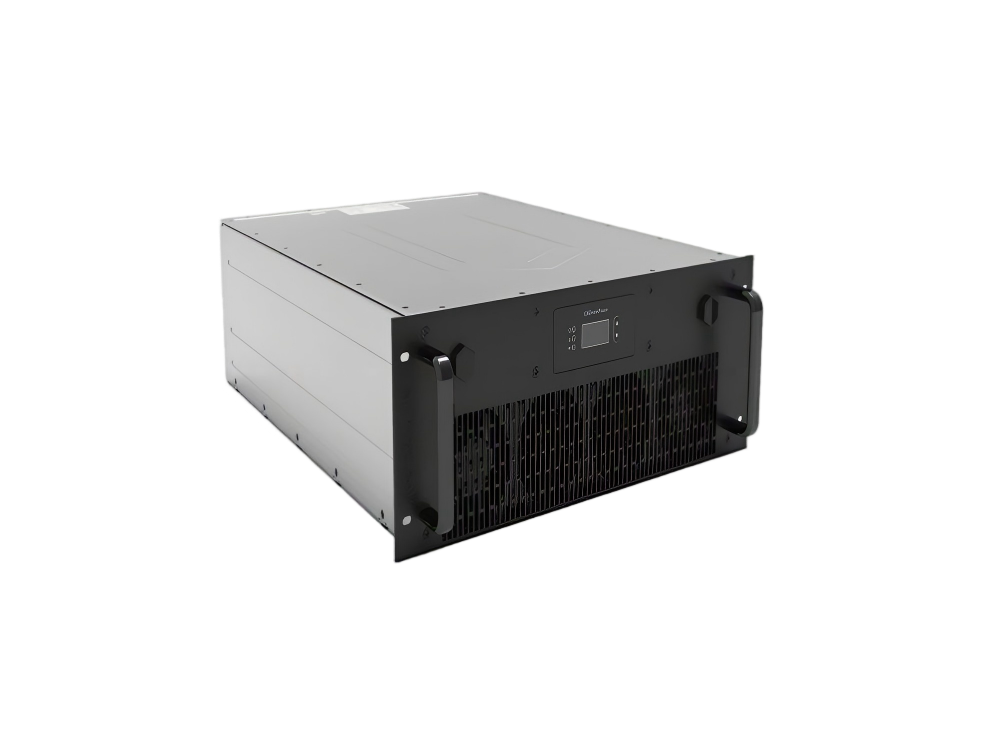

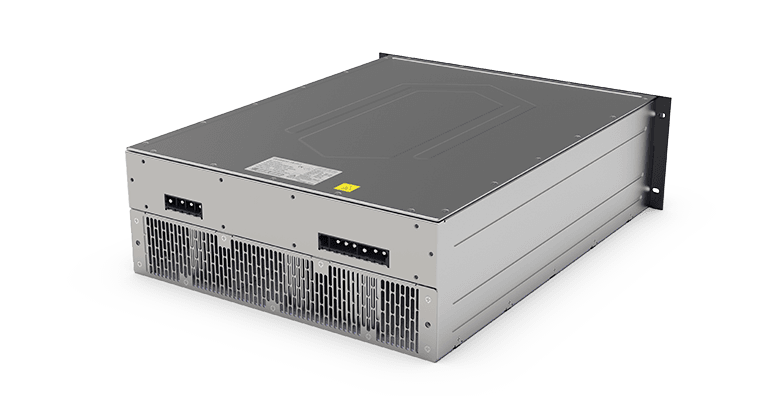

UUGreenPower UR100040-IP65（EU）40kW IP65 DC Charging Module

Product Introduction

UR100040-IP65（EU） DC Charging module is a high performance charging module designed by UUGreenPower, especially for harsh environment. Protection level up to IP65, widely used in high temperature, high humidity, high salt fog, rain water condensation and other terrible environments; can greatly simplify the protective design requirements of charging station, reduce the design cost; high reliability, maintenance free, 5-year warranty, greatly reducing the daily maintenance and TCO.

Technical Specification

Environmental

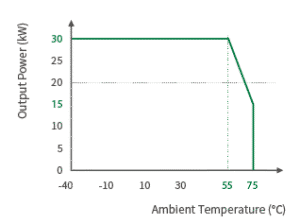

Operating temperature	-30℃~75℃,derates from 55℃
Overtemperature protection	On temperature >75°C±4°C or <-30°C±4°C, module will shut down automatically
Storage temperature	– 40°C~85°C
Humidity	≤95% RH, without condensation
Atmospheric pressure/ Altitude	79kPa~106kPa

AC Input

Input voltage	260VAC~530VAC
Input frequency	55±10Hz
THD	≤5%
Power factor	Rated output load PF ≥ 0.99
Max. input current	<80A
Input under voltage protection	255±5V, backlash≥15V
Input over voltage protection	530±5V, backlash≥15V
Input Power Derating	260±5V

DC Output

Rated output	1000V/40A

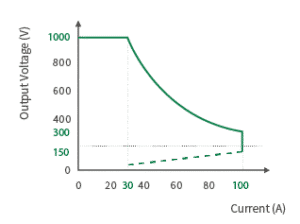

Constant power voltage range	40kW (300V~1000V)
Output voltage range	150V~1000V
Output current range	0~133.3A
Output over voltage protection	1010±5V
Output under voltage alarm Constant	140±2V
Short circuit protection	Short circuit retraction constant current output is adopted in case of short circuit, which can be recovered automatically
Voltage stabilized accuracy	≤±0.5%
Load sharing	≤±3%
Max. startup overshoot	≤±1%
Current stabilized accuracy	≤±1%
Startup time	1s
Efficiency	Highest efficiency>96%, rated efficiency>95%
